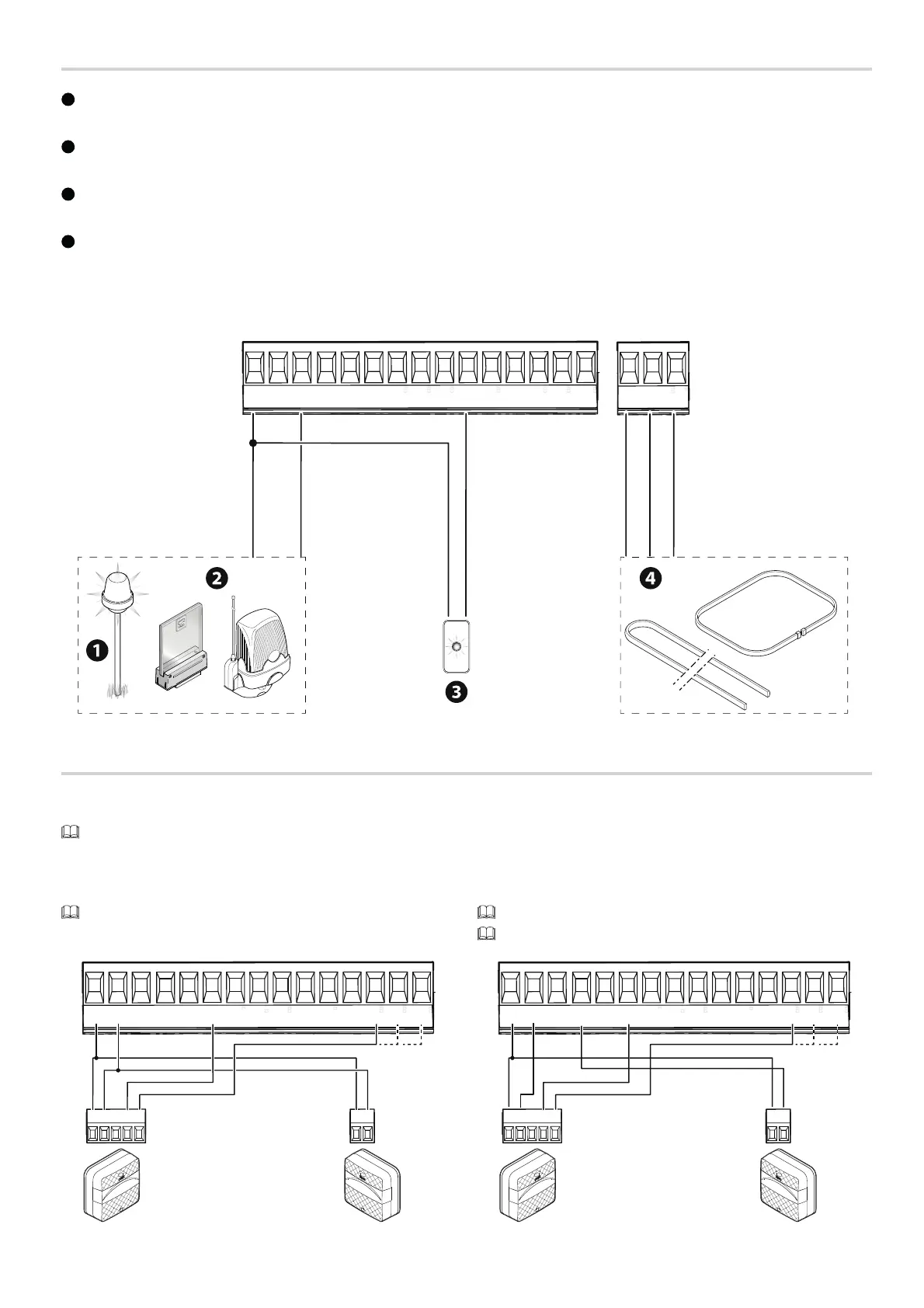

Signalling devices
1
Additional light
It increases the light in the manoeuvring area.
2
Additional flashing beacon
It flashes when the operator opens and closes.
3
Operator status warning light
It notifies the user of the operator status.
4
RGB LED strip and/or RGB crown
If the red LEDs are flashing, the operator is moving.
If the green LEDs are on, the operator is open.
If the red LEDs are on, the operator is closed.
If the red LEDs are flashing quickly, the inspection hatch is open, the gearmotor is released or the boom has dropped away.
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
+RG
1
3
Safety devices
Connect the safety devices to the CX, CY and/or CZ inputs (NC contacts).
During programming, configure the type of action that must be performed by the device connected to the input.
If contacts CX, CY and CZ are not used, they must be deactivated during programming.
DELTA photocells
Standard connection
Multiple photocell pairs can be connected.
DELTA photocells
Connection with safety test
Multiple photocell pairs can be connected.
See function [F5] Safety devices test.
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
+
10
-
11 NO C NC
+
10
-
11
RX TX
10 11 E1 TS 1 2 3 3P 4 5 7 2 CX CY CZ
+
10
-
11 NO C NC
+
10
-
11
RX TX
