Chapter 3
3-30

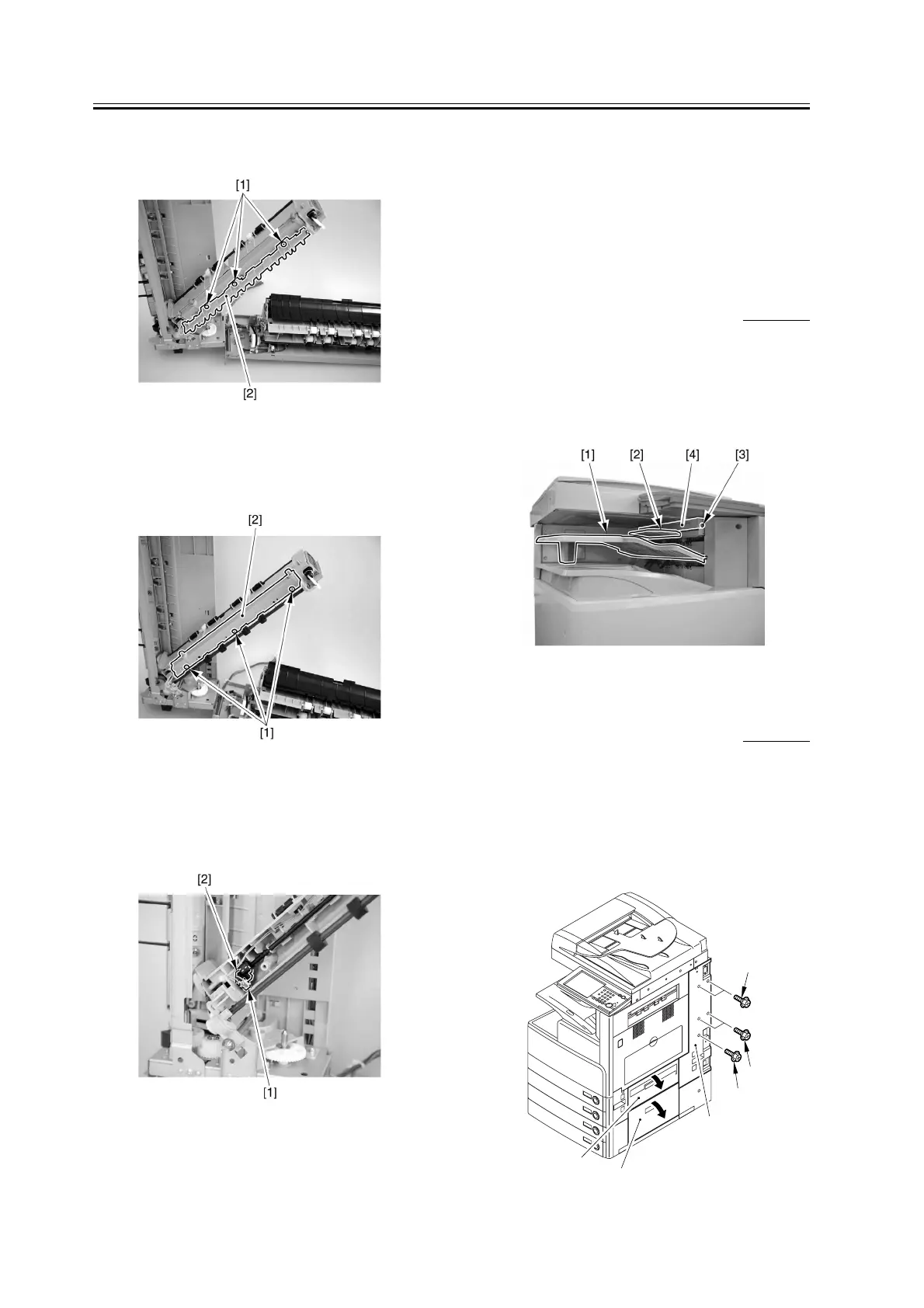

5) Remove the 3 screws [1], and detach the cover [2].
F-3-131
6) Remove the 3 screws [1], and detach the cover [2].
F-3-132
7) Disconnect the connector [1], and detach the No. 2
delivery sensor [2].
F-3-133
3.4.2 Delivery Tray 2 Paper Level
Sensor
3.4.2.1 Removing the Inside
Delivery Tray, Reversal
Guide, and Inside Upper
Cover
0007-6209
1) Remove the inside delivery tray [1].
2) Remove the reversing guide [2].
3) Remove the screw [3], and detach the inside upper
cover [4].
F-3-134
3.4.2.2 Removing the Right
Cover (rear)
0007-6210
1) Open the pedestal right door [1]. (if equipped with
a 2-Cassette Pedestal-Y2)
2) Open the right lower door [2].
3) Remove the 5 screws [3], and detach the right cover
(rear) [4].
F-3-135
[1]
[2]
[3]
[3]
[3]
[4]
