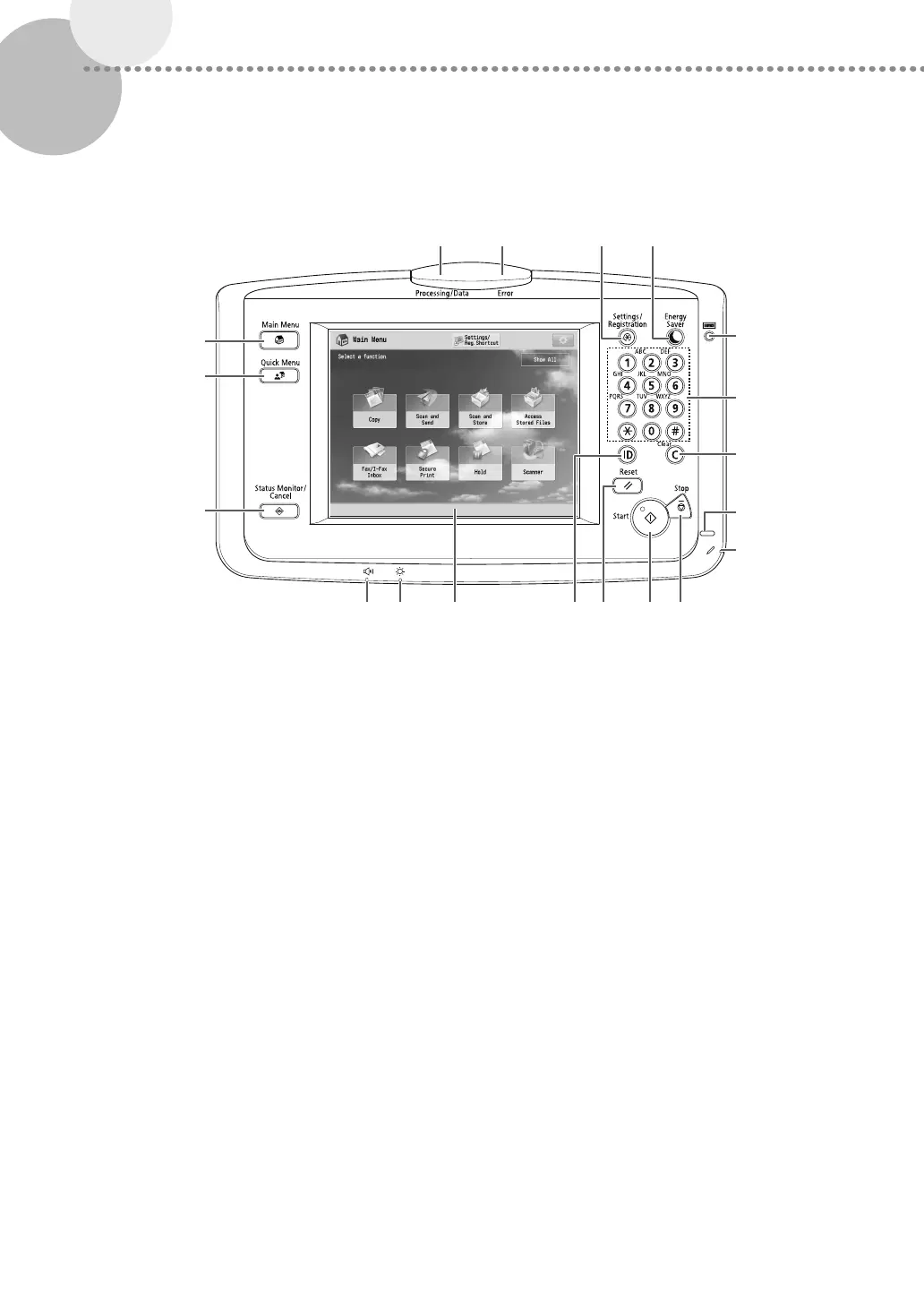

Control Panel (Upright Control Panel-G1)
12 34
5
6
7
8
9
10111213141516
17
18
19
1 Processing/Data Indicator
Blinks green when the machine is performing
operations, and maintains a steady green light
when received data is stored in memory.
2 Error Indicator
Blinks or lights if there is an error in the machine.
When the Error indicator blinks, follow the
instructions that appear on the touch panel display.
When the Error indicator maintains a steady red
light, contact your local authorized Canon dealer.
3 Settings/Registration key
Press to register and specify settings.
4 Energy Saver key
Press to set the Energy Saver mode or Sleep mode.
The mode activated after pressing the Energy
Saver key can be selected beforehand. This key
lights when the machine enters either mode. To
reactivate the machine, press this key again.
5 Counter Check key
Press to display the copy and print count totals.
6 Numeric keys
Press to enter numerical values.
7 Clear key
Press to clear entered values or characters.
8 Main Power Indicator
Lights when the main power is turned ON.
9 Edit Pen
Use when operating the touch panel display, such
as to enter characters.
10
Stop key
Press to stop a job in progress.
11
Start key
Press to start an operation, such as scanning or
copying.
To Next Page
