Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

• See the user’s manual of each device for details about its connections.

• Contact your dealer for details about its connections.

• In the connections shown below, some cables may not be included with the projector. They are

commercially available from electronics stores.

Connecting a computer or monitor

Connecting a computer

The projector provides a PC input terminal that allows you to connect it to both IBM

compatibles and

Macintosh

computers. A Mac adapter is needed if you are connecting legacy version Macintosh

computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied Computer cable and connect one end to the D-Sub output terminal of the computer.

2. Connect the other end of the Computer cable to the COMPUTER-1 or COMPUTER-2 signal input

terminal of the projector.

3. If you wish to make use of the projector speaker in your presentations, take a suitable audio cable and

connect one end of the cable to the audio output terminal of the computer, and the other end to the

AUDIO IN terminal of the projector.

4. If you wish, you can use another suitable audio cable and connect one end of the cable to the AUDIO

OUT terminal of the projector, and the other end to your external speakers (not supplied).

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See

"Adjusting the sound" on page 44 for details.

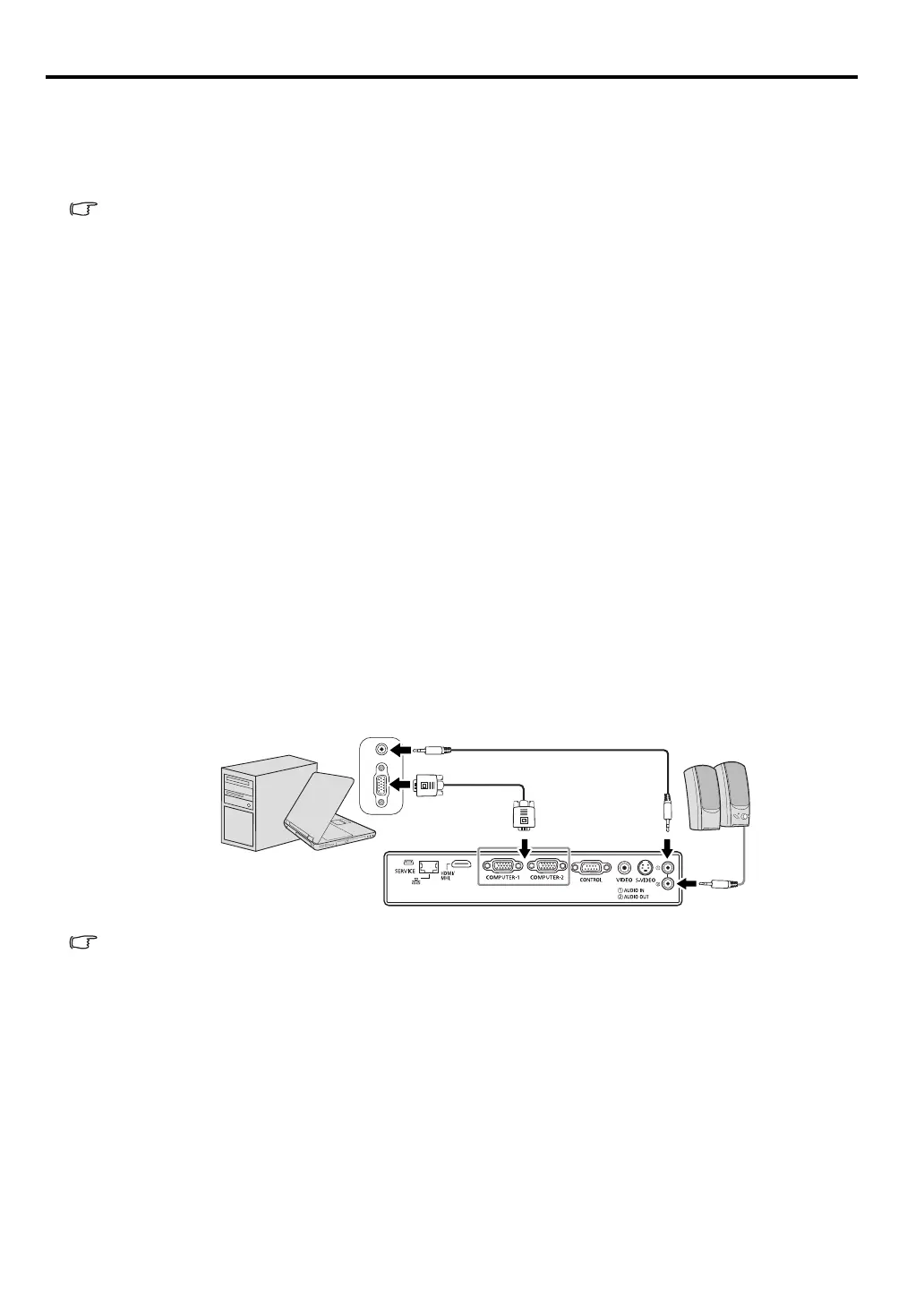

The final connection path should be like that shown in the following diagram:

Many notebooks do not turn on their external video ports when connected to a projector. Usually a

key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key

labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the

labeled function key simultaneously. Refer to your notebook's documentation to find your

notebook's key combination.

• When you use a longer Computer cable instead of the provided cable, the image may not be

projected correctly.

• Some computers require additional connectors or analog RGB output adapters to be

connected with this projector.

Notebook or desktop computer

Computer cable (supplied)

Audio cable (option)

Speakers

Audio cable

(option)
