Phys. Input
ARC
HD1
HD2
HD3
OPT
COA
LIN
Bluetooth
®
Network (WiFi/Ethernet)
OSD
ARC
HDMI1
HDMI2
HDMI3
OPT
COAX1
ANALOG
BT
NETWORK
Name (display indication)
TV
BDP
SAT
PS
CD
DVD
AUX
BT
NET
Note: The physical inputs have the following designations, (which you can match to the connected source at any time, except for
BT and NET):
Note: The eARC/ARC function can be used at any time with the Amp 5�1 and does not need to be activated or deactivated�
For your TV to support the eARC / ARC function it must have at least one HDMI® input with enhanced Audio Return Channel
(eARC) / Audio Return Channel (ARC)� The CEC function must be activated� For more information please consult the
operating manual of your TV�

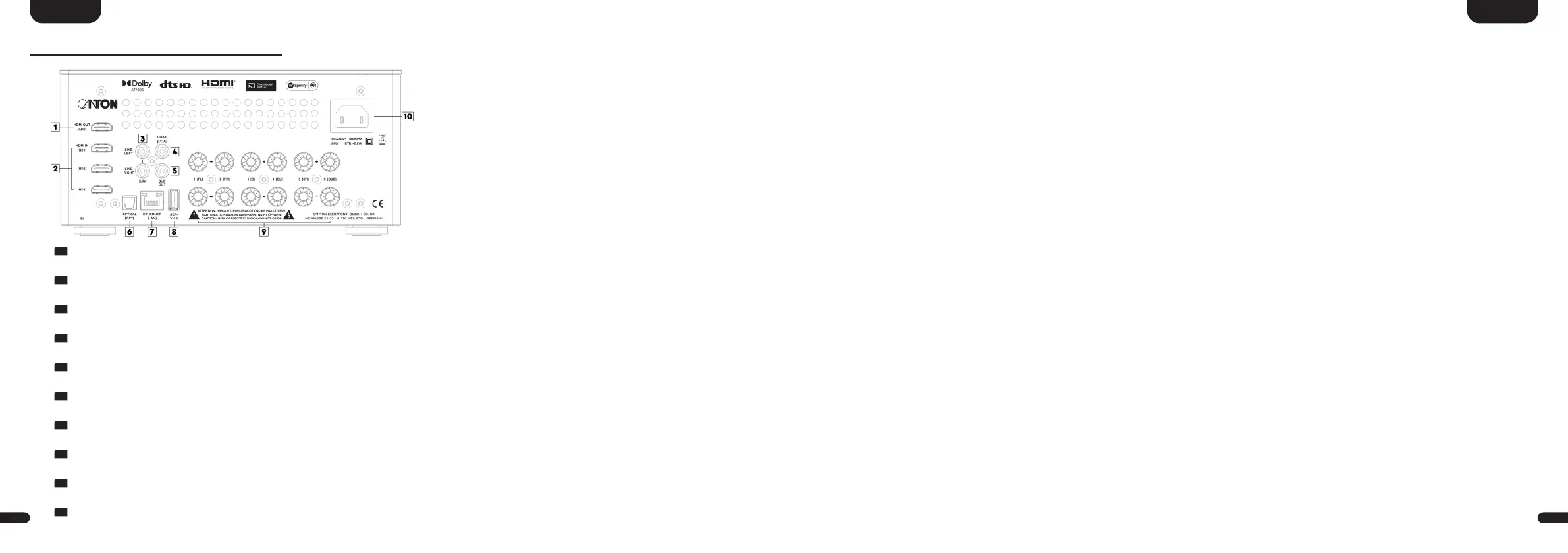

Connection Terminal
1
HDMI
®
Output (HDMI
®
with 3D, 4K, eARC/ARC, HDCP 2�2, CEC, HDR)
For the connection with the HDMI
®
(eARC / ARC) input of your TV�
2
HDMI
®
Inputs (3x HDMI
®
with 3D, 4K, HDCP 2�2, CEC, HDR)
For the connection with the HDMI
®
Output of your digital source devices�
3
LINE L/R (AUX) (2x RCA, max� 2Vrms)
For the connection with the analog line output of your source device�
4
COAXIAL (COA) Input (RCA, max� 96kHz)
For the connection with your (digital) coax audio output of your TV or digital source device�
5
SUB OUT (RCA, max� 2Vrms)
For connection with an active subwoofer�
6
OPTICAL IN (OPT) (TOSLINK, max� 96kHz)
For the connection with your (digital) optical audio output of your TV or digital source device�
7
ETHERNET (LAN) (RJ45 Socket, 8-pole)
For the connection with a network router via ethernet cable�
8
SERVICE CONNECTOR (USB A Socket, no audio, no charging)
Used for the Canton customer service only�
9
Speaker Terminal (Screw terminal, max� 6mm
2
)
For the connection with passive loudspeakers and/or a passive subwoofer�
10
POWER INPUT (IEC C18, 100–240V~, 50/60Hz, 400W)
For connection with the Mains�
Note:
eARC is only available on devices of the
second generation (Amp 5�1 S2)�
