Carrier 25HHA4 User Manual

6
DIMENSIONS -- INDOOR
Drain pipe
connector
Refrigerant pipe
connector
Fresh air intake (
Φ75mm)
W
H
D
W
H
Cassette Grille
Cassette Body
A150291

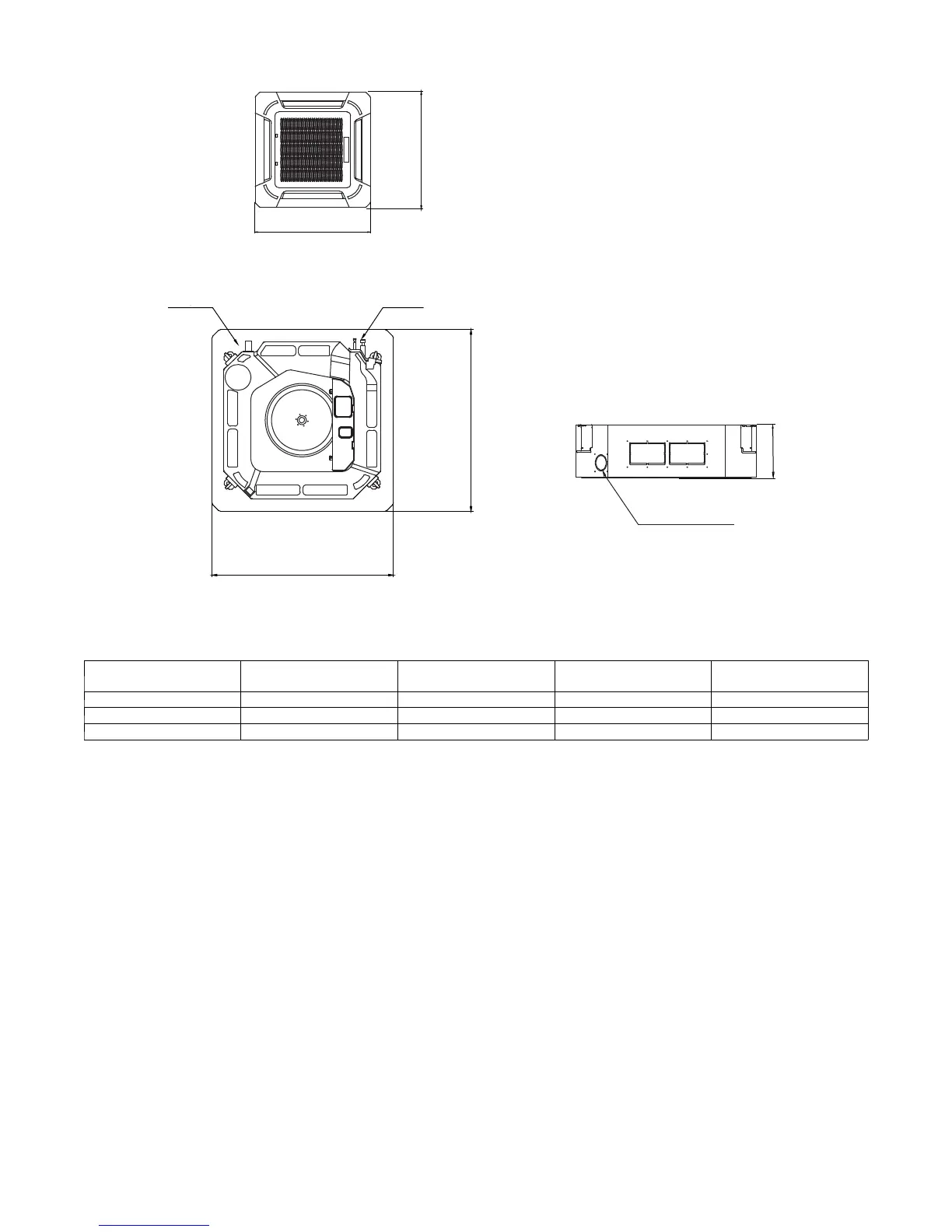

Fig. 2 – 40MKC**C, 40MKQ**C Unit and Panel Dimensions
Table 5—Dimensions Indoor
Indoor Unit Size
BTU/Hr
Height (H)
in (mm)
Width (W)
in (mm)
Depth (D)
in (mm)
Operating Weight
lb (kg)
18K 33.1 (840) 33.1 (840) 8.1 (205) 54.0 (24.5)
24K – 34K 33.1 (840) 33.1 (840) 11.3 (287) 68.6 (31.1)
Cassette Panel 37.4 (950) 37.4 (950) 2.2 (55) 11.0 (5)

Carrier 25HHA4 Specifications

General

Type	Heat Pump
Refrigerant	R-410A
Compressor Type	Scroll
Voltage	208/230V
Phase	1
Sound Level (Outdoor Unit)	72 dB
