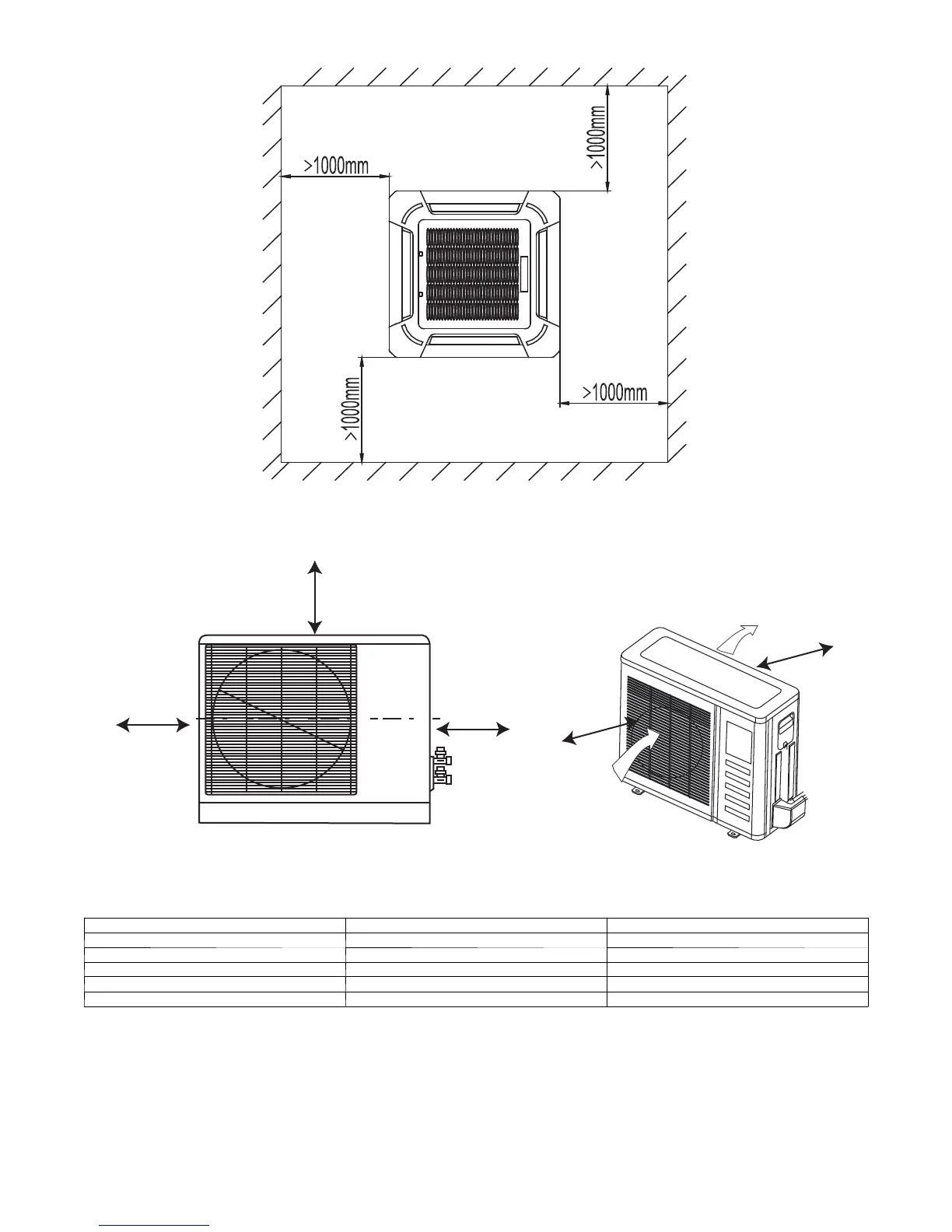

CLEARANCES -- INDOOR
A150152
Fig. 4 – 40MKC**C, 40MKQ**C Unit Clearance
CLEARANCES -- OUTDOOR
A
D
B
Air-inlet
Air-outlet
C
E
A08436
Fig. 5 – Outdoor Unit Clearance
Table 7 —Clearances Indoor
UNIT Coil Facing Wall -- in. (mm)
Fan Facing Wall -- in. (mm)
A 24 (610)
24 (610)
B 24 (610)
24 (610)
C 20 (508)
6 (152)
D 6 (152)
8 (203)
E 6 (152)
20 (508)
