DISASSEMBLY INSTRUCTIONS SIZE 36
Screws of big
handle
(3 screws)
No. Part name Procedures Remarks
1 Panel plate
How to remove the panel
plate.
1) Stop the air conditioner
and turn off the power
breaker.
2) Remove the big handle
first, then remove the top
cover (7 screws).
3) Remove the front panel
screws (11 screws).
(4) Remove the right side
panel screws (13).
\
ƻ
2
ƻ
4
ƻ
3

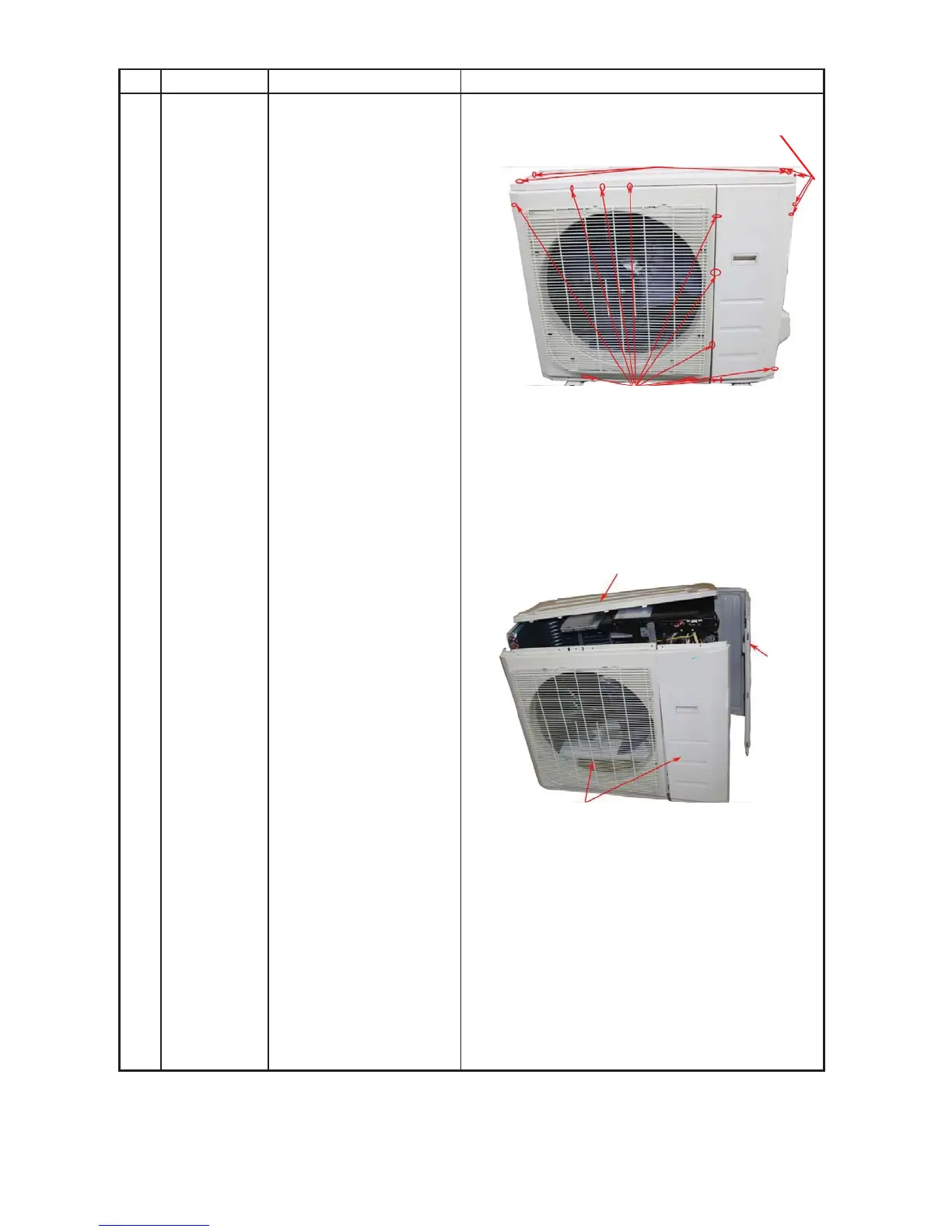

Screws of front panel (11 screws)
Screws of top panel(3screws,1screws is under the big handle)
4 screws of big handle
