CLEARANCES − OUTDOOR
A
D
B
Air-outlet
Air-inlet
C
E
A07894

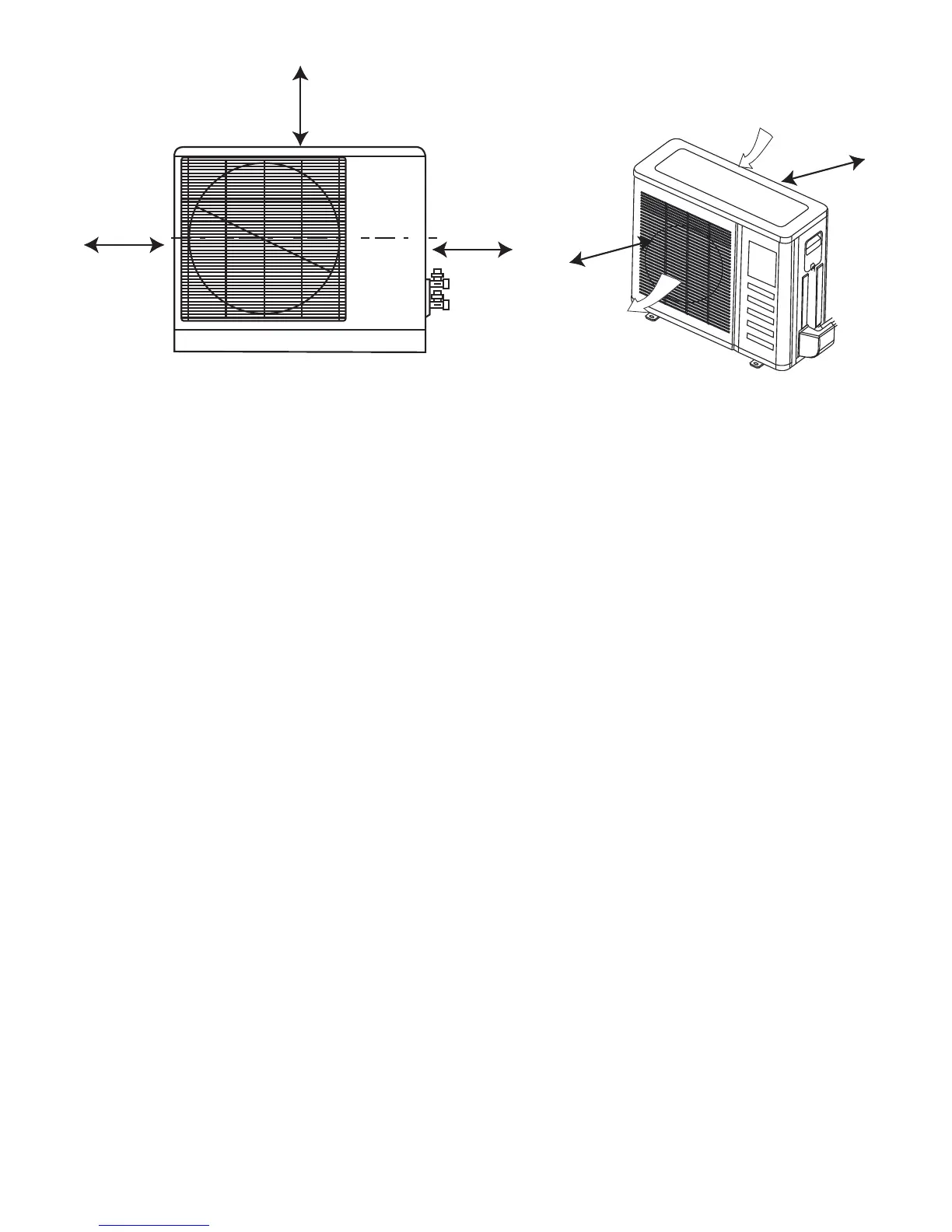

Fig. 3 – Outdoor Unit Clearance
UNIT
MINIMUM VALUE
in. (mm)
A 24 (610)
B 24 (610)
C 24 (610)
D 4 (101)
E 4 (101)
NOTE: Outdoor Unit must be mounted at least 2in (50mm) above the maximum anticipated snow depth.
