4

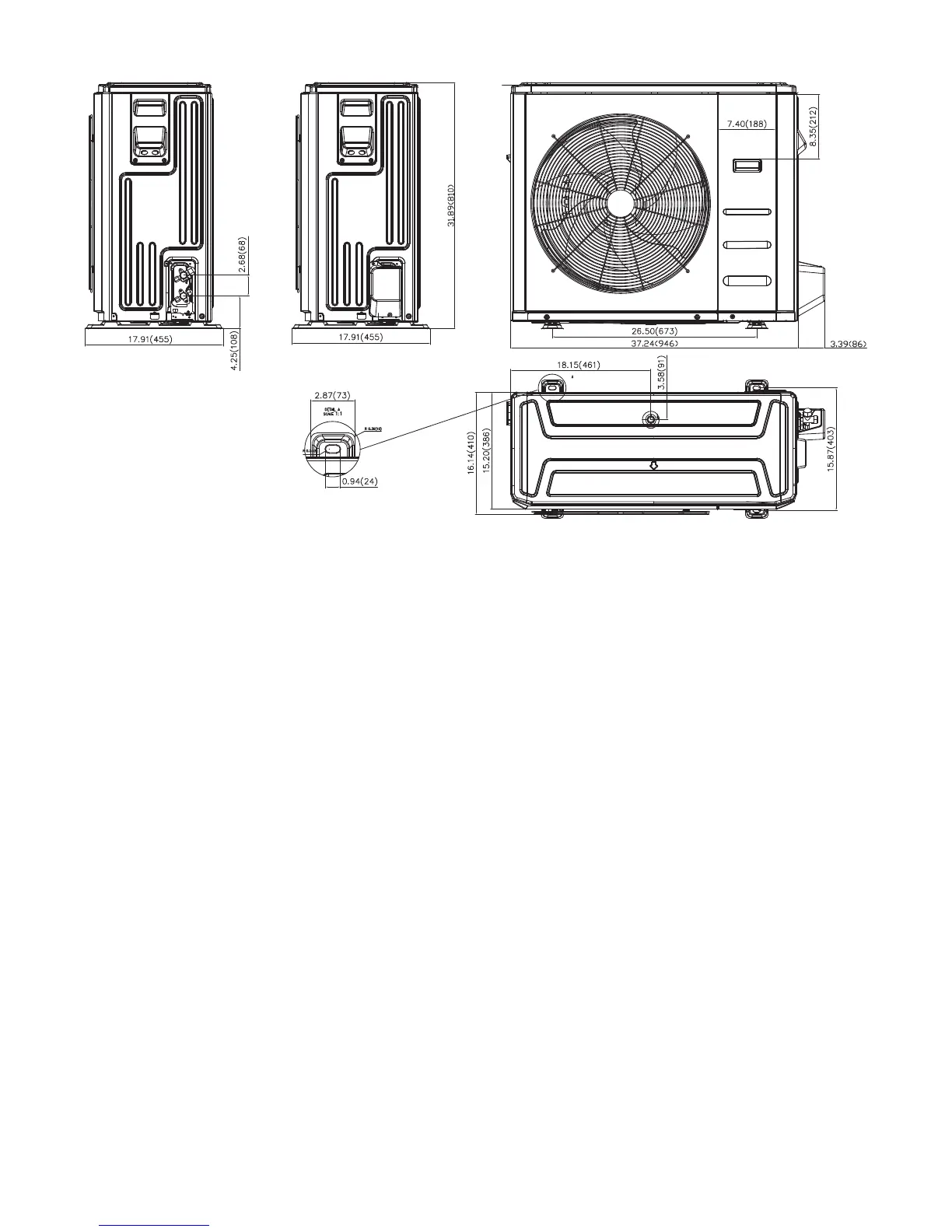

DIMENSIONS − OUTDOOR
L1
L2
Fig. 1 – Sizes 36K
Table 3—Dimensions
UNIT SIZE WIDTH in (mm) DEPTH in (mm) HEIGHT in (mm) L1 in (mm) L2 in (mm)
OPERATING
WEIGHT lb (kg)
36K 37.24 (946) 16.14 (410) 31.89 (810) 26.50 (673) 15.87 (403) 136.47 (61.9)
