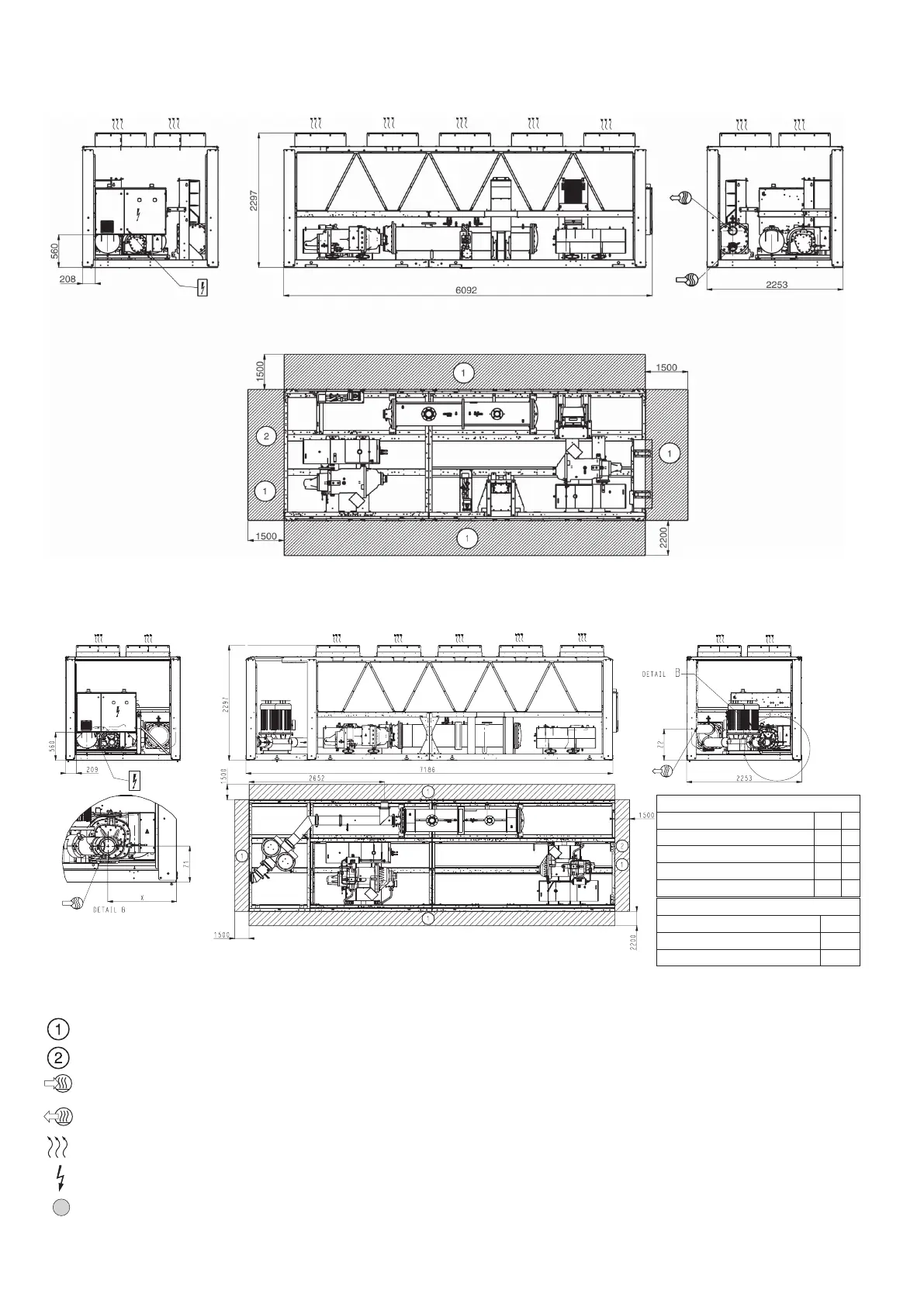

3 - DIMENSIONS, CLEARANCES
3.1 - 30XAV-ZE 401-501 without hydronic kit
3.2 - 30XAV-ZE 401-501 with hydronic kit
NOTES:
• Drawings are not contractually binding.
• Before designing an installation, consult the certied
dimensional drawings, available on request.
• For the positioning of the xing points, weight
distribution and centre of gravity coordinates please
refer to the dimensional drawings.
• If any unit(s) are close to walls, please refer to
chapters 3.8 - 3.9 - “Distance to the wall” of this
document to determine the space required.
Legend:
All dimensions are given in mm.
Required clearances for maintenance (see note)
Recommended space for evaporator tube removal
Water inlet for standard unit
For options 100A, 100C, 107 refer to the certied drawing.
Water outlet for standard unit
For options 100A, 100C, 107 refer to the certied drawing.
Air outlet – do not obstruct
Power supply and control connection
Control circuit connection for option 158
C
INLET
PUMP TYPE - UNIT X Z1
POMPE DOUBLE HP - XAVZE0401 / 0501 674 361
POMPE DOUBLE BP - XAVZE0401 / 0501 714 363
POMPE SIMPLE HP - XAVZE0401 / 0501 734 318
POMPE SIMPLE BP - XAVZE0401 / 0501 714 313
OUTLET
PUMP TYPE - UNIT Z2
DOUBLE / SIMPLE (HP - BP) - XAVZE0401 628
DOUBLE / SIMPLE (HP - BP) - XAVZE0501 613
