Cascade H Series User Manual

2

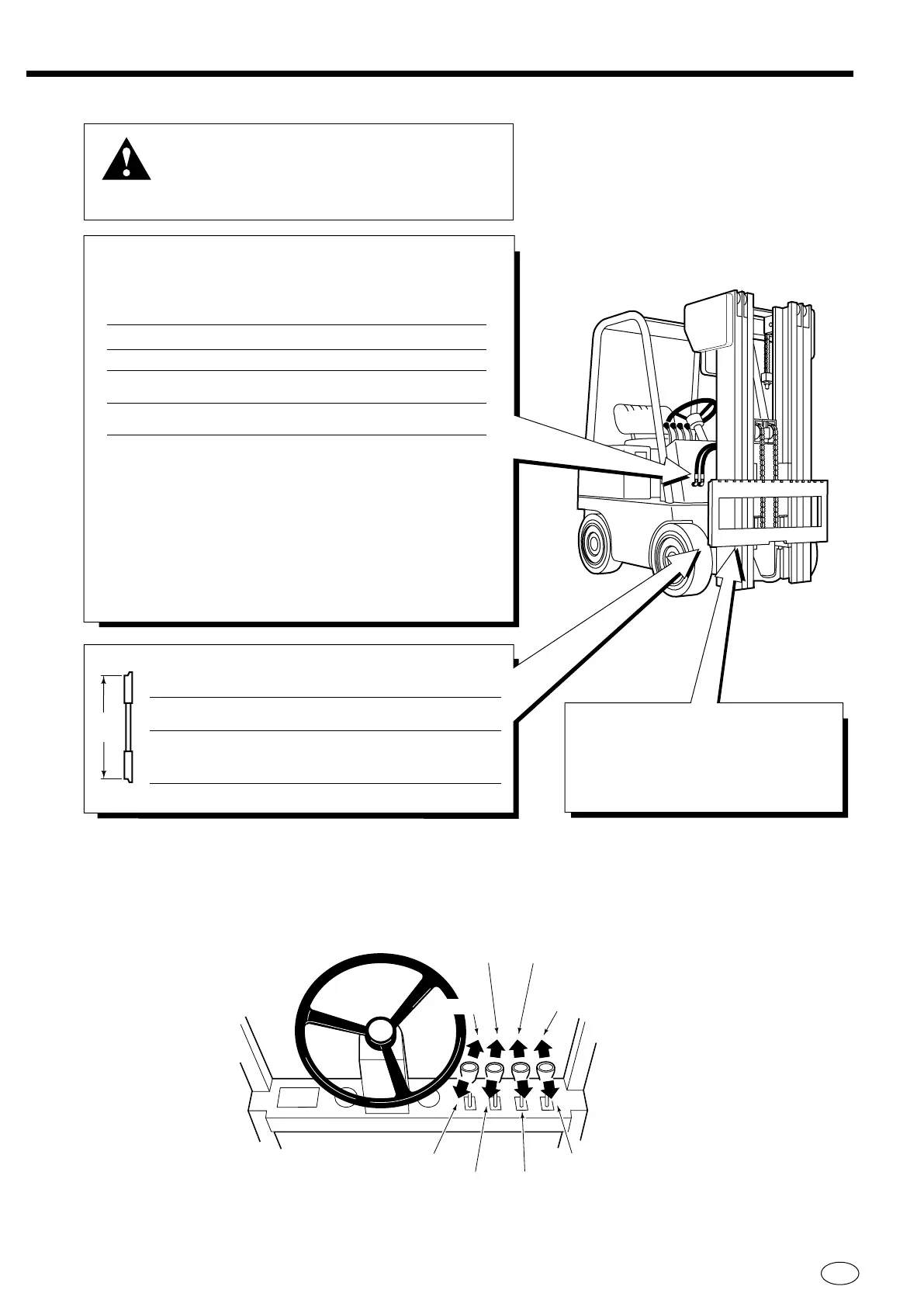

TRUCK REQUIREMENTS
6095756-R2 EN
GA0137.eps
Carriage Mount Dimension (A) ITA (ISO)
Minimum Maximum
Class II
Class III
Class IV
380.0 mm
474.5 mm
595.5 mm
381.0 mm
476.0 mm
597.0 mm
Truck Relief Setting
140 bar Recommended
160 bar Maximum
Truck Flow Volume
➀
22H–33H Min.
➁
Recommended Max.
➂
Rotate/Clamp 18 L/min. 37 L/min. 56 L/min.
Swing 4 L/min. 7.5 L/min. 12 L/min.
➀ Cascade H-Series Swing Frame Paper Roll Clamps are compatible
with SAE 10W petroleum base hydraulic fluid meeting Mil. Spec.
MIL-0-5606 or MIL-0-2104B. Use of synthetic or aqueous base
hydraulic fluid is not recommended. If fire resistant hydraulic fluid
is required, special seals must be used. Contact Cascade.
➁ Flow less than recommended will result in rotate speed less than
2 RPM.
➂ Flow greater than maximum can result in excessive heating,
reduced system performance and short hydraulic system life.
A
GA0028.eps
Carriage
Clean and inspect carriage bars for
damage and smoothness. Repair any
protruding welds or damaged notches.
WARNING: Rated capacity of the truck/attachment
combination is a responsibility of the original truck
manufacturer and may be less than that shown
on the attachment nameplate. Consult the truck
nameplate.
Auxiliary Valve Functions
Check for compliance with ANSI (ISO) standards.
GA0082.eps
Hoist Down
Hoist Up
Tilt
Forward
Tilt Back
Rotate
CCW
OR
Swing
Extend
Rotate
CW
OR
Swing
Retract
Release
Clamp
