- 18 -
7. DIAGNOSTIC OPERATION
7-1. To start the diagnostic program
1. Plug the power cord into an AC outlet.
2. Set the mode switch to "OFF" position.
3. While pressing the "Jounal feed " button,
turn the mode switch to "PRG" position.
4. Release the "Journal feed" button.
5. Input "99990000" and press "ST" ("#2" key).
6. Diagnostic program is executed.
7-2. Check item
The following test can be checked in the diagnostic test.
1. Key code test
2. Switch status test
3. Individul function test
7-3. Operation of each test
1. Key code test
When pressing a key, the machine displays
the following key code.

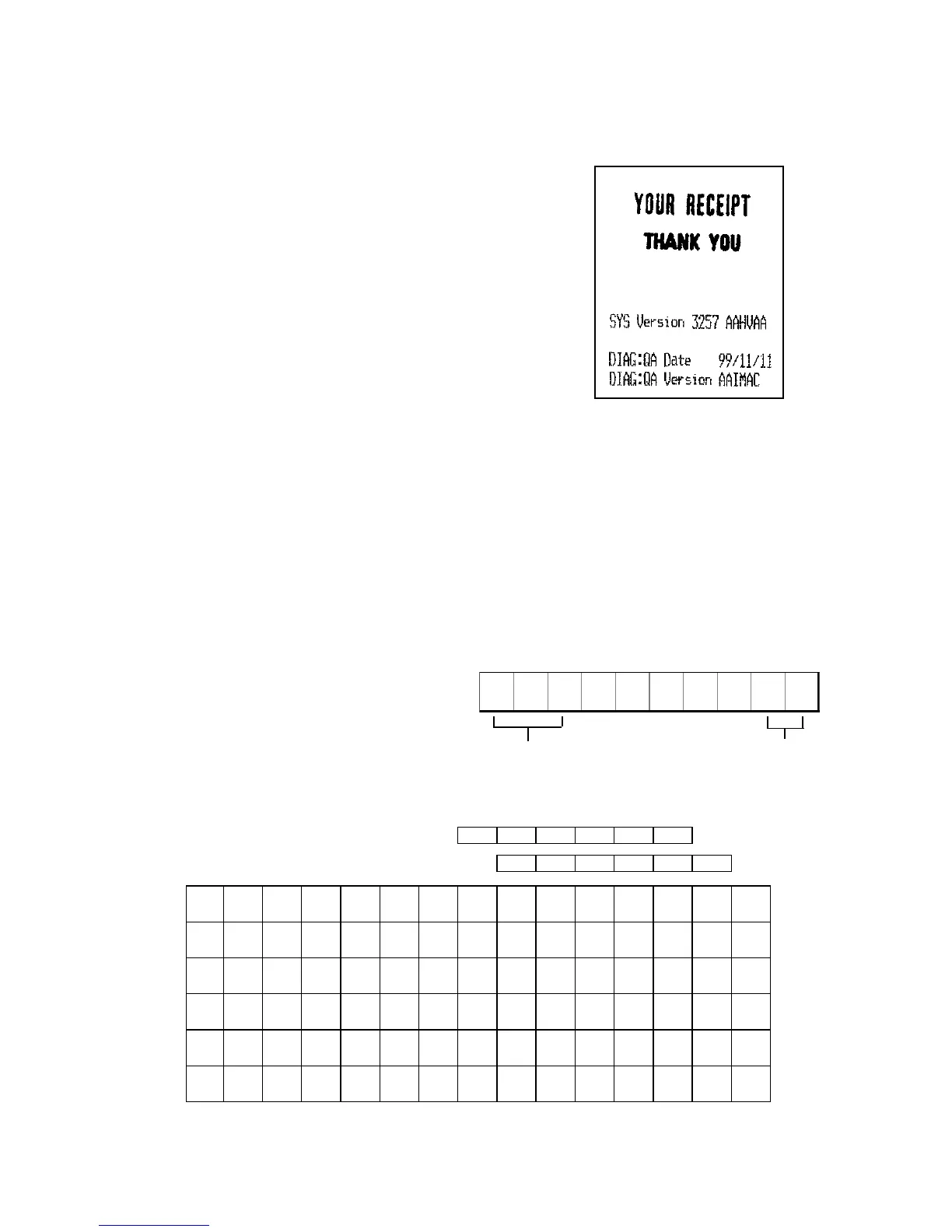

HARD KEY CODE TABLE
Hard key code
DISPLAY
Note: "014" button is work for "#2" key. "013" button is work for "#1" key.
XXX zz
Key borad information
11: Stroke Key
10: Stroke + Flat Key
01: Full Flat Key
089 090 091 092 093 094
095 096 097 098 099 100
RF JF 077 070 068 066 066 060 054 048 042 036 030 024 018
087 082 076 069 067 065 065 059 053 047 041 035 029 023 017
086 081 075 789064 058 052 046 040 034 028 022 015
085 080 074 456063 057 051 045 039 033 027 014 016
084 079 073 123062 056 050 044 038 032 026 020 021
083 078 072 0 11 12 061 055 049 043 037 031 025 019 013
