- 28 -
E : Error status
(01 : Framing error)
(02 : Over run error)
(04 : Parity error)
(40: Transmit/ Receive data error/ Data is not 55.)
(80 : Time out error)
Test procedure
1) Operate the send machine first. The send machine will wait the "C" signal (send
request) reception from the reception machine.
The send machine will wait the send request signal about 30 seconds. When it is over
30 seconds, the time out error will be printed on the receipt.
2) Operate the reception machine. Then, the both machines are communicated each
others. This time first block data wait time is 5 seconds. The total resend request time
is 5 time.
3) During communication waiting time, the display will show the "-" brinking on the most
left side digit of segment display. When the data is OK, the reception/transmission
packet number will be displayed on the segment display.
NOTE1: To stop this opeartion, press any or trun off the mode key switch.

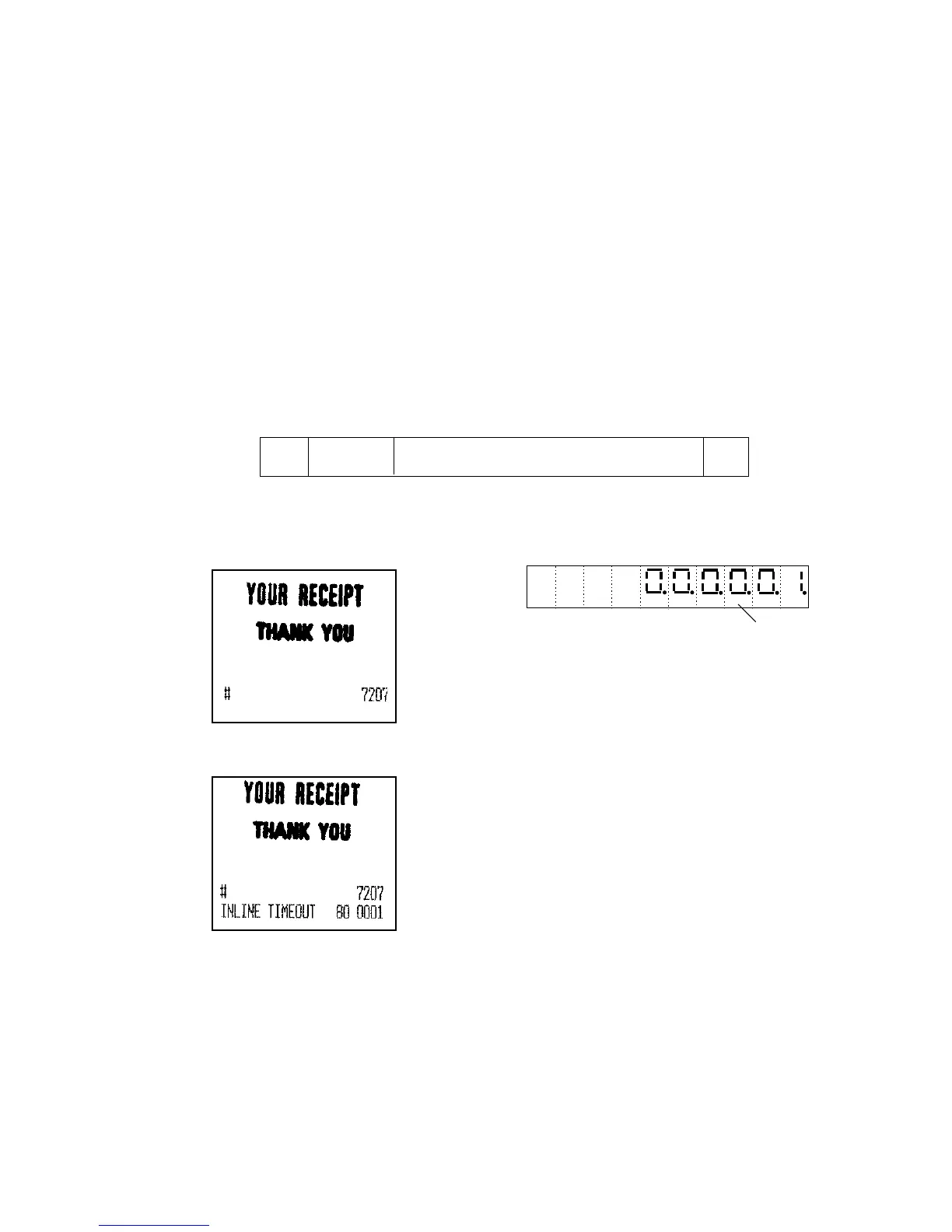

NOTE2: The send packet data format is as follows:
( Communication format is 8 bits, even parity, stop bit= 1bit fixed.)
[PRINT] [DISPLAY]
Normal End
Error End (Time out error)
Count data block
STX
03h
Block counter
2 bytes
Data (55h X 1,020 pcs.)
LRC
Total 1,024 bytes
7-6. To exit the diagnostic mode
To escape the diagnostic mode, execute INITIALIZE (MAC) operation.
