— 13 —
Removing the Mainboard
1. Remove the battery holder/battery pack (see page 9), separate the front and rear case assemblies (see page
10) and remove the 1D laser assembly (see page 12).
2. Remove screws 1 - 4 from the mainboard.
3. Carefully ease up the mainboard and release cables 5 & 6 from their locking collars.
4. Lift the mainboard , off the front case assembly.

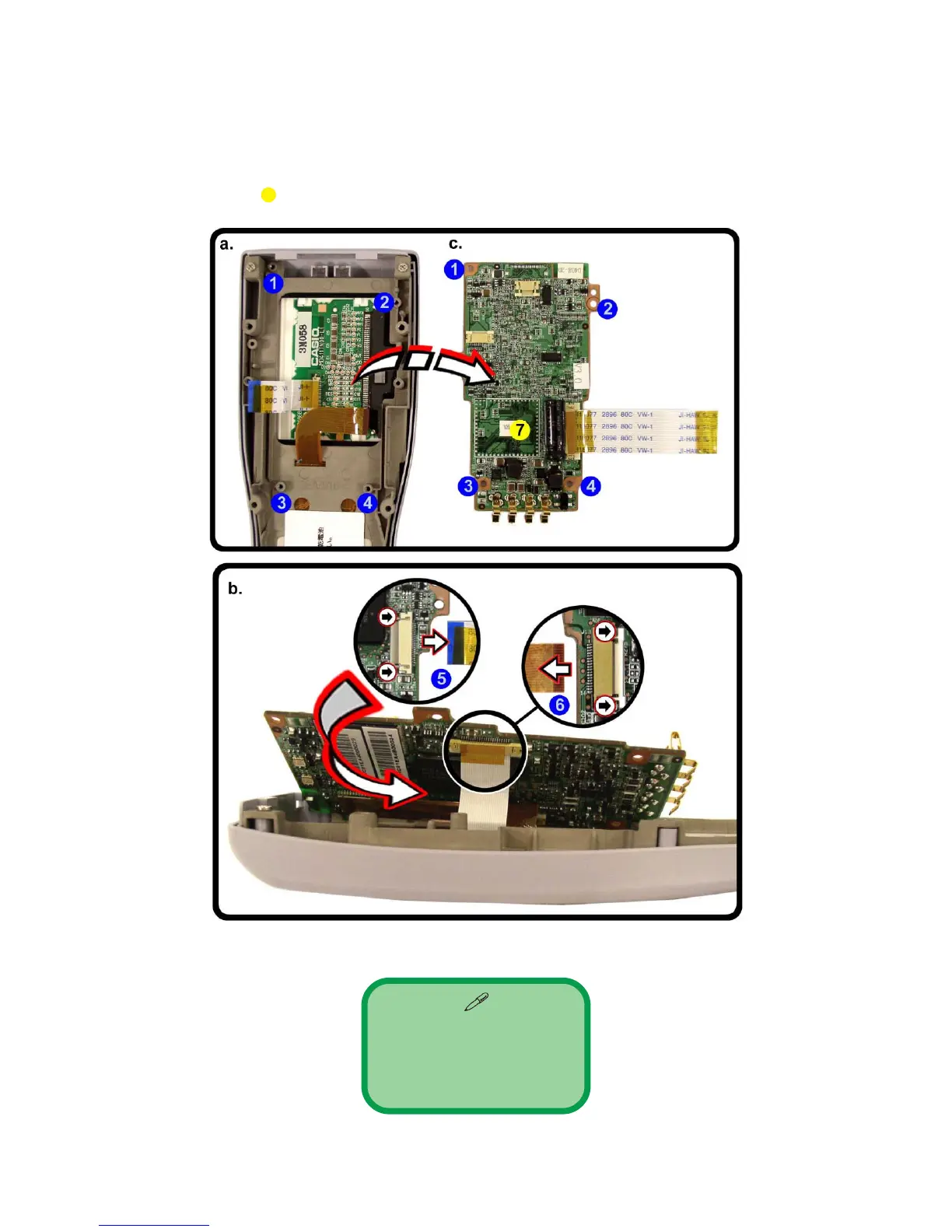

Figure 2 - 5 - Removing the Mainboard
7. Mainboard
• 4 Screws
7
