Removing the LCD
1. Remove the battery holder/battery pack (see page 9), separate the front and rear case assemblies (see page
10), remove the 1D laser assembly (see page 12), remove the mainboard (see page 13) and separate the
middle case from the front case (see page 14).
2. Carefully ease (there may be some tapes attached to the LCD) the LCD out of the middle case .

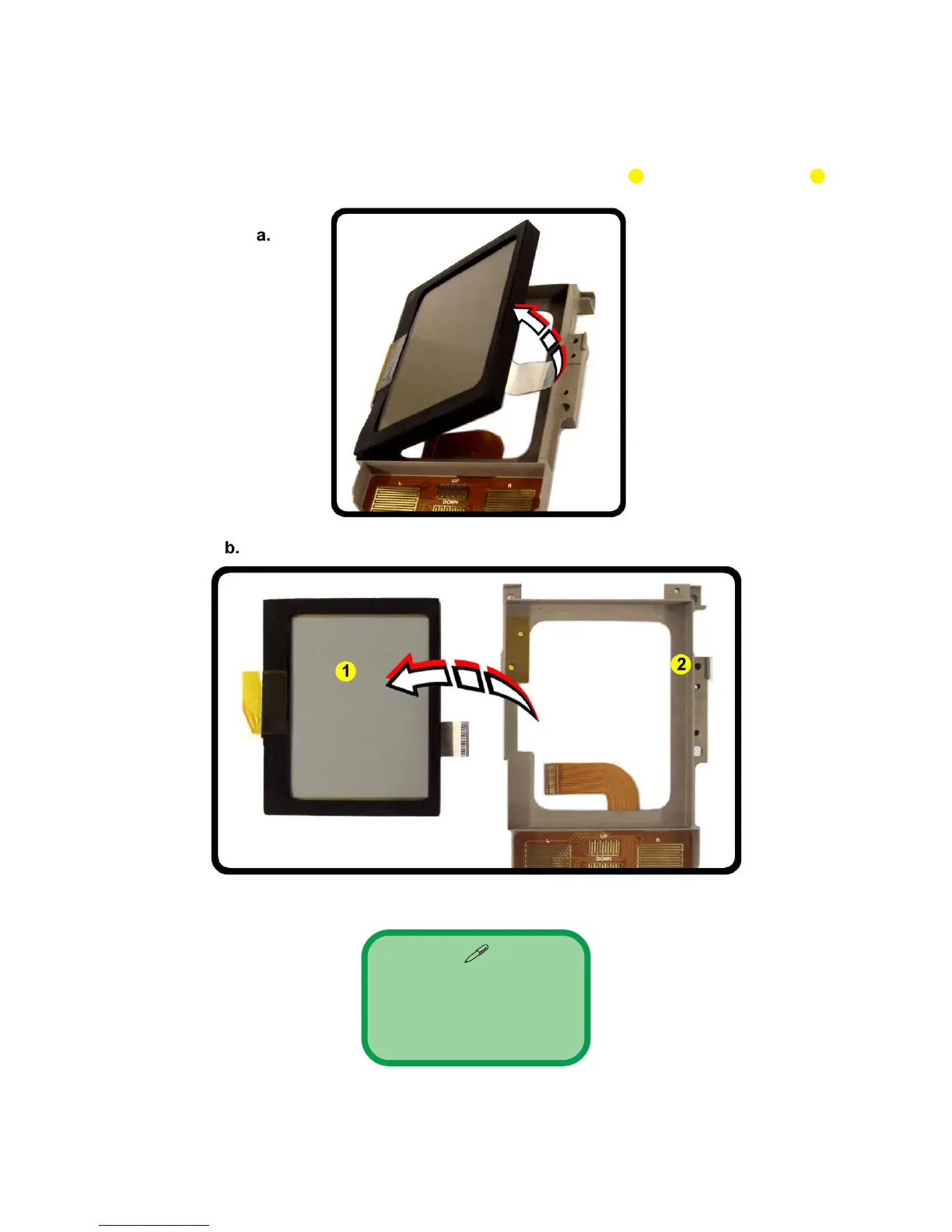

Figure 2 - 8 - Removing the LCD
1. LCD
2. Middle Case
