Casio IT-10M20 Hardware Manual

21

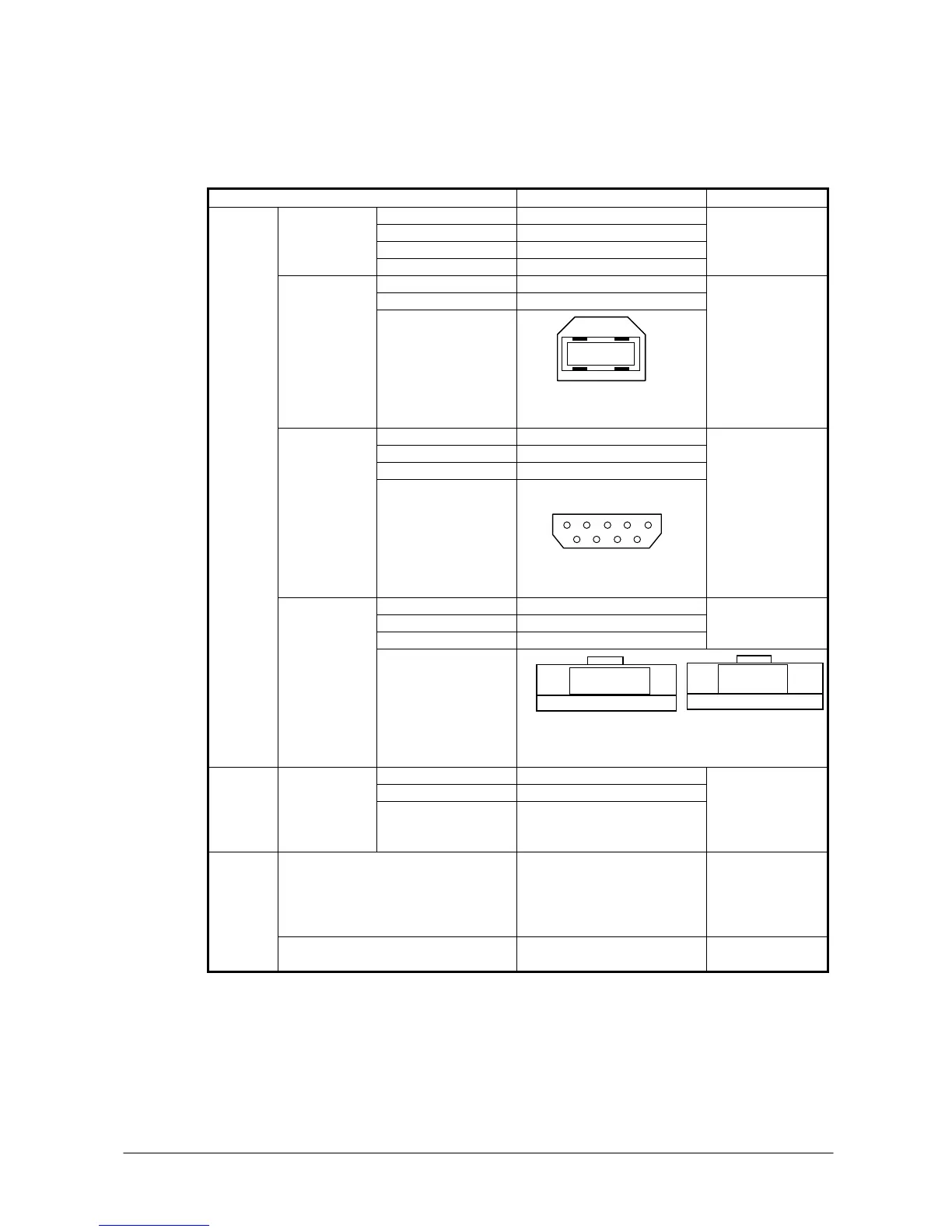

2.2 HA-C60IO/HA-C61IO
Table. 2.4
Item Specification Remark
Standard IrDA Ver. 1.1 compatible
Comm. method Half duplex
Synchronization Start/stop method
IrDA
Comm. speed 4 Mbps (maximum)
Applicable to
HA-C61IO only.
Standard USB Ver. 1.1 compatible
Comm. speed 12 Mbps (maximum)
USB
Connector
USB connector type B
1. VBus
2. –Data (D-)
3. +Data (D+)
4. GND
Comm. method Full duplex
Synchronization Start/stop method
Comm. speed 115.2 Kbps
RS-232C
Connector
D-Sub 9-pin (Female)
Comm. method Full duplex
Synchronization Start/stop method
Comm. speed 115.2 Kbps
Applicable to
HA-C61IO only.
Interface
RS-422
Connector
RJ-45 compatible (6 pins)
No. of LEDs 3
No. of display colors 2 (red, green)
Display Status LED
Display content
System operation status (“LINE”)
Comm. status (“DATA”)
Power status (“POWER”)
Applicable to
HA-C61IO only.
Refer to Chapter 2.4
“Status Indication
With LEDs”.
DIP switch 8 switches Refer to Chapter 2.3
“DIP Switch Setting
(For HA-C61IO).
Applicable to
HA-C61IO only.
Input
Detection switch for IT-10 Push switch Applicable to
HA-C61IO only.
Continue.
2
1
3
4
4
1
3
2
1
2
SG ER SD RD CD
5
4
3
2
1
9
8
7
6
CI CS RS D
5
4
3
2
1
6
OU
T
5
4
3
2
1
6
IN
RDI-
RDI+
SDO-
SDO+
RSO-
RSO+
RD0-
RDO+
SDI-
SDI+
RSI-
RSI+
6 5 4 3 2 1
6 5 4 3 2 1
