Casio IT-10M20 Hardware Manual

23

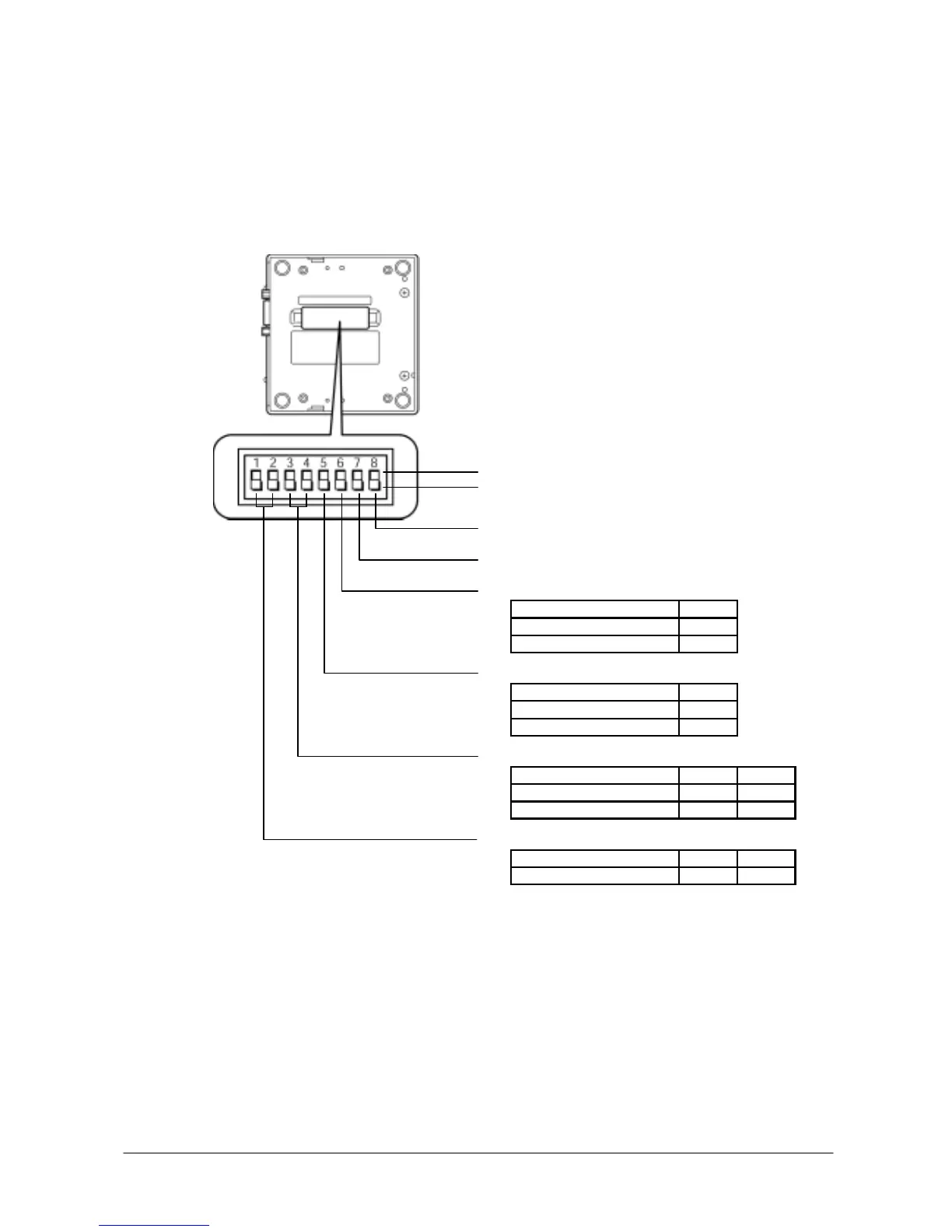

2.3 DIP Switch Setting (For HA-C61IO)
The DIP switch is located on the rear side of the Bridge Satellite Cradle (HA-C61IO). Change the ON/OFF
settings according to your required system configuration. The new settings do not go into effect until the power
switch is turned off and then back on again.
ON (Upper side)
OFF (Lower side)
Not used (always OFF)
Not used (always OFF)
Host Computer Interface
Switch Number 6
RS-232C OFF
USB ON *
Daisy Chain Termination
Switch Number 5
Intermediate Connection OFF
Dais
y
Chain Off/Terminatio
n
ON *
Connection
Switch Numbers 3 4
Host Computer OFF * OFF *
Daisy Chain ON OFF
Inter-Cradle Data Rate (RS-422 Comm. speed)
Switch Numbers 1 2
115, 200 bps ON * OFF *
Note:
Other DIP switch settings are used for testing and inspection purposes. Because of this, you should never use any
DIP settings other than those described above.
Fig. 2.2
* : Default setting.
