39

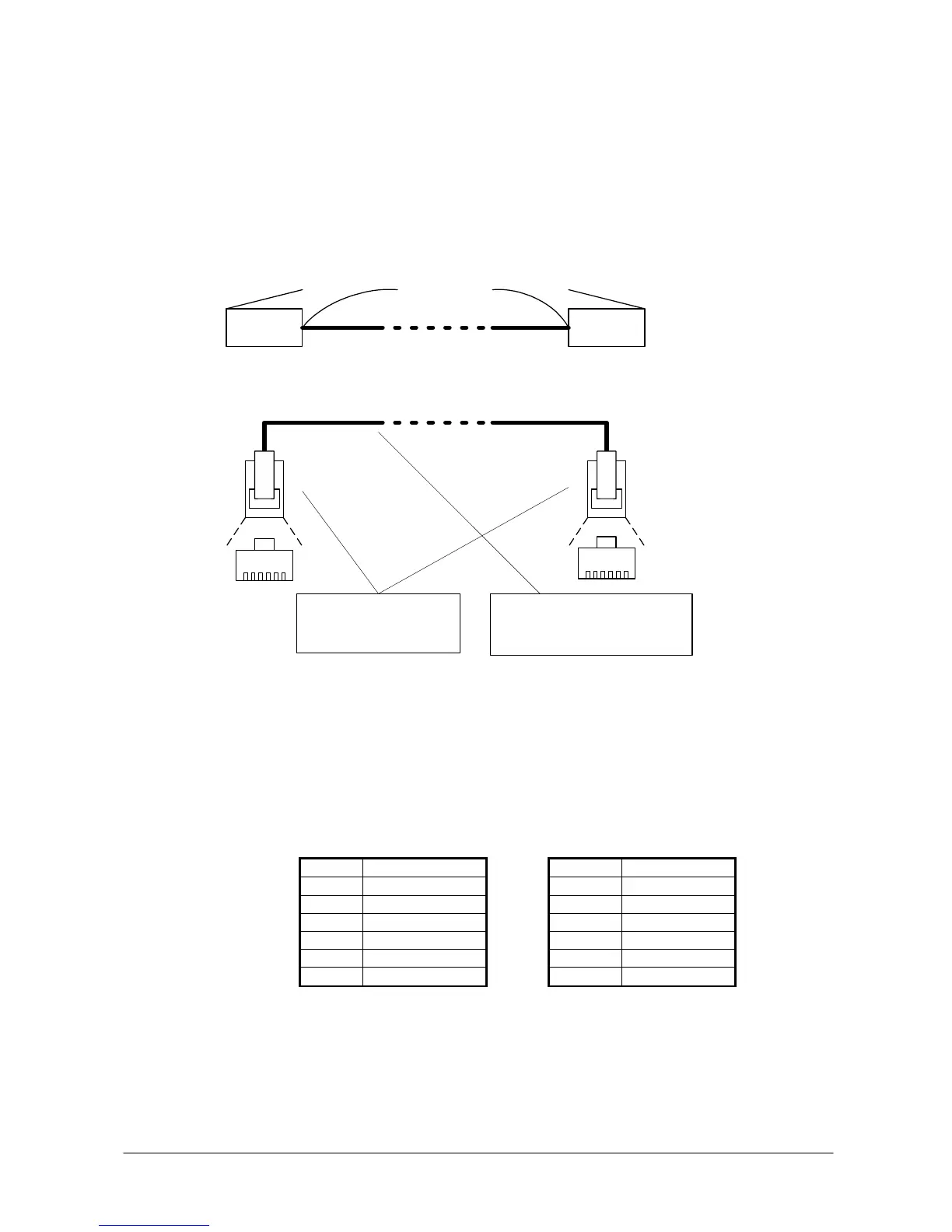

5.2 For Chain Connection And Long Length
Length; 1 meter or longer
1 2 3 4 5 6
Max. 1,000m
Modular plug compatible
with 6/6-6 FR SYK50 by
Sanyo Industrial Co.
1 2 3 4 5 6
Cable compatible with SK-UTP
100M3P by Sanyo Industrial Co.
Pin layout diagram of cable for chain connection and long distance (pin-to-pin straight/twist-pair connection)
Wiring
Pin no. Signal Pin no. Signal
1 IRS+ 1 ORS+
2 IRS- 2 ORS-
3 ISD+ 3 OSD+
4 ISD- 4 OSD-
5 ORD+ 5 IRD+
6 ORD- 6 IRD-
Cradle at lower
position under the
chain connection
Cradle at higher
position under the
chain connection
Fig. 5.3
XXXXX
To Next Page
