38
5. Cable Specifications

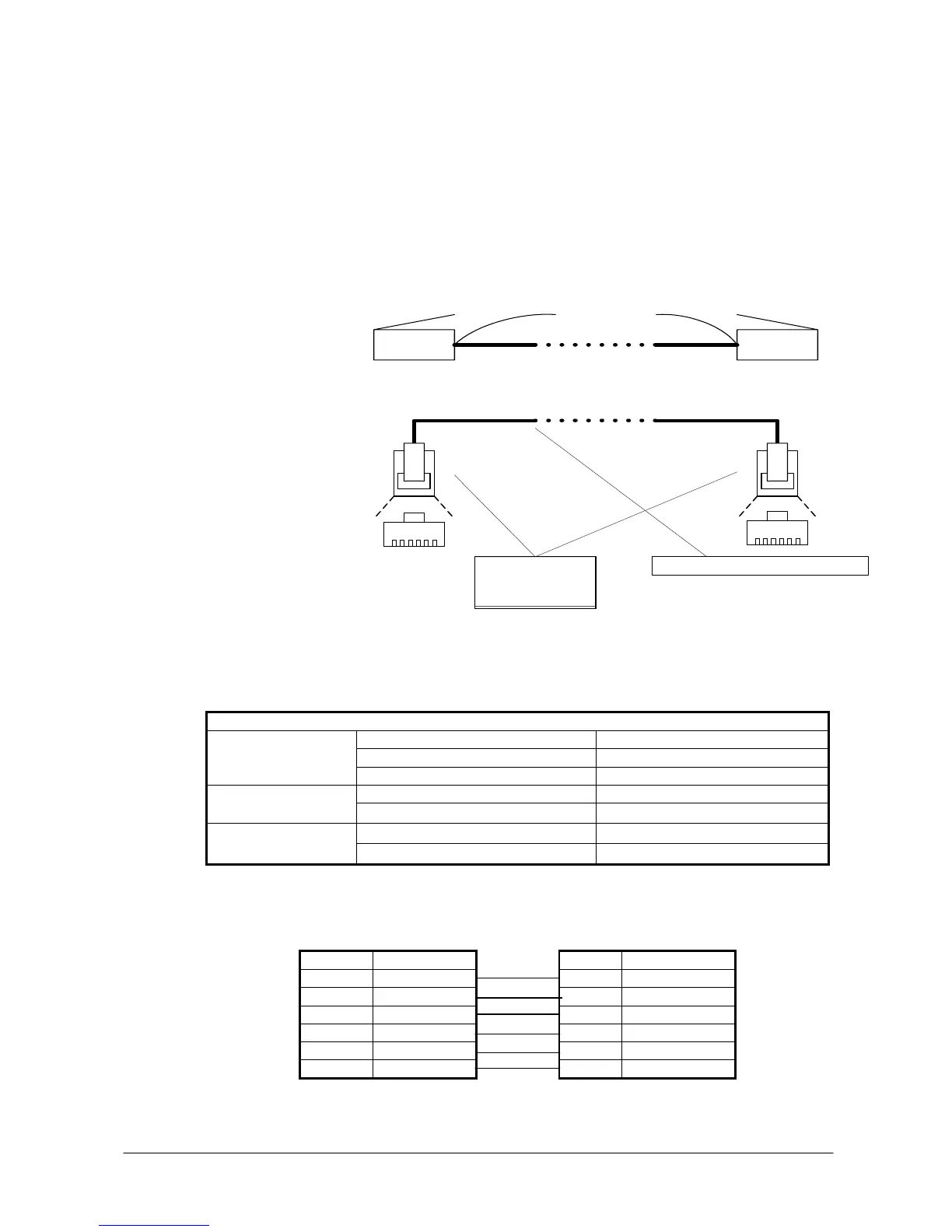

5.1 For Chain Connection And Short Length
Length; 1 meter or less
1 2 3 4 5 6
Maxmimum
1m
Modular plug
(com p patib le w ith 6 / 6-
6FR SYK (Sabyo
Industrial)
1 2 3 4 5 6
Cable(see Table 5.1)
Table 5.1 Specifications of the cable
Cable
Conductor 20/0.1A
Insulator Semi-hard material P.V.C.
Core wire
Finish of external shape 20/0.1A
Insulator P.V.C. Sheath
Finish of external shape
φ4.3±0.1mm
Conductance resistance
0.12Ω/m or less
Characteristics
Insulation resistance
50MΩ or more
Pin layout diagram of cable for chain connection and short distance (pin-to-pin straight connection)
Wiring
Pin no. Signal Pin no. Signal
1 IRS+ 1 ORS+
2 IRS- 2 ORS-
3 ISD+ 3 OSD+
4 ISD- 4 OSD-
5 ORD+ 5 IRD+
6 ORD- 6 IRD-
Cradle at lower
position under the
chain connection
Cradle at higher
position under the
chain connection
View from side
View from top
Fig. 5.1
Fig. 5.2
