— 23 —

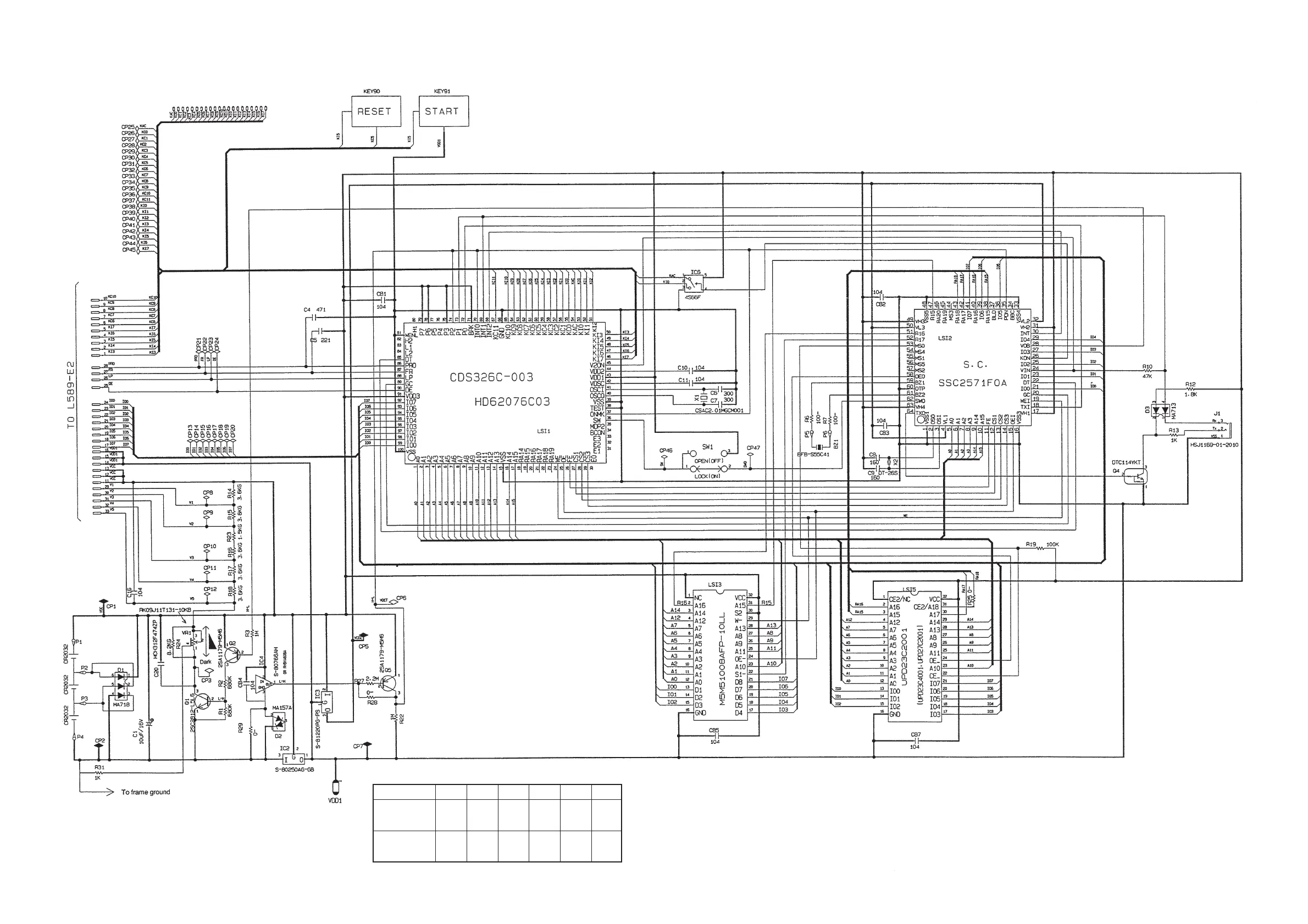

SCHEMATIC DIAGRAM
Main PCB: SF-7900E
Note: The following parts are not mounted.
C16, R24
IC4 D2 Q5 R22 R27 R28 R29
S-80766AH —OOO—O
RH5VA60BA
O—O—O—
