Notes:
• The hob is equipped with an anti-overheating safety device that
can be activated if the hob is installed over an oven that is not
suciently ventilated. In the event that this occurs, the control panel
will show E2, ER21 or ER40. We recommend that you increase
the ventilation of the hob by creating an opening in the side of the
cabinet (8 cm x 5 cm).
• Ensure that the top rail is removed prior to installation, and that
no unit cross member is blocking the air outlets.
• If the hob is to be located above a working drawer, we recommend
that the drawer is not used for storing soft items, for example
dusters or towels; this is to minimize the risk of the cooling system
air intakes being obstructed.
How to Install the Hob
Overall dimensions of the hob:
Width: 900 mm Depth: 350 mm
Worktop cut-out dimensions:
Width: 880 mm Depth: 330 mm
1. Make the required hole in the
worktop. Before doing this, you must
check the instructions supplied with
any cooker hood to ensure that you
will have the required clearance. The
cut-out (Fig.7) shows a 60mm gap

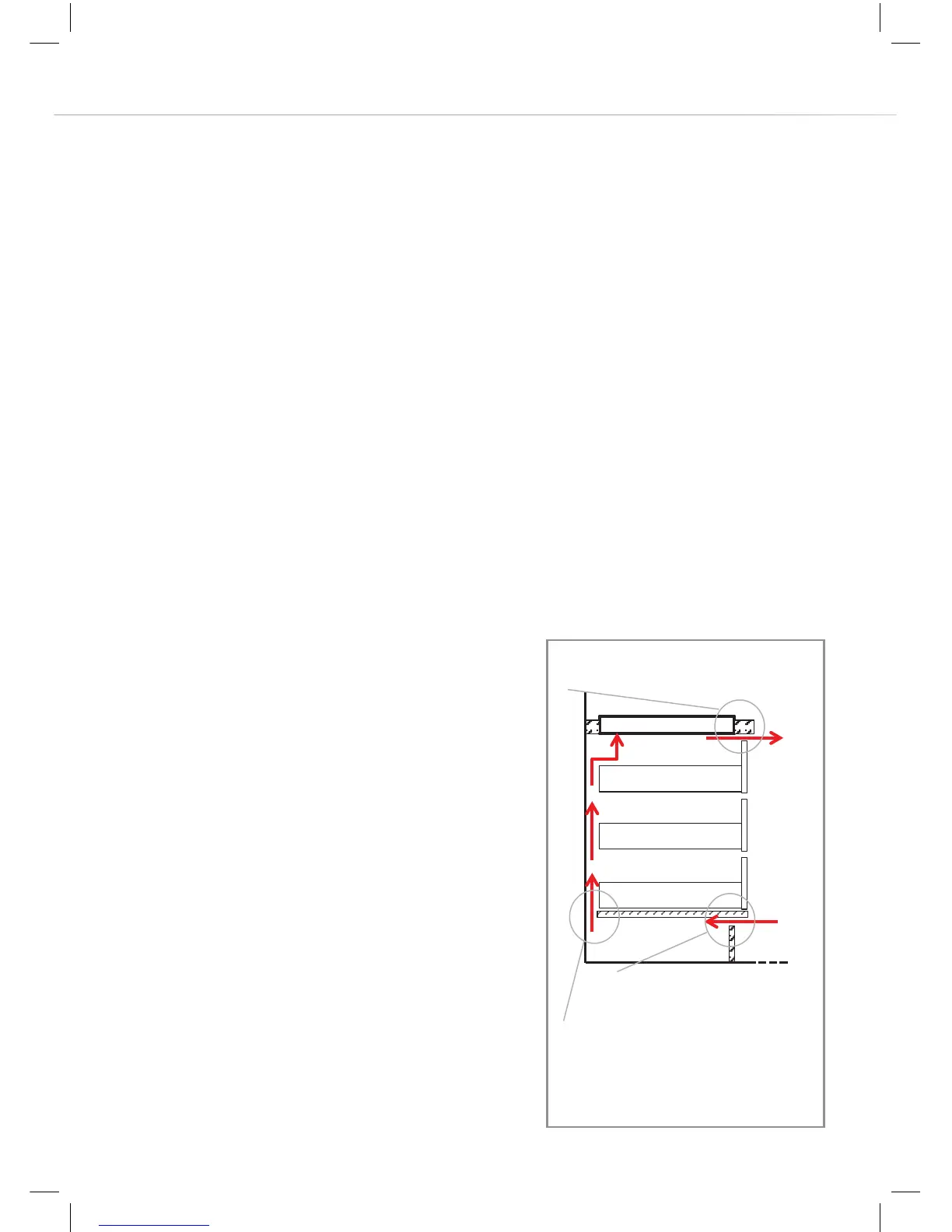

Fig.5
Top rail removed to allow air to exit.
Recommended 560mm x 6mm
Air intake into the run of units.
Recommended 560mm x 10mm
A ventilation slot may need to be cut
into the base if there is no ventilation
provided.
Recommended 560mm x 25mm
To Next Page
