18
fig. 23
Fitting the integrated appliance door
Where non-standard integrated appliance doors are supplied, additional
fitting instructions are required to ensure compatibility with this product.
The machine is supplied with a fitting template and these instructions should
be followed as normal.

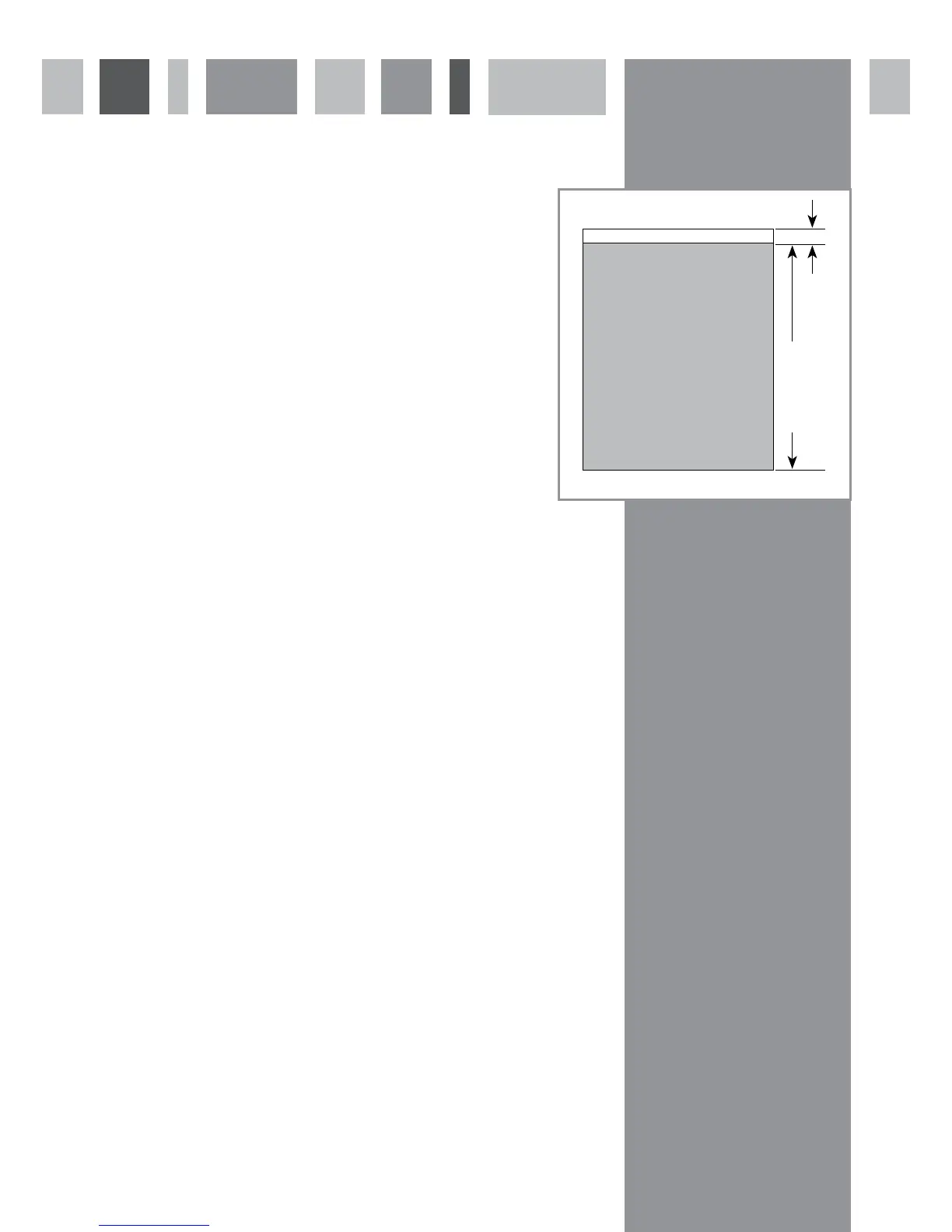

However, the fitting template needs to be located lower down the fascia
door; this is shown below.
The amount of offset, Y, depends on the height of the fascia door and can be
calculated as X = 723mm.
For example, if you have a 731mm tall fascia door and are fitting a door to
your dishwasher, then Y = 731-723 = 8mm.
Ensure that the hinge tensioners are adjusted to balance the weight of the
door.
Fitting template
Y offset
X Door height
