chapter 7000
page 11
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
MASTS
After the first 50 hours
- adjust the guide shoes through socket head (Allen) screw (D)
For this purpose use a 0.2-0.5 mm thickness gauge, inserting it
from below upwards to the centre of the Allen screw (D) passing
behind the roller (F) and sliding on the outer mast..
Every 500 hours
- check the mast tilting
- check the mast guide pads
- adjust the mast fixing
- adjust the lifting jacks collars and tilting jacks nuts
Every 1000 hours
- check the mast sliding guides, mast and mast jacks fixing
- lubricate the tilting jacks and the mast connections.
- inspect the mast guide rollers (E); they have to rotate freely and
not to be too worn out.
A) Tilting jacks 2+2 grease nipples
B) Mast connections 1+1 grease nipples
- adjust the guide shoes;
- grease the mast guide rollers (E)
FORK CARRIAGE AND SIDESHIFT UNIT
After the first 50 hours
- adjust the guide shoes through socket head (Allen) screw (G)
For this purpose use a 0.2-0.5 mm thickness gauge, inserting it
from below upwards to the centre of the Allen screw (G) passing
behind the roller (H) and sliding on the outer mast.
Every 500 hours
- check the fork carriage position
Every 1000 hours
- check and adjust the the sideshift guide shoes
- check and lubricate the fork positioning pins and notches.
- inspect and grease the fork carriage guide rollers (F); they have to
rotate freely and not to be too worn out.
G
F
H
A
B
A
E
D

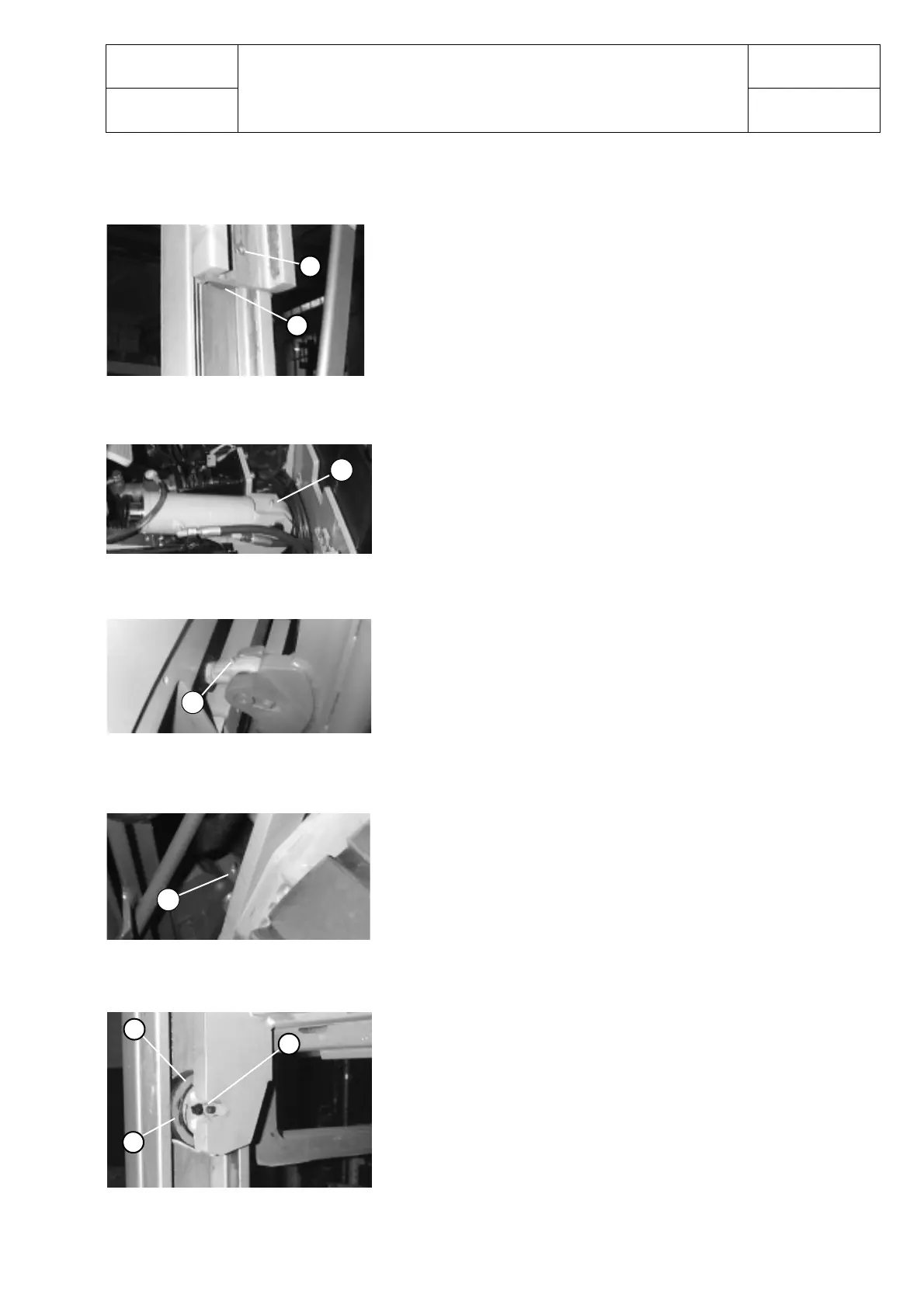

LUBRICATION OF LIFTING EQUIPMENT
