chapter 7000
page 13
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
GUIDE ROLLERS AND GUIDE SHOES REPLACING
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5

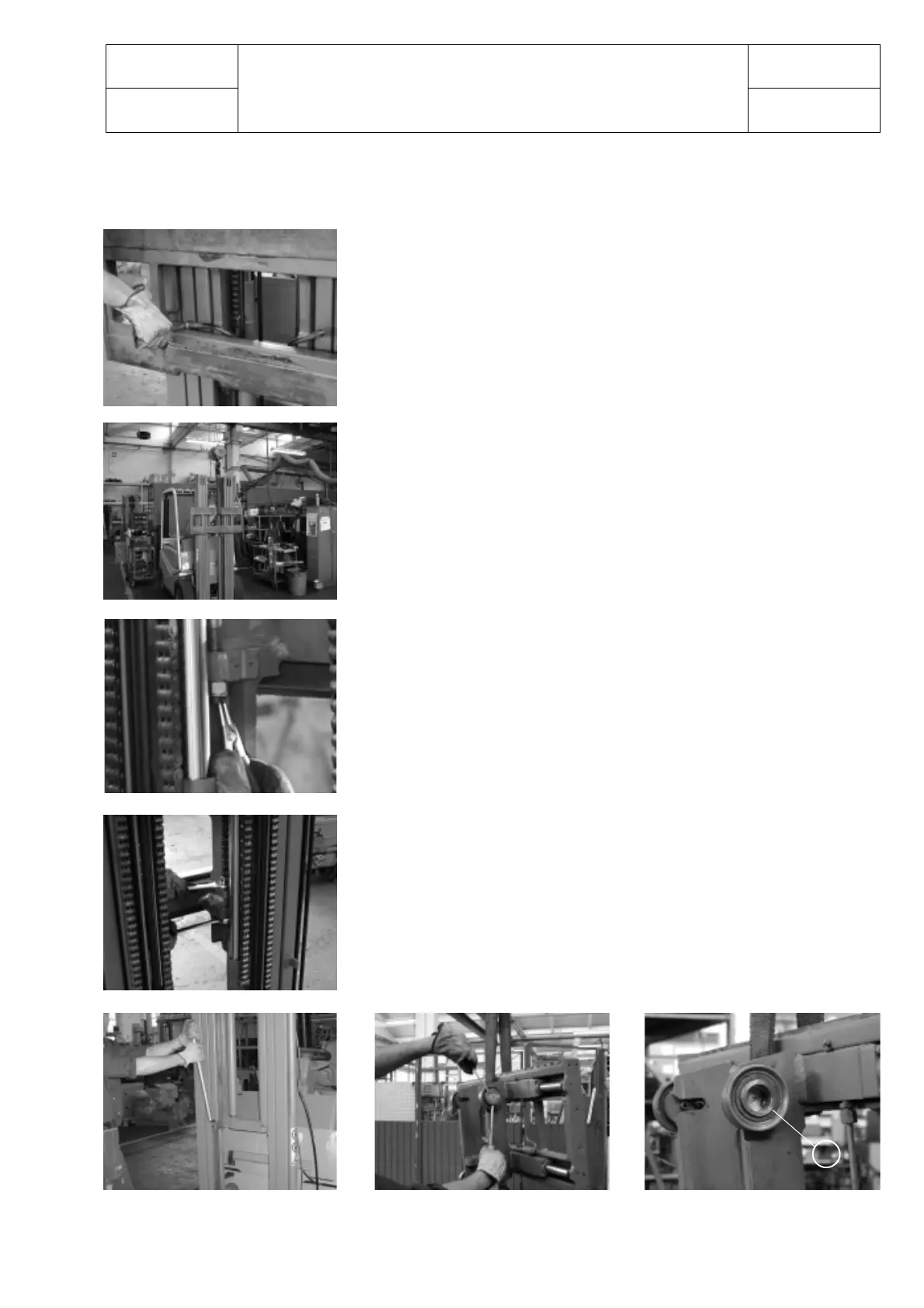

Mast-Fork carriage guide rollers and guide shoes replacing
In order to carry out the job proceed as follows:
1) remove the two forks from the carriage
2) disconnect the two sideshift hoses on the fork carriage
(Picture 1)
3) tie the fork carriage with a belt (Picture 2)
4) remove the safety clip of the chain pin on the carriage (Picture 3)
5) remove the nut stopping the chain pin with a tool as shown in
Picture 4. After that move the two chains to the opposite side in
order to have more space.
6) remove the two Allen screws (Picture 5)
7) remove the complete fork carriage from the bottom
8) remove the guide shoes with two screw drivers (Picture 6) and
screw out the Allen screw G (see page 12) in the opposite
side, in order to let the new guide shoes go inside completely.
9) remove the snap ring A and take out the guide roller (Picture 7)
10) reassemble all parts in reverse order and adjust the guide shoes.
Picture 6
Picture 7
A
Picture 1
