REPLACEMENT OF THE WHEEL BRAKE CYLINDER
A: Wheel
B: Reduction gear
C: Electric motor
D: Wheel brake cylinder
E: Metal parking brake cable
F: Oil brake hose
G: Threaded bar M8
H: Threaded bar M14 (see next page)

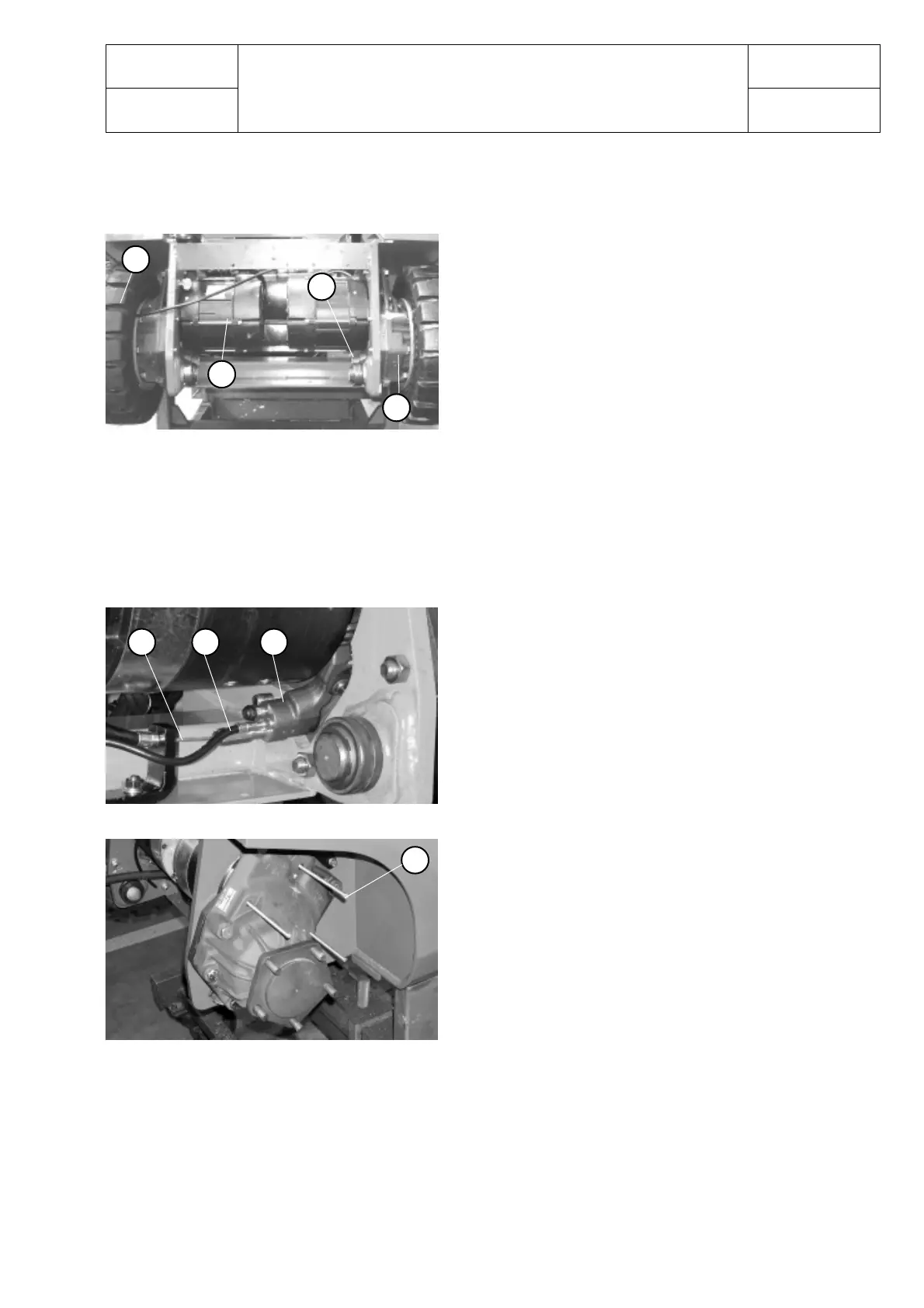

In order to replace the wheel brake cylinder D it is possible to proceed in two different ways:
1st WAY
1) Lift the truck
2) Remove cable E and hose F
3) Remove wheel A
4) Replace the three screws used for fixing the
reduction gear to the electric motor with three
threaded bar M8 or three longer screws (G).
5) Move the electric motor C in order to create enough
space between the two components (reduction gear
and electric motor).
6) Replace the wheel brake cylinder by dismounting the
clip of the pin.
7) Reassemble the parts.
Be careful not to damage the pinion during the
coupling of the motor with the reduction gear.
