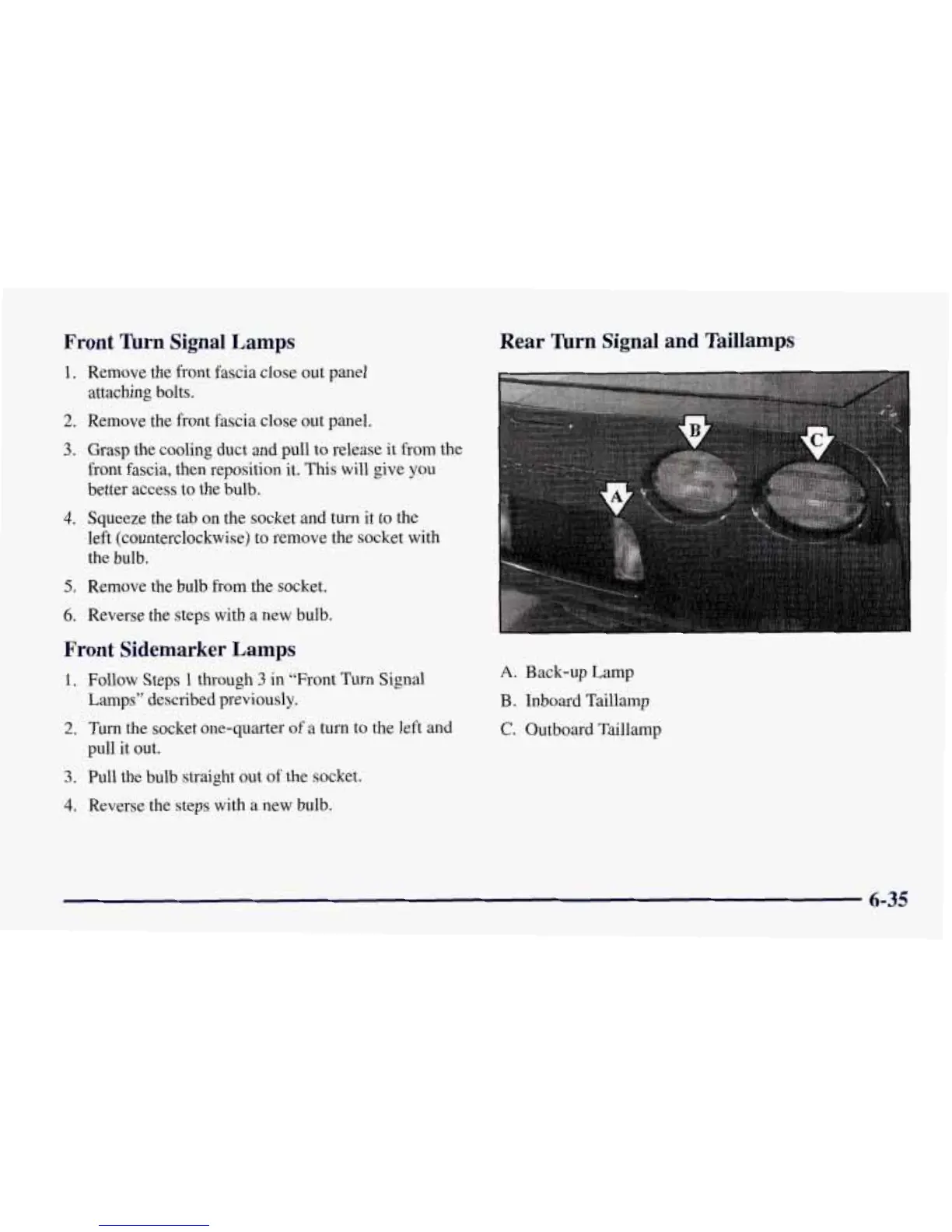

Front nrn Signal Lamps
Rear
nrn
Signal and Taillamps
1.
Remove the front fascia close out panel
attaching bolts.
2.
Remove the front fascia close out panel.
3.
Grasp the cooling duct and pull to release it from the
front fascia, then reposition
it.
This will give you
better access to the bulb.
4.
Squeeze the tab on the socket and turn it to the
left (counterclockwise) to remove the socket with
the bulb.
5.
Remove the bulb from the socket.
6.
Reverse the steps with a new bulb.
Front Sidemarker Lamps
1.
Follow Steps
1
through
3
in “Front Turn Signal
Lamps” described previously.
2.
Turn the socket one-quarter of a turn
to
the left and
pull it out.
3.
Pull the bulb straight out
of
the socket.
4.
Reverse the steps with a new bulb.
A.
Back-up Lamp
B.
Inboard Taillamp
C.
Outboard Taillamp
6-35
