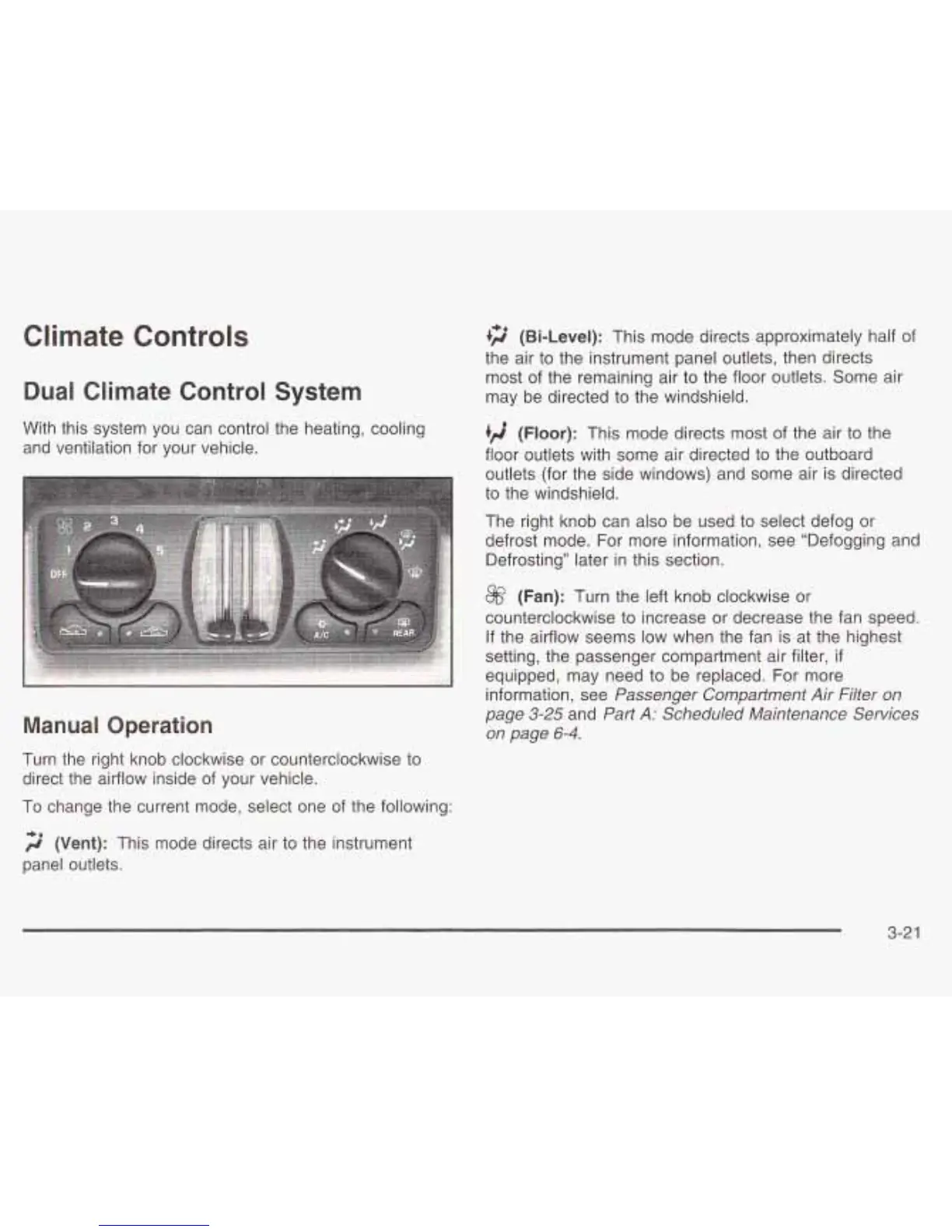

Climate Controls
Dual
Climate Control System
With this system you can control the heating, cooling
and ventilation for your vehicle.
Manual
Operation
Turn the right knob clockwise or counterclockwise
to
direct the airflow inside of your vehicle.
To change the current mode, select one of the following:
15;’
(Bi-Level):
This mode directs approximately half of
the air to the instrument panel outlets, then directs
most of the remaining air to the floor outlets. Some air
may be directed to the windshield.
4;
(Floor):
This mode directs most of the air to the
floor outlets with some air directed to the outboard
outlets (for the side windows) and some air is directed
to the windshield.
The right knob can also be used to select defog or
defrost mode. For more information, see “Defogging and
Defrosting” later in this section.
@
(Fan):
Turn the left knob clockwise or
counterclockwise to increase or decrease the fan speed.
If
the airflow seems low when the fan is at the highest
setting, the passenger compartment air filter,
if
equipped, may need to be replaced. For more
information, see
Passenger Compartment Air Filter on
page
3-25
and
Part A: Scheduled Maintenance Services
on page
6-4.
fi’
(Vent):
This mode directs air to the instrument
panel outlets.
3-2
