2. Disconnect the outlet duct by
loosening the air duct clamp (3).
3. Disconnect the electrical
connector (2) and the connector
harness from the cover.
4. Remove the four screws (1) on
top of the cover of the housing
and lift up the cover.
5. Remove the engine air cleaner/
filter from the housing. Take care
to dislodge as little dirt as
possible.
6. Clean the engine air cleaner/
filter sealing surfaces and the
housing.
7. Inspect or replace the engine air
cleaner/filter.
8. Reverse Steps 2-4 to reinstall
the filter cover housing.
{
Warning
Operating the engine with the air
cleaner/filter off can cause you or
others to be burned. The air
cleaner not only cleans the air; it
helps to stop flames if the engine
backfires. Use caution when
working on the engine and do not
drive with the air cleaner/filter off.
{
Caution
If the air cleaner/filter is off, dirt
can easily get into the engine,
which could damage it. Always
have the air cleaner/filter in place
when you are driving.
Cooling System
The cooling system allows the
engine to maintain the correct
working temperature.

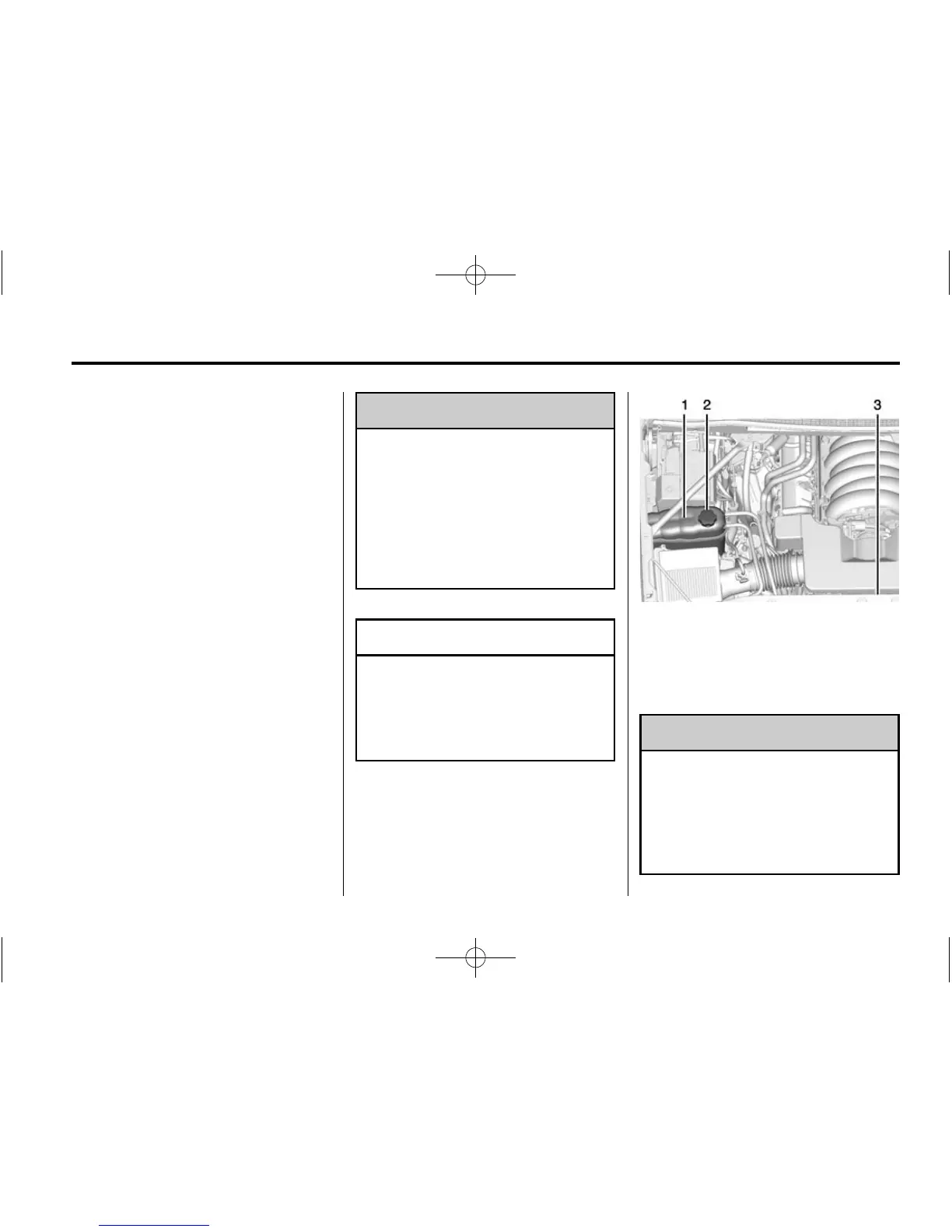

1. Coolant Surge Tank
2. Coolant Surge Tank
Pressure Cap
3. Engine Electric
Cooling Fan(s)
{
Warning
An electric engine cooling fan can
start even when the engine is not
running. To avoid injury, always
keep hands, clothing, and tools
away from any engine
cooling fan.
