Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
244 Vehicle Care
4. Raise the cab fully and be sure
the cab support (5) is locked by
the support lock lever (7).
5. Insert the safety lock pin (6).
Always be sure the safety lock pin is
installed when the cab is tilted.
{
Warning
To help avoid personal injury or
death, keep hands, tools, and
clothing clear of the engine
cooling fan when the engine is
running.
You and others could be seriously
injured.
Lowering the Cab
1. Have all personnel stand clear
of the cab.
2. Remove the safety lock pin (6).
3. Hold the assist handle (3) and
unlock the cab support by
pulling the support rearward
while pressing the support lock
lever (7).
4. Lower the cab and push the
handle (2) down firmly to lock.
{
Warning
To help avoid personal injury or
death, be sure the tilt cab is
securely locked in the lowered
position before operating the
vehicle.
You and others could be seriously
injured.

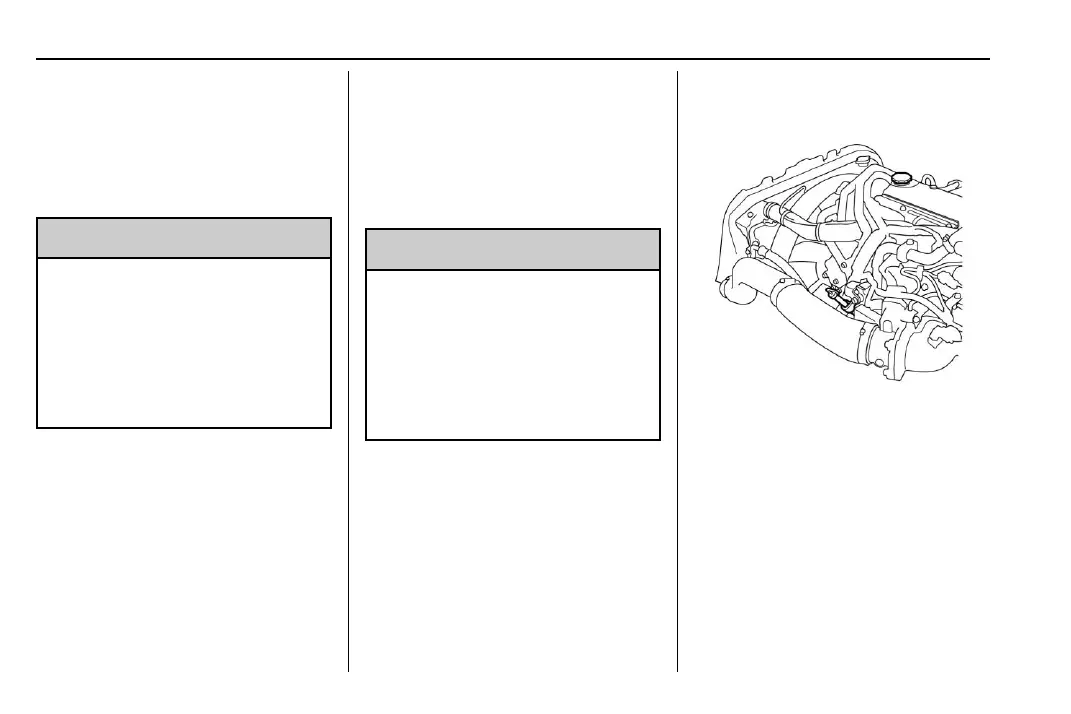

Engine Compartment
Overview
