Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Vehicle Care 245
Engine Cover

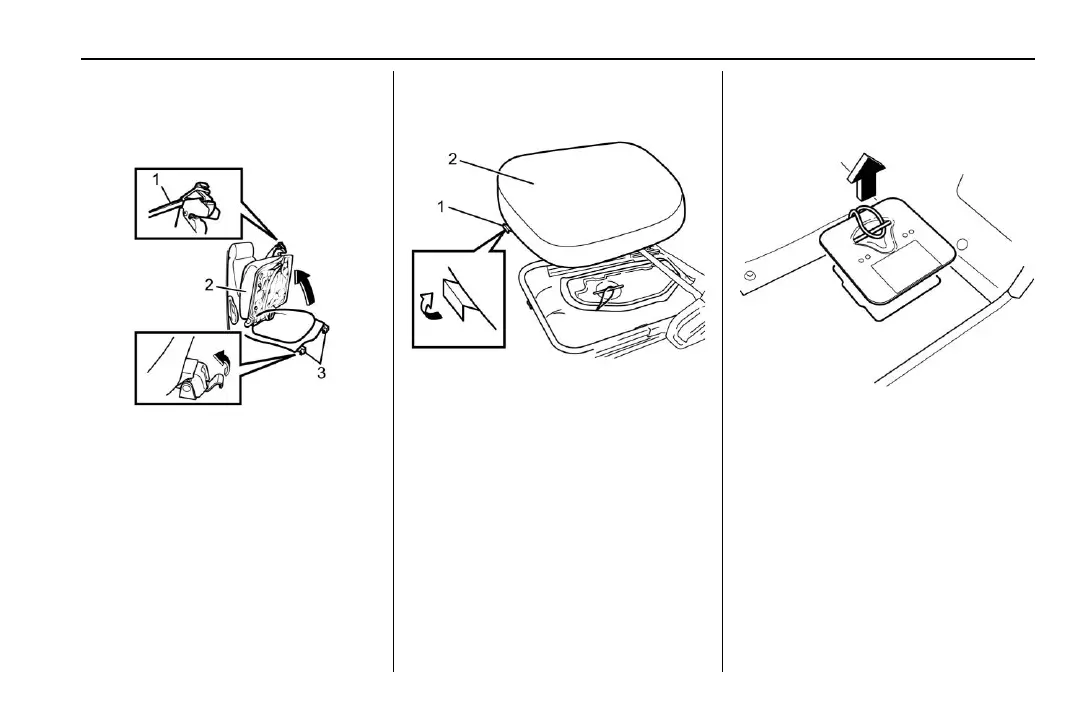

Engine Inspection Cover (Crew
Cab Model)
To gain access to the engine,
release the catch hooks (3) and
raise the passenger ’s seat
cushion (2). The cover can be held
up by a strap (1), permitting engine
inspection and adjustment.
Engine Inspection Sub Cover
(Crew Cab Model)
To gain access to the engine
compartment, pull the lock lever
(red) (1) on the driver ’s seat
cushion (2) to unlock it, raise the
driver ’s seat cushion and remove
the sub cover.
Engine Coolant Reserve Tank
Inspection Cover (Crew Cab
Model)
To gain access to the engine
coolant reserve tank, remove the
inspection cover located under the
rear left seat.
Engine Oil
Engine oil is an important factor
determining engine performance
and longevity. Be sure to use only
the specified oil and oil filters. The
engine oil level must be checked
To Next Page
