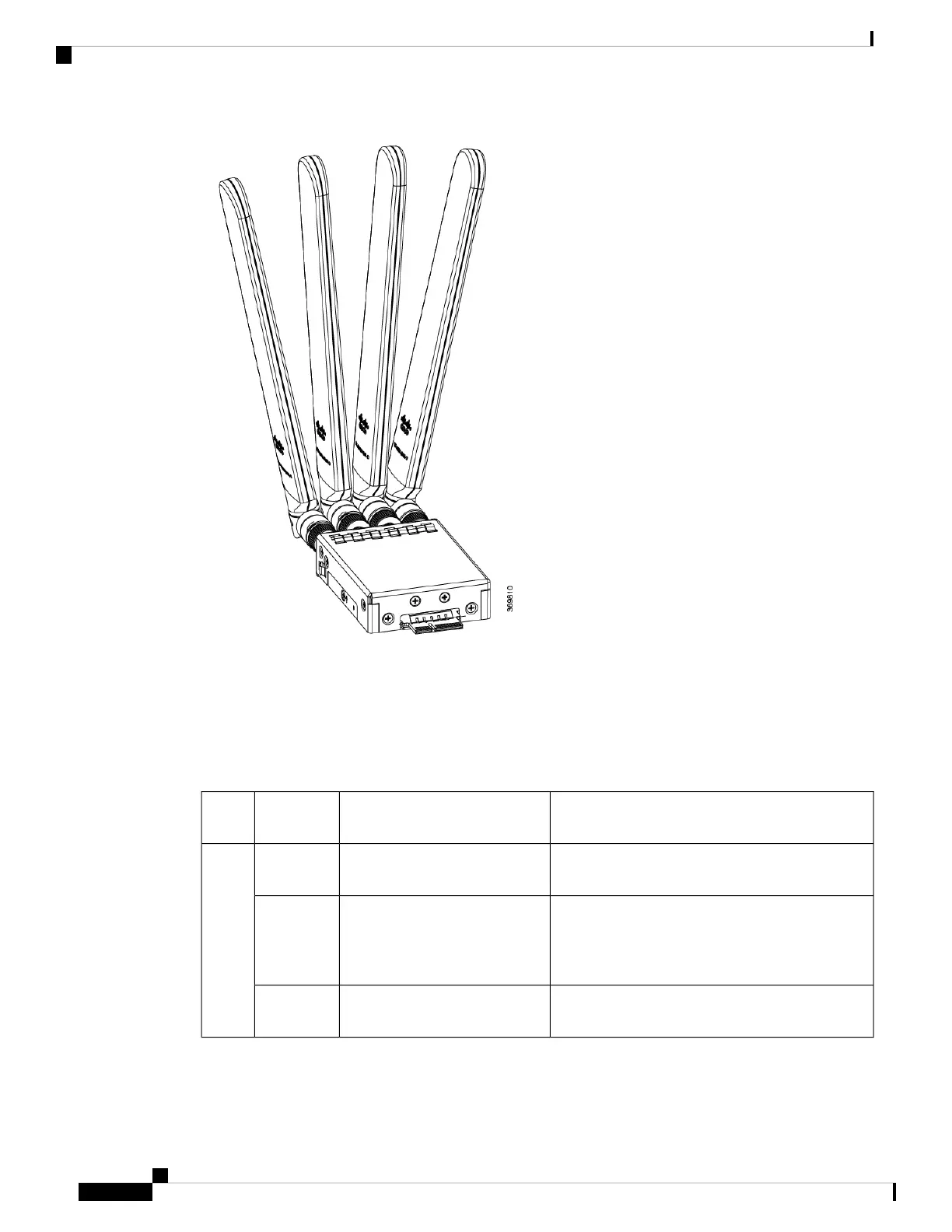

RF Band Mapping for Antenna Ports (For P-5GS6-GL only)
The following table lists the RF band mapping for antenna ports.
RF Band Mapping for Antenna Ports:
RXTXTechnologyAntenna
Port
B1, B2, B3, B4, B5, B6, B8, B9, B19B1, B2, B3, B4, B5, B6, B8, B9,
B19
3G
WDCMA
ANT 0
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
B18, B19, B20, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B43, B46, B48,
B66, B71
B1, B2, B3, B4, B5, B7, B8,
B12, B13, B14, B17, B18, B19,
B20, B25, B26, B28, B30, B34,
B38, B39, B40, B41, B66, B71
LTE
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40,
n41, n48, n66, n71, n77, n78, n79
n1, n2, n3, n5, n7, n8, n12, n20,
n28, n38, n40, n41, n66, n71
5G NR FR1
