Cisco 1000 Series Hardware Installation Guide

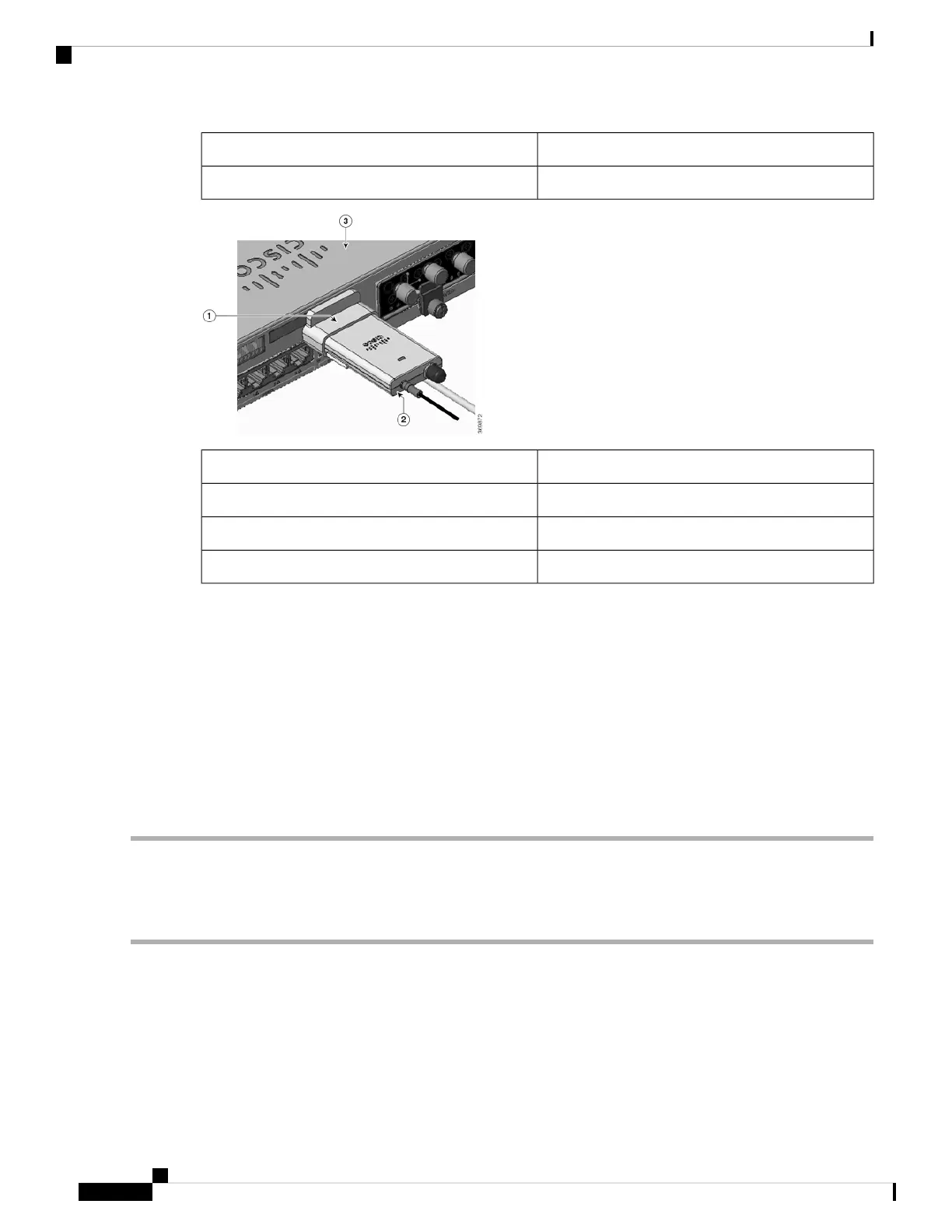

DescriptionNumber
Plug-in direction4
DescriptionNumber
Supporting ring1
Dongle holder with magnet2
Router-C1101-4PLTEPW3
Follow the same procedure to install the USB LTE dongle onto routers with a vertical USB slot.
Antenna Mounting Instructions
This section describes how to mount the antenna on the Cisco 1000 Series Integrated Services Router. The
information is contained in the following sections:
Rack Mount of the Antenna
To install the antenna on a rack, do these steps:
Option A - Rack Mount at a Different Height with the Platform
Step 1 Pick up the R-Brackets (700-121611-01)
Step 2 Place and fix the bracket at an appropriate location on the rack using two screws.
Step 3 Tighten the screw, the recommended torque is 10-12 in-lb.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
76
Install and Upgrade Internal Modules and Field Replaceable Units
Antenna Mounting Instructions
