Table 10: Port Mappings for 5G-ANTM-0-4-B on P-5GS6-GL and P-LTEAP18-GL PIMs
P-5GS6-GLP-L TEAP18-GL5G-ANTM-O-4-B
ANT 0Main 0MAIN 0
(LTE1)
ANT 1Main 1MAIN 1
(LTE3)
ANT 2DIV 0DIV 0 (LTE2)
ANT 3DIV 1DIV 1 (LTE4)
GPSNo
connection
GNSS
The following link contains the antenna specifications and installation instructions for 5G NR
(5G-ANTM-O-4-B):
https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/
b-cisco-industrial-routers-and-industrial-wireless-access-points-antenna-guide/m-5g-antm-04b.html#Cisco_
Generic_Topic.dita_e780a6fe-fa46-4a00-bd9d-1c6a98b7bcb9
Install a Micro-SIM Card into a USB LTE Dongle
This section describes how to insert a micro-SIM card into a USB LTE dongle in a C1101-4P router.

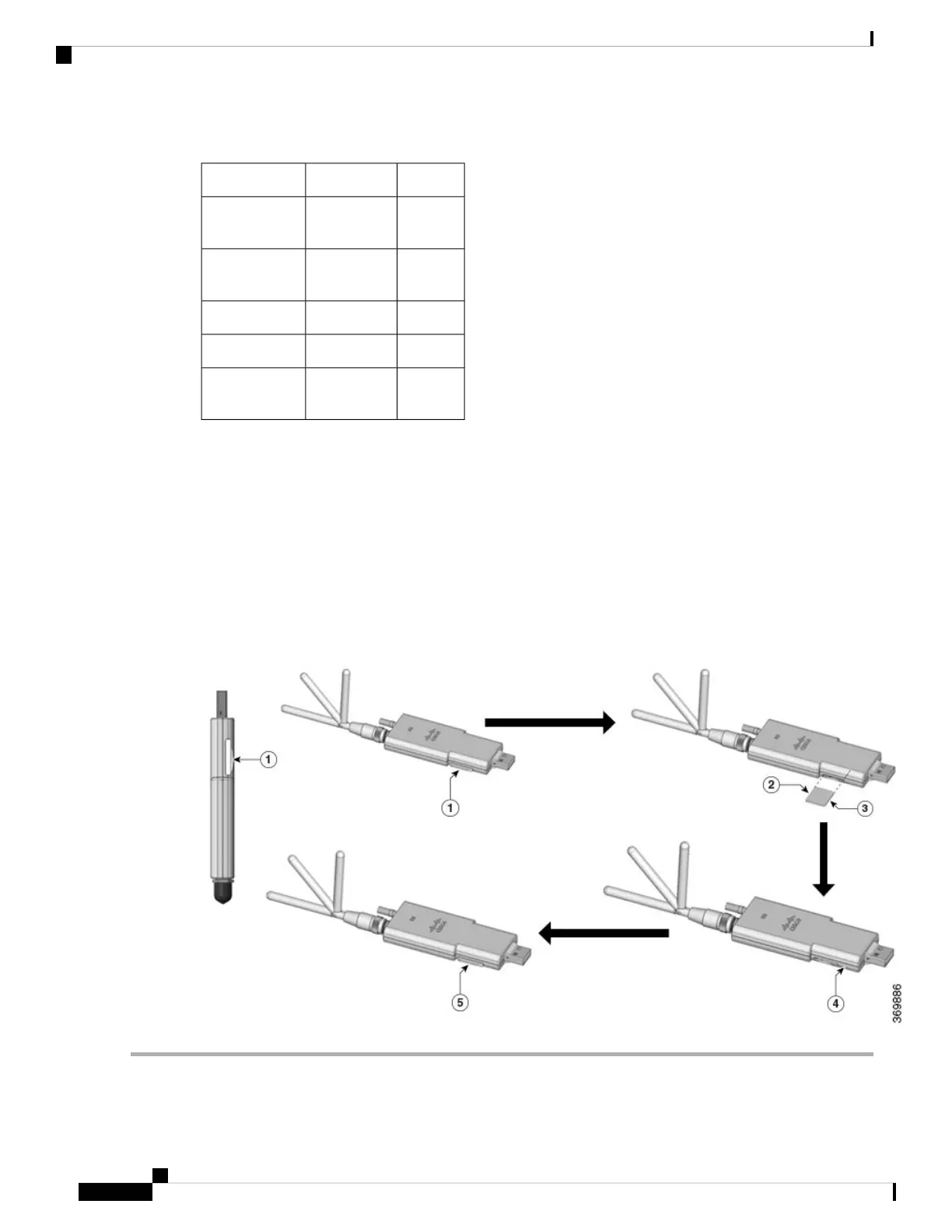

Figure 62: Micro-SIM Card Slot with Dust Cover
Step 1 To insert a micro-SIM card into a USB LTE dongle, do these steps:
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
74
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Micro-SIM Card into a USB LTE Dongle
