Chapter 4 Router Installation
Connecting a Server, PC, or Workstation
Step 6 To configure the router software by using the command-line interface (CLI) or to troubleshoot problems,
connect a terminal or PC to the console port. See the
“Connecting a Terminal or PC to the Console Port”
section on page 4-14.
Step 7 (Optional) To use the console port as a backup link to the WAN port in case the ADSL service goes down,
connect an analog modem to the console port. See the
“Connecting an Asynchronous Modem to the
Console Port” section on page 4-14.
Connecting a Server, PC, or Workstation

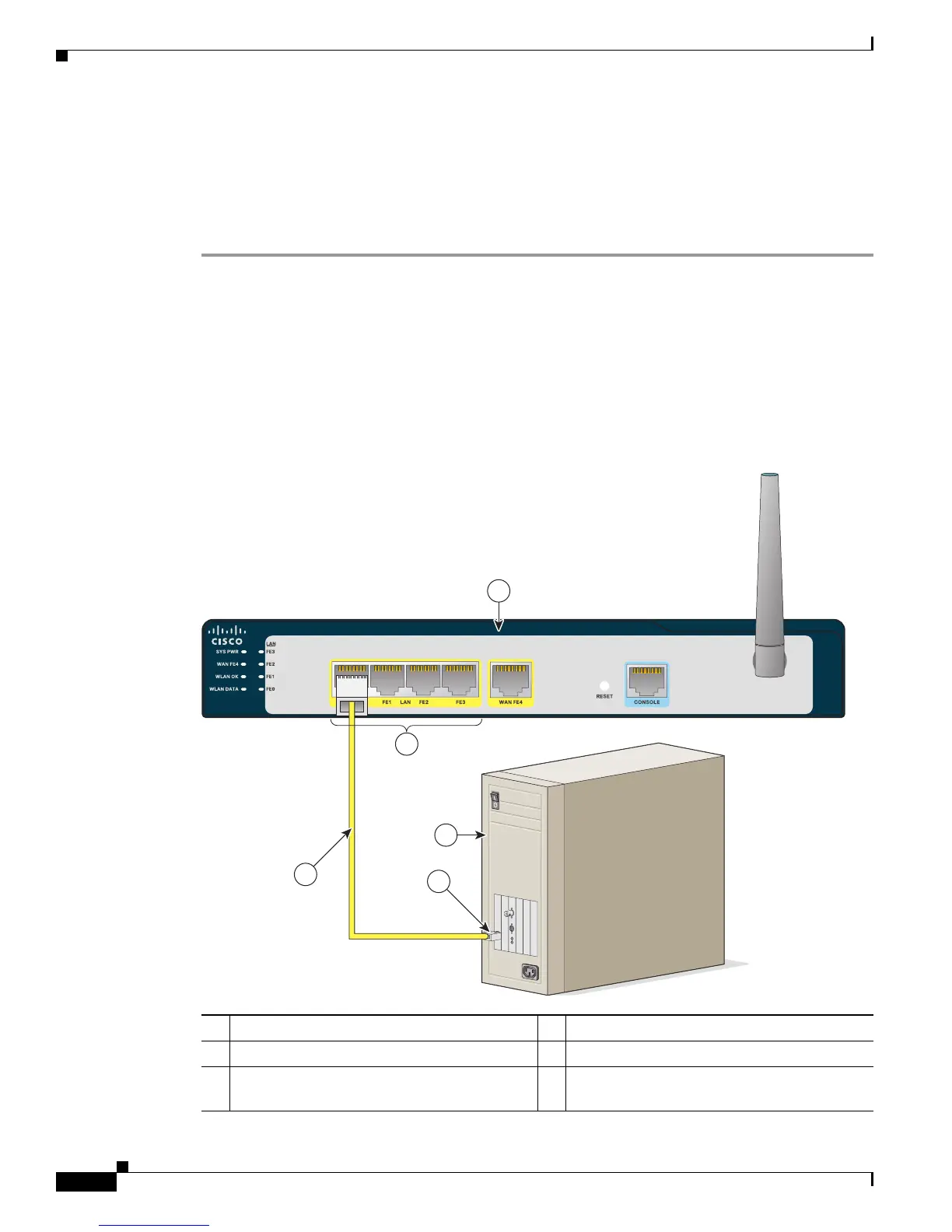

Figure 4-4 shows a Cisco Secure Router 520 Ethernet-to-Ethernet router connected to a PC. Although
the figure shows a Cisco Secure Router 520 Ethernet-to-Ethernet router, this procedure applies to all
Cisco Secure Router
520 Series routers.
Figure 4-4 Connecting a Server, PC, or Workstation
Cisco Secure Router 500 Series
231440
2
3
5
1
4
1 Router 2 Built-in Ethernet switch port on the router
3 Yellow Ethernet cable 4 PC
5 RJ-45 port on the network interface card
(NIC)
