Chapter 5 Maintaining the Cisco 6400
Verifying Plug-In Module and Component Installation

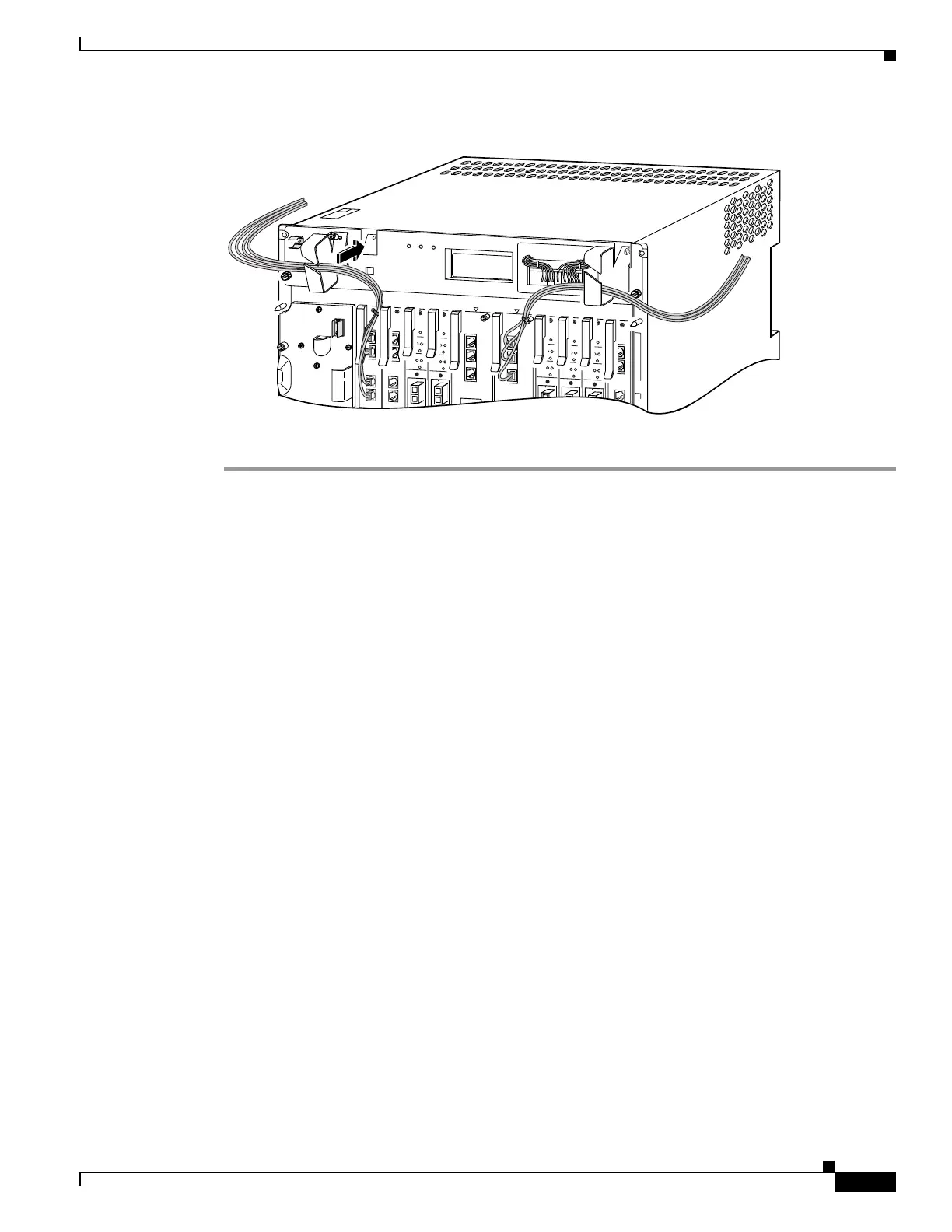

Figure 5-43 Reattaching the Cable Management Brackets
Verifying Plug-In Module and Component Installation
After you perform a replacement procedure, verify that any new plug-in module or component is
installed correctly. To verify the installation, check the status of the interfaces:
• If this item is a replacement card, use the show configuration or show atm interface
[slot_num/mod_num/port_num] command to verify that the system acknowledges the newinterfaces
and that they are online.
• Refer to Cisco 6400 Software Setup Guide and Cisco 6400 Command Reference for all software
instructions and information.
NRP
NSP
CON
AUX
ETH
ACT
LNK
FANS
OK
FAN
FAILURE
MULTI-
FAN
FAILURE
1
2
3
4
0A
PROCESSOR ONLY
0B
56
7
8
SUB
SLOT
0
NSP
CON
AUX
ETH
ACT
LNK
NRP
OC-3
STM-1
PORT 0
PORT 1
STATUS
TX
FAIL
RX
STATUS
TX
RX
OC-3
STM-1
PORT 0
PORT 1
STATUS
TX
FAIL
RX
STATUS
TX
RX
OC-3
STM-1
PORT 0
PORT 1
STATUS
TX
FAIL
RX
STATUS
TX
RX
OC-3
STM-1
PORT 0
PORT 1
STATUS
TX
FAIL
RX
STATUS
TX
RX
OC-3
STM-1
PORT 0
PORT 1
STATUS
TX
FAIL
RX
STATUS
TX
RX
NRP
PCMCIA
PCMCIA
CAUTION: WHEN HOT SWAPPING THIS
FAN TRAY, REMOVAL AND REPLACING
MUST BE DONE IN UNDER THREE
MINUTES OR OVER HEATING MAY
OCCUR.
28339
