Cisco 6400 User Manual

5-6
Cisco 6400 Hardware Installation and Maintenance Guide
OL-2133-02
Chapter 5 Maintaining the Cisco 6400
Replacing the Front Cover
Removing the Front Cover
To remove the front cover, first remove the bezel plugs:
Step 1 Insert the tip of a flat-blade screwdriver into the indentation between the top and bottom of the plug.
Step 2 Rotate the screwdriver blade 90 degrees, pushing out the top of the plug (Figure 5-3).
Step 3 Remove the plug with your fingers.
Step 4 Then firmly grasp the cover with both hands, lift upward as far as possible (about one inch), and pull
forward.

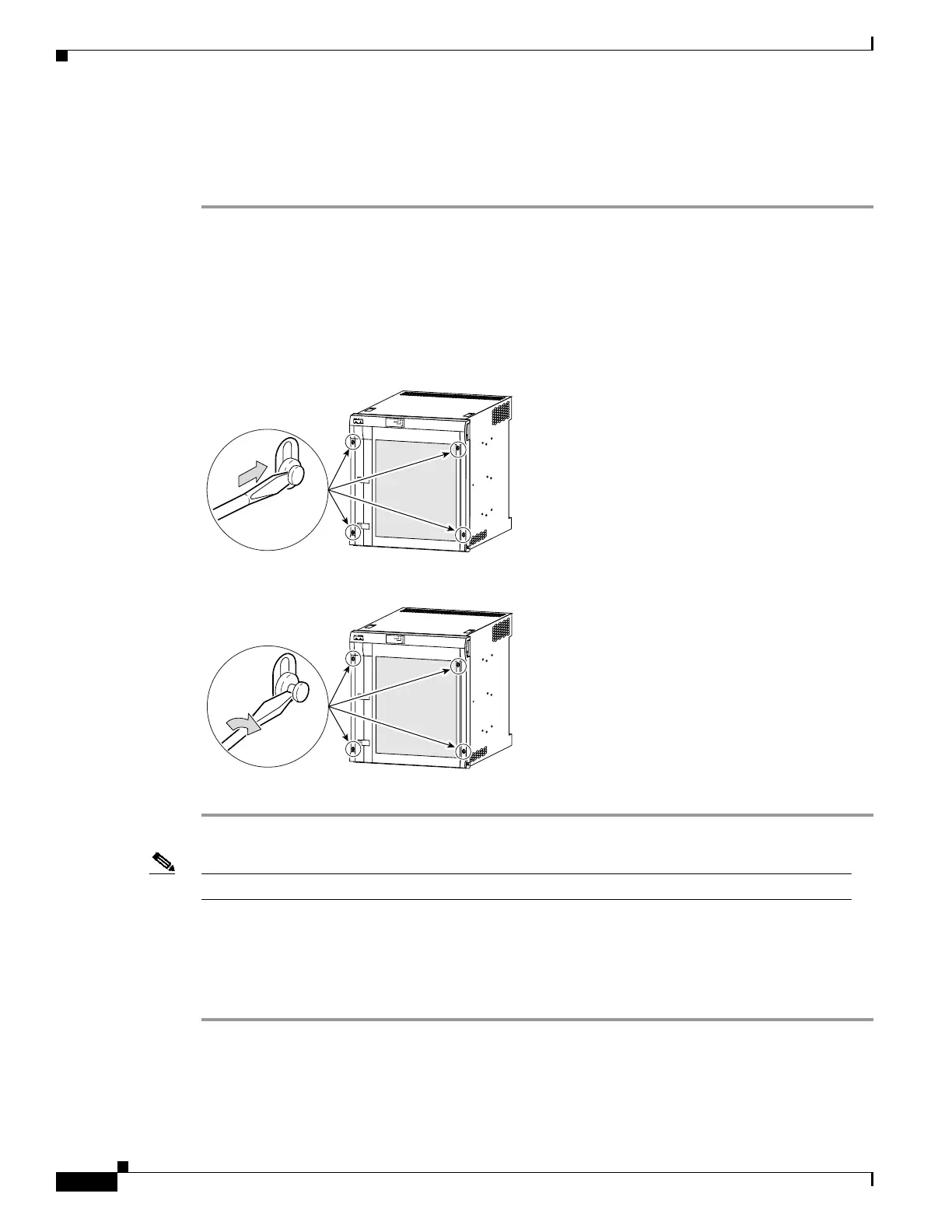

Figure 5-3 Removing Bezel Plugs
Note The cover is secured by four posts. Avoid bending or twisting cables and connectors.
Installing the Front Cover
To install the front cover:
Step 1 Line up the hole in each corner of the cover with the four posts on the chassis (Figure 5-4).
Step 2 Gently but firmly push the cover onto the posts and slide downward to secure.
Step 3 Insert one of the bezel plugs into a corner hole, below the post.
22959
POWER
FAULT
MISWIRE
POWER
FAULT
MISWIRE
FANS OK
FAN FAILURE
MULTI-FAN FAILURE
POWER
FAULT
MISWIRE
Cisco 6400
22960
POWER
FAULT
MISWIRE
POWER
FAULT
MISWIRE
FANS OK
FAN FAILURE
MULTI-FAN FAILURE
POWER
FAULT
MISWIRE
Cisco 6400
