Appendix
ADA Non-Lockable Wall Mount Kit for 6900 Series
Figure F-4 Mount the Wall Bracket
Step 2 Attach the phone bracket to the IP phone.
a. Detach the handset cord (and headset cord, if there is a headset), power cord, and any other attached
cords from the base of the phone.
b. Remove the label covers that are concealing the screw holes.
c. Attach the phone bracket by inserting the tabs into the mounting tabs on the phone. The phone ports
should be accessible through the holes in the bracket.
d. Secure the phone bracket to the IP Phone with the machine screws.
e. Thread the handset cord (and headset cord, if using one). Reattach the cords and seat them in the
clips incorporated into the phone body.

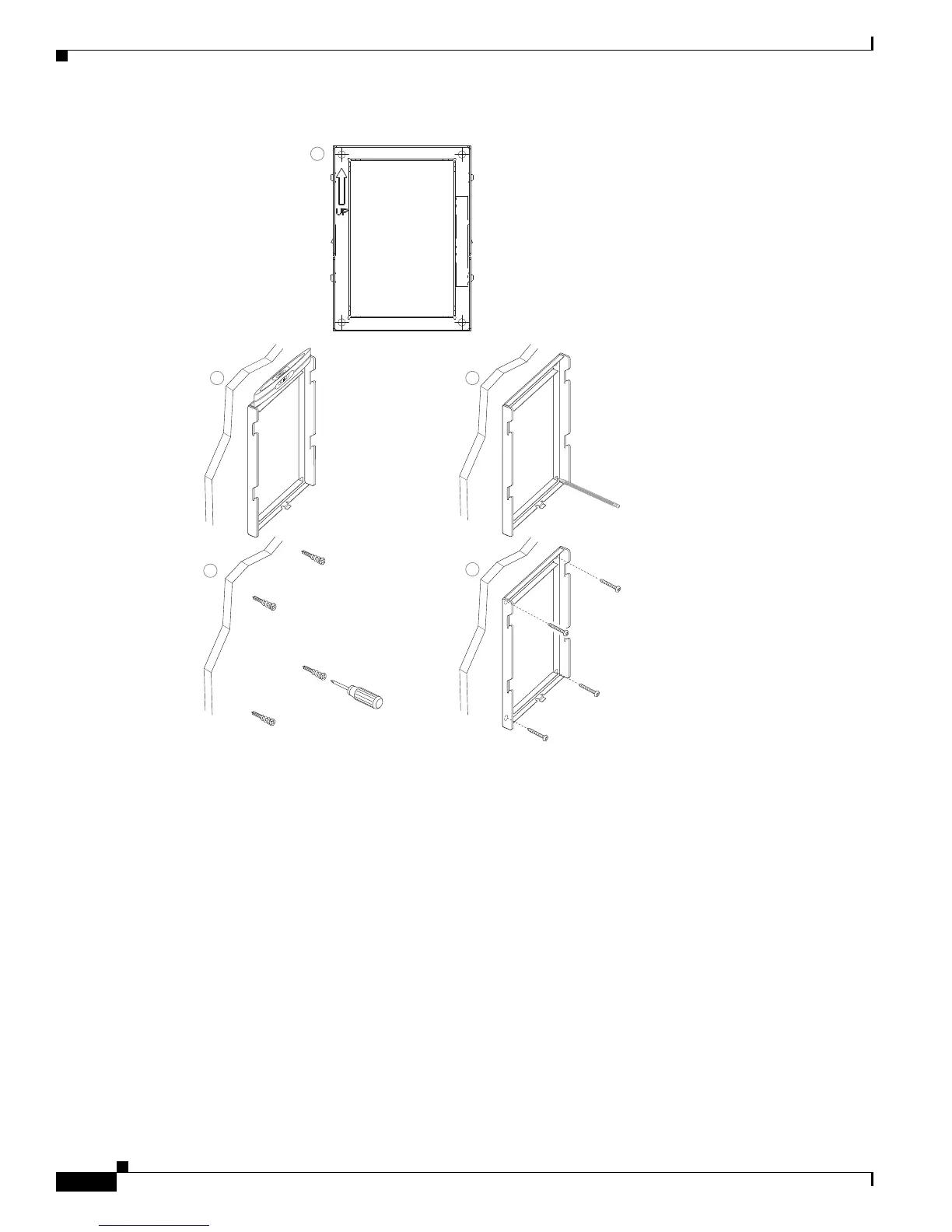

The following figure shows how to attach the phone bracket.
345755
Level wall
bracket on wall
Mark mounting
holes through
bracket on wall
B
C
D
E
Insert anchors
into wall
Screw bracket
to wall using
Phillips head
screws
A
