Removing and Replacing Memory SIMMs and the Boot ROM
Step 5 Release the spring clips from the SIMM that you want to remove, and release the SIMM
from the socket (refer to Figure 13).
Figure 13 Releasing the SIMM Spring Clips
Step 6
When both ends of the SIMM are released from the socket, grasp the ends of the SIMM
with your thumb and forefinger and pull the SIMM completely out of the socket. Handle
the edges of the SIMM only; avoid touching the memory module or pins, and the metal
traces, or fingers, along the socket edge.
Step 7 Place the SIMM in an antistatic bag to protect it from ESD damage. You can use the
SIMMs that you remove in compatible equipment.
Step 8 Repeat Step 4 through Step 7 for the remaining SIMMs.
This completes the SIMM removal procedure. Proceed to the following section “Installing New
Memory SIMMs.”
Installing New Memory SIMMs
The Flash SIMM on the I/O controller in located in socket U99; the DRAM SIMMs on the network
processing engine are located in sockets U18, U25, U4, and U12 (refer to Figure 5 and Figure 6).
Caution Handle SIMMs by the edges only; avoid touching the memory modules, pins, or traces
(the metal fingers along the connector edge of the SIMM) (refer to Figure 9).

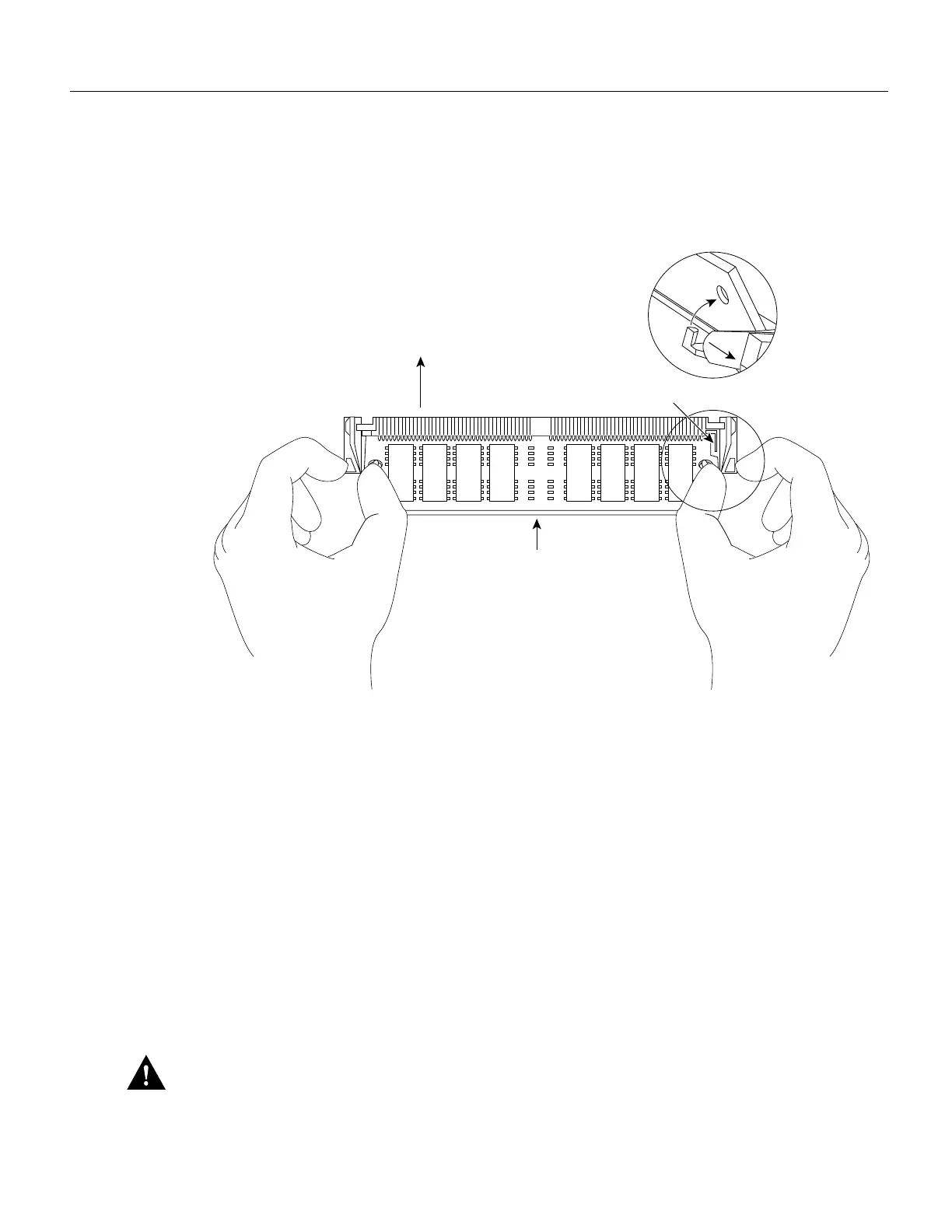

Polarization notch
DRAM SIMM card
Pull the tabs away with
your thumbs, bracing your
forefingers against the
posts. Raise the SIMM
to a vertical position.
H2017
Faceplate edge of
the system card
