Connecting Cables to the Router

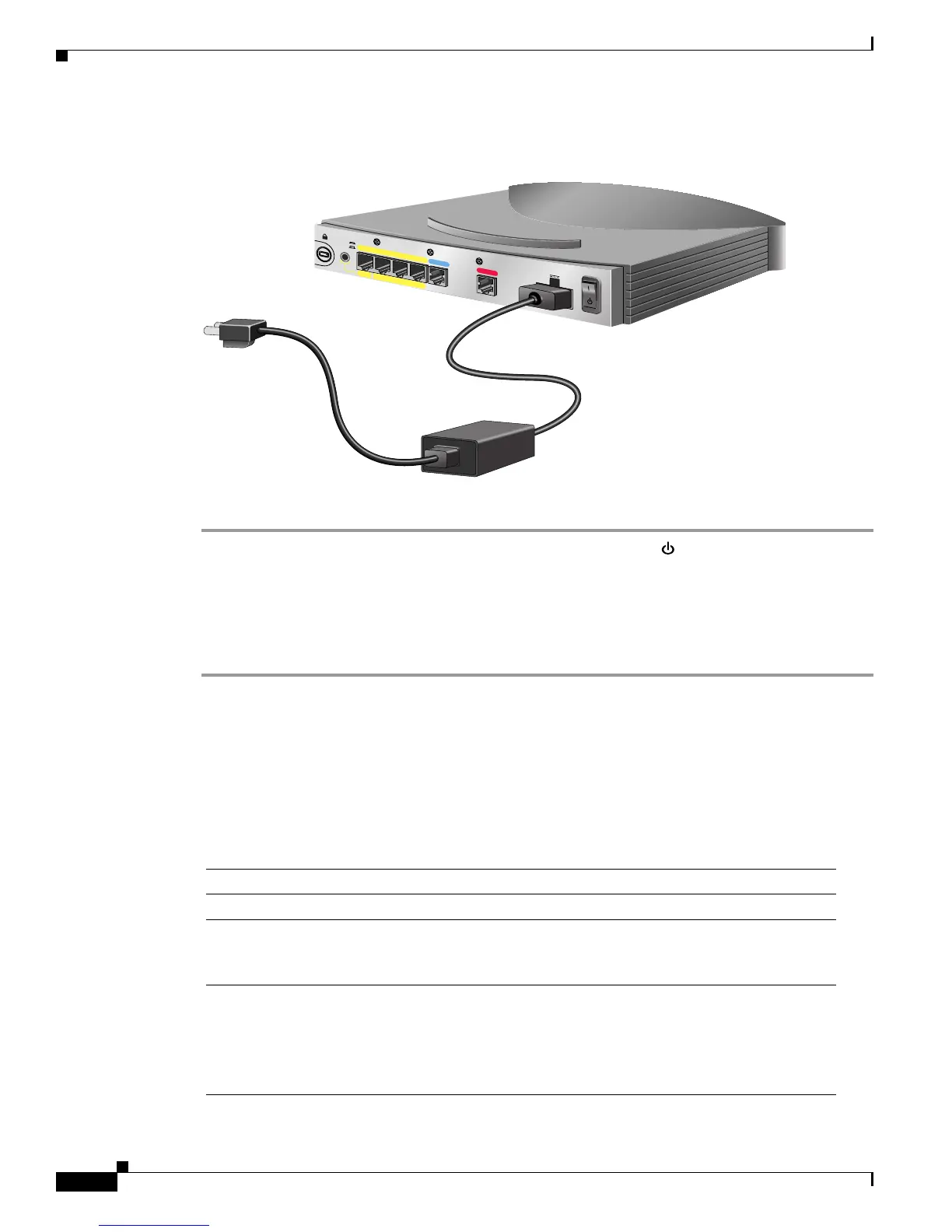

Connecting the Power Supply
Step 1 Make sure the router power is off. Press the power switch to standby ( ).
Step 2 Connect the power supply cable to the 8-pin connector on the router.
Step 3 Connect the power cord to the desktop power supply.
Step 4 Connect the other end of the power cord to an electrical outlet.
Step 5 Turn on the router. Press the power switch to on (|).
Verifying Router Connections
Verify the power connection and all other connections (links) by checking the LEDs in the table below.
If the LEDs are not on, see the troubleshooting information in the Cisco 800 Series Routers Hardware
Installation Guide.
TO HUB
TO PC
Cisco 804 IDSL
4
3
2
1
E
TH
ER
NET
10 BAS
E
T
CO
NSO
LE
2
Desktop power supply
To electrical outlet
Cisco 804 IDSL Router
ID
SL
+5, -24, -71 VDC
Power/Link LEDs To Check Normal Patterns
Power OK On
To hub, server, PC, or
workstation
Cisco 802 IDSL back panel: LINK LED
Cisco 804 IDSL front panel: ETHERNET
1, 2, 3, and 4 LEDs
On
To IDSL network using
IDSL port
NT1, LINE, CH1, or CH2 On (CH1 or CH2 is on only when
the router has an active data
connection. With a 64 kbps
connection, only CH1 is on. With a
128 or 144 kbps connection, both
CH1 and CH2 are on).
