9
Installing and Configuring Cisco 802 IDSL and Cisco 804 IDSL Routers
78-10368-03
Connecting Cables to the Router
Connecting an IDSL Line
Caution Always connect the yellow cable or Ethernet cable to the yellow ports on the router. Do not connect the
cable to an IDSL port or to a Network Termination 1 (NT1) device. Accidently connecting the cable to
the wrong port can damage your router.

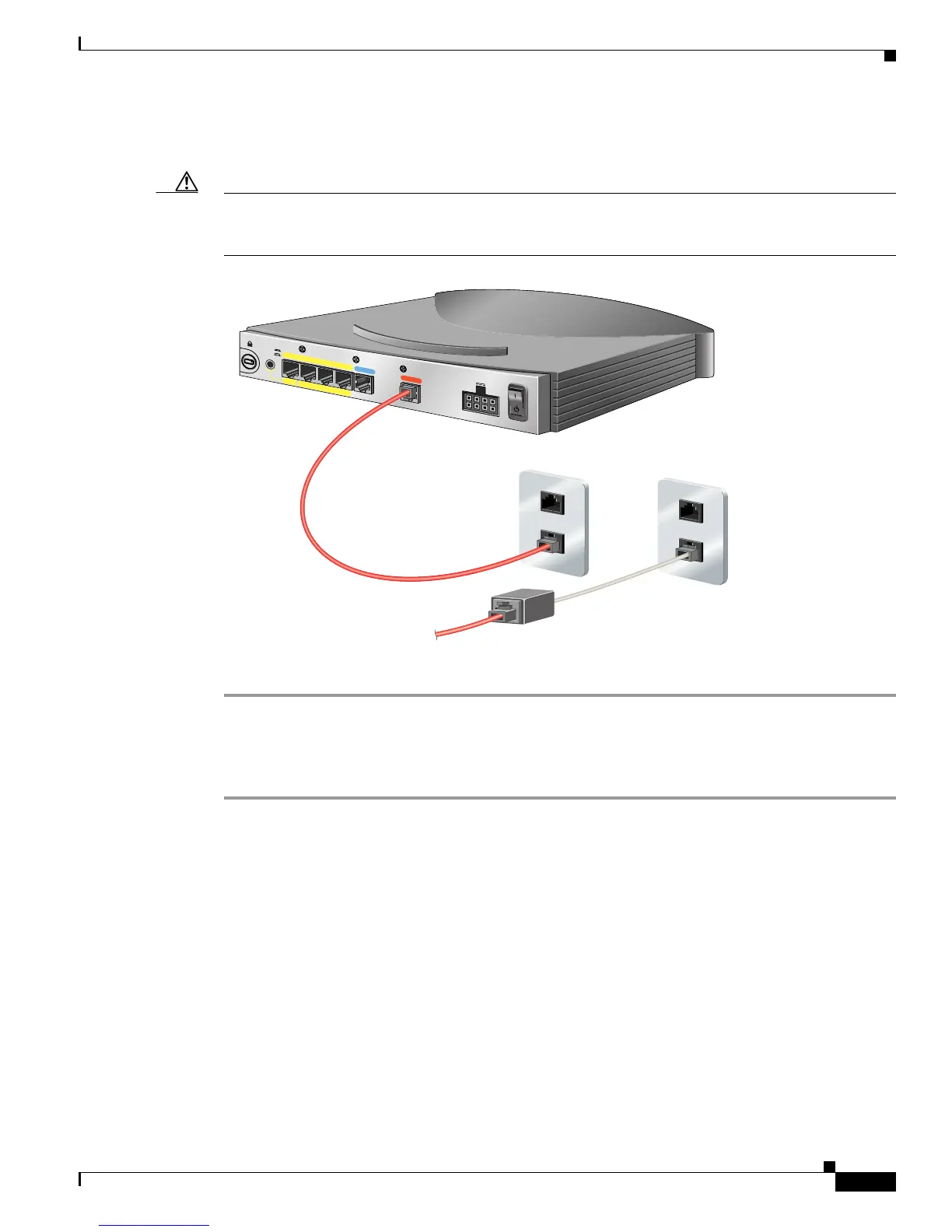

Step 1 Connect the red cable to the red IDSL port.
Step 2 Connect the other end of the cable to the IDSL wall jack. If your wall jack has an RJ-11 connector, attach
the RJ-45-to-RJ-11 adapter cable to the red cable, and then connect the RJ-11 connector to the IDSL wall
jack.
TO HUB
TO PC
Cisco 804 IDSL
4
3
2
1
E
THE
RN
ET 10 BA
S
E T
CONSOLE
IDSL
Cisco 804 IDSL Router
IDSL wall jack
RJ-45-to-RJ-11
adapter cable
+5, -24, -71 VDC
