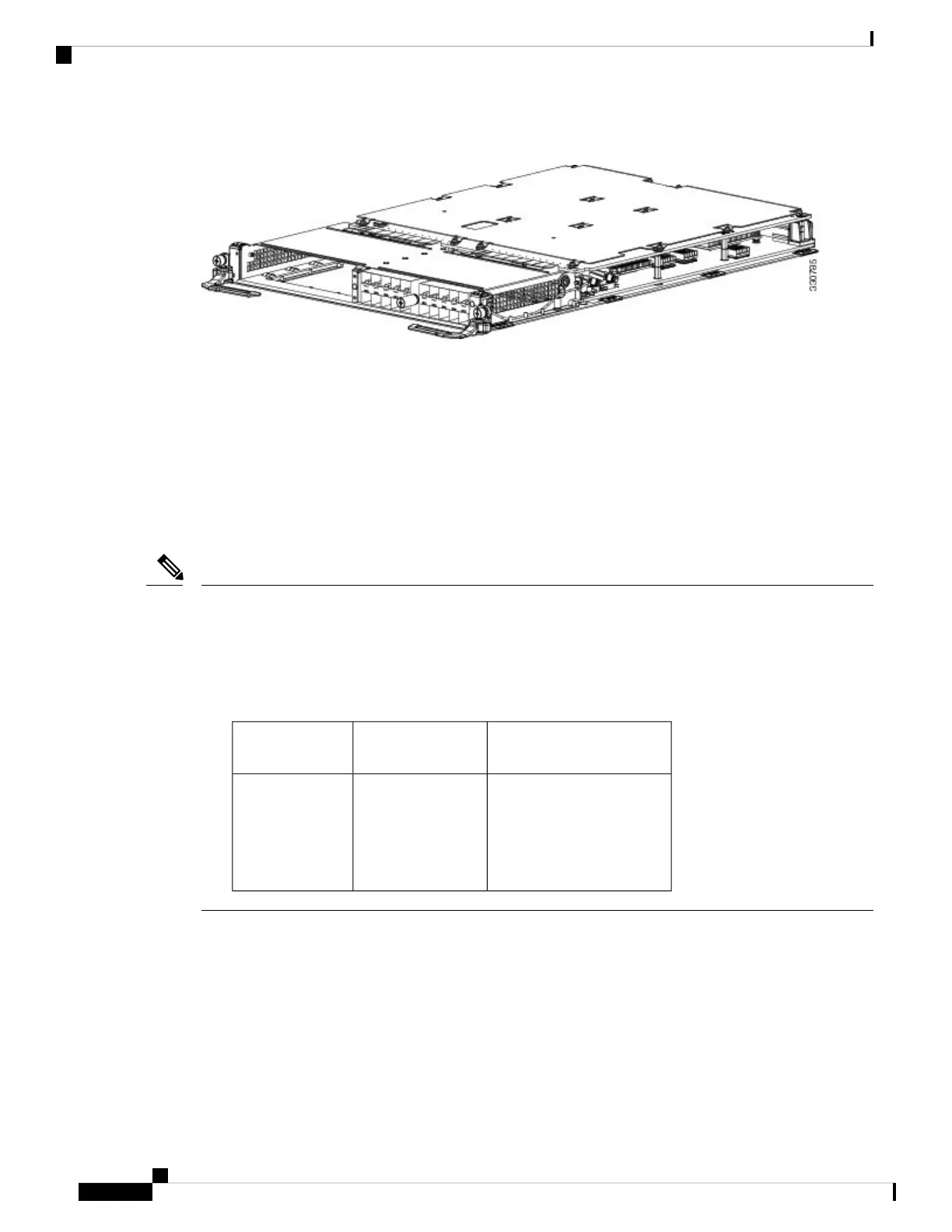

Figure 21: Modular Line Card
The modular line card provides two bays that support the following Modular Port Adapters (MPAs):
1-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2
The 1-Port 100-Gigabit Ethernet (GE) modular port adapter (MPA) supports LAN/WAN/OTN mode and
provides a single cage of coherent transceiver CFP2 module that operate at a rate of 100 Gbps. The 1-Port
100GE MPA is supported in both bay 0 and bay 1 of 400 Gigabit Modular Line Card (A9K-MOD400-SE,
A9K-MOD400-TR) and 200 Gigabit Modular Line Card (A9K-MOD200-SE, A9K-MOD200-TR).
This MPA supports 10X10 and 2X40 breakout configuration.
• V02 version of the CFP2-DCO module is introduced. V02 version of the optical module supports Staircase
FEC. Staircase FEC is an industry standard that enables high-speed optical communications. Version ID
information of the optical module can be obtained from the show inventory command output.
• This MPA does not support 1X40 breakout configuration.
• The CFP2 Digital Coherent Optics (DCO) are supported with the following hardware versions (VID):
MPA Hardware Version
(VID)
MPA PIDLine Card PID
V03A9K-MPA-1x100GEA9K-MOD200-TR
A9K-MOD200-SE
A9K-MOD400-TR
A9K-MOD400-SE
Note
The CFP2 cage on the MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED
indicates the status of the associated CFP2 port and the Status LED indicates the status for the MPA
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
46
Overview
1-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2
