• A920-CBL-GUIDE (left and right)—help in routing the cables from all components on the front panel
thereby enabling a proper cable-bending radius.
If the chassis is mounted using 19-inch brackets, you must assemble the cable guides before installing the
chassis on the rack.
Note
To install the cable guides, perform these steps:
Procedure
Step 1 Position the cable guide-left and cable guide-right against the front of the chassis and align the four screw
holes, as shown in the following figure.

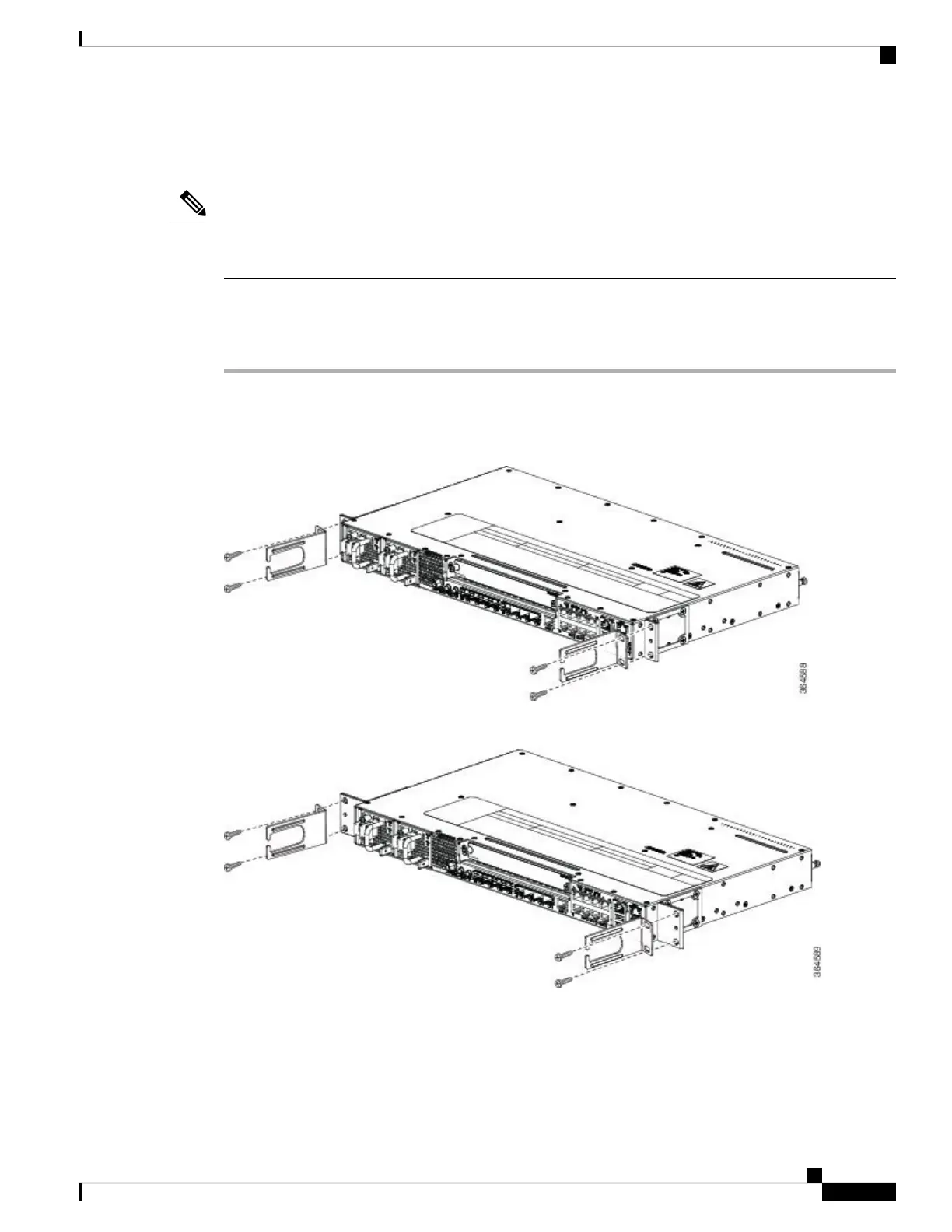

Figure 6: Cable Guide Installation For 19-inch Rack Brackets
Figure 7: Cable Guide Installation For ETSI Rack Brackets
Step 2 Secure the cable guides with the four M6x12mm screws supplied with the cable kit. The recommended
maximum torque is 3N-m.
Installing the Cisco ASR 920 Series Router
9
Installing the Cisco ASR 920 Series Router
Attaching the Cable Guides
