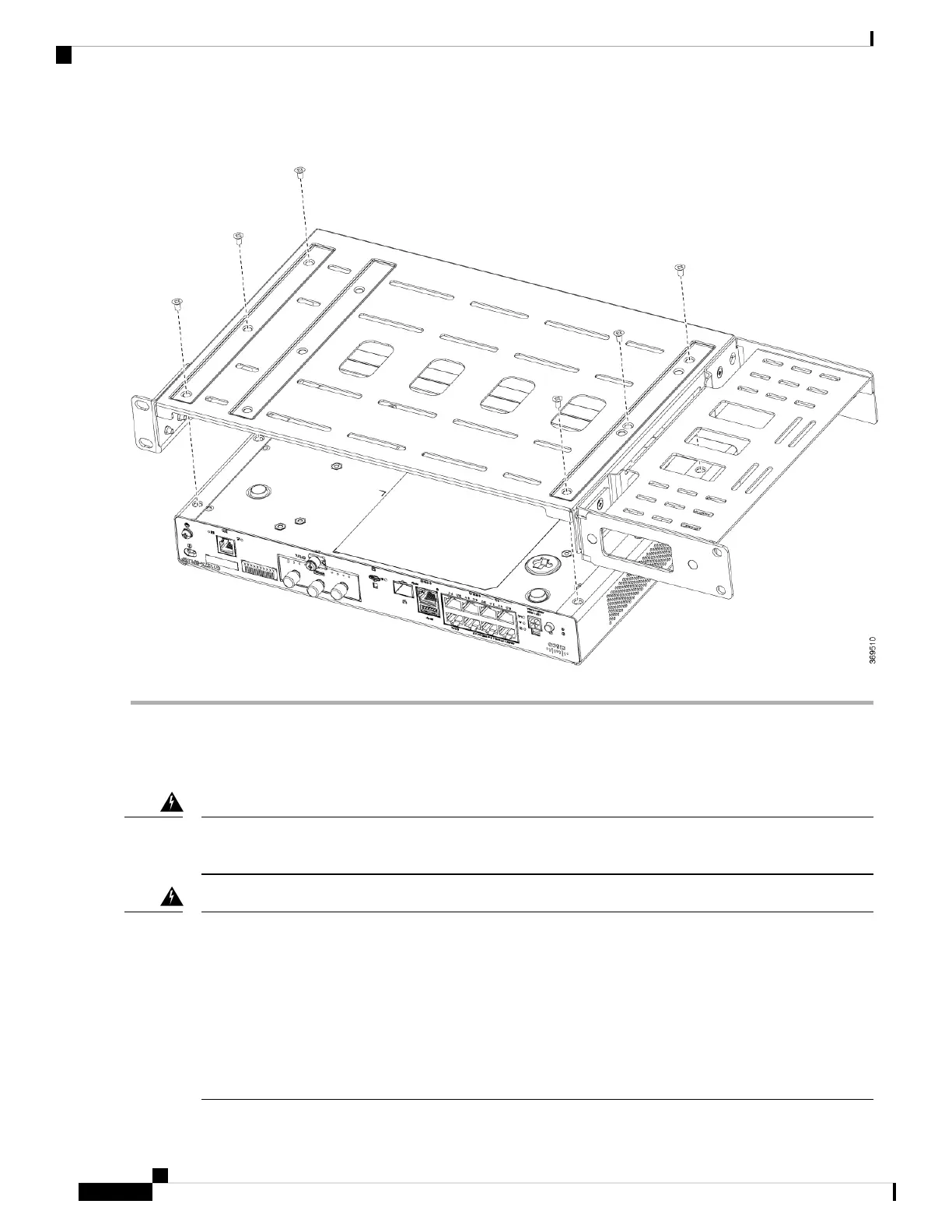

Figure 30: Bracket Installation for C1121-4Px, C1126-8PLTEP and C1128-8PLTEP
Mount the Router
Before mounting the router on to the rack, refer to the following safety warning statements:
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 1.75 in. (4.4
cm). Statement 1076.
Warning
• To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions
to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the
unit in the rack. Statement 1006.
Warning
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
34
Install and Connect the Router
Mount the Router

Cisco C1111x-8P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1ag
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports	8
Installed SFP modules quantity	4
Fast Ethernet (copper) ports quantity	1
Power over Ethernet (PoE) ports quantity	6
Security algorithms	3DES, 128-bit AES, 256-bit AES, DES
Authentication method	RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Routing protocols	VRRP
Data link protocols	HDLC
Supported protocols	IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD
Switching protocols	RFC 2338
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Supported network protocols	ACL, NAT, QoS, BFD, VRF Lite, IP SLA
Antenna type	External
Antennas quantity	2
Product color	Gray
LED indicators	Link, Status
Country of origin	Czech Republic
Flash memory	4000 MB
Certification	UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2
Internal memory type	DRAM
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	66 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	-4 - 149 °C
Operating temperature (T-T)	32 - 104 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Package type	Box
Package depth	508 mm
Package width	342.9 mm
Package height	162.052 mm
Package weight	3455.78 g
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	244 mm
Width	323 mm
Height	44 mm
Weight	1940 g
