Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.
Step 2 Confirm the router is turned off and disconnected from the power supply.
Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to
the router in the event of lightning or surges.
Step 4 Place the chassis on a flat surface.

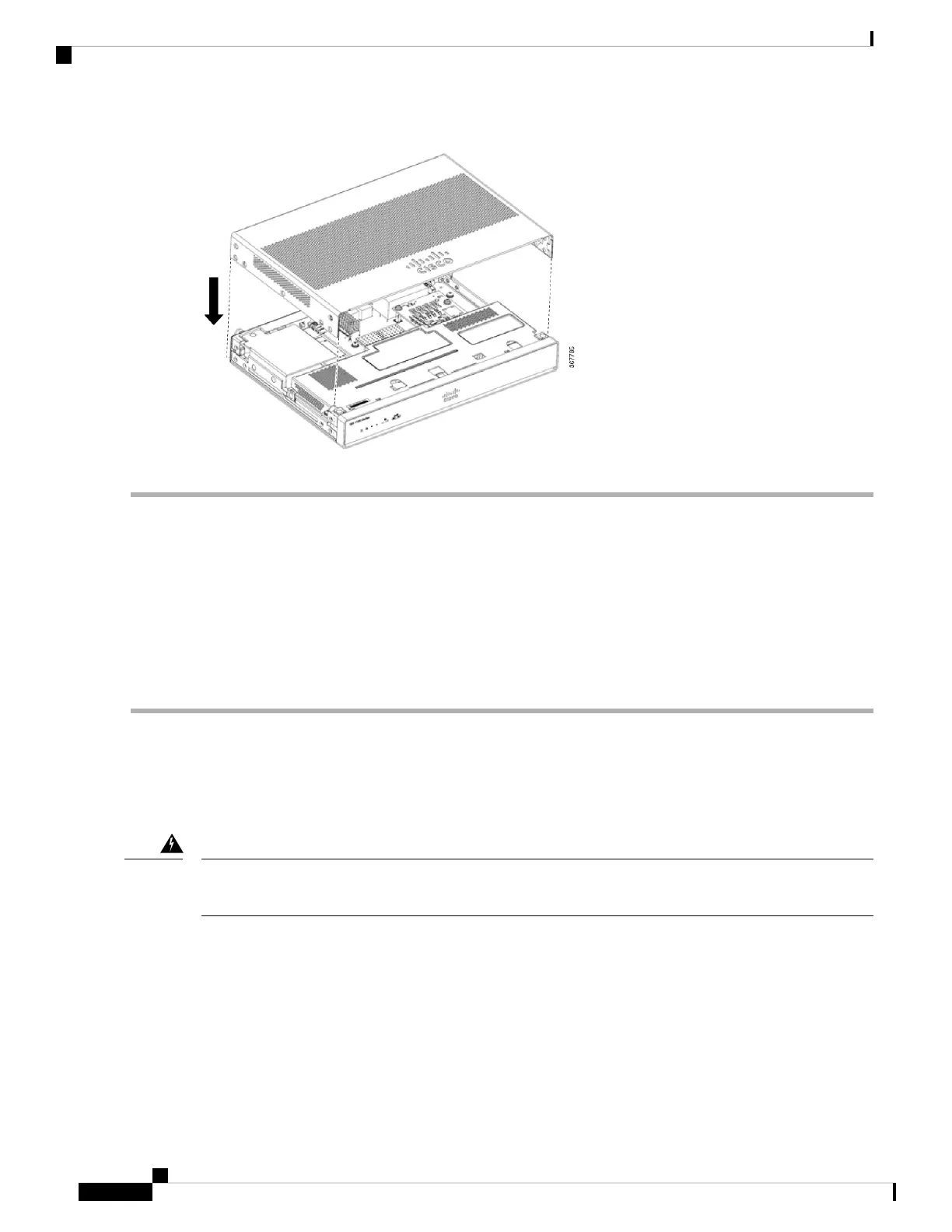

Step 5 Align hooks on the cover to slots on the chassis base and lower the cover onto chassis base.
Step 6 Slide the cover from the I/O side to the bezel side
Step 7 Install the fourteen screws on both sides of the chassis. Torque to 6-8 in-lbs.
External Modules
This section describes how to install external modules and FRUs in the Cisco 1000 Series Integrated Services
Routers. The information is contained in the following sections:
Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement
1030.
Warning
Locate External Slots for Modules
This section describes the locations of external modules on the router motherboard.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
60
Install and Upgrade Internal Modules and Field Replaceable Units
External Modules

Cisco C1111x-8P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1ag
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports	8
Installed SFP modules quantity	4
Fast Ethernet (copper) ports quantity	1
Power over Ethernet (PoE) ports quantity	6
Security algorithms	3DES, 128-bit AES, 256-bit AES, DES
Authentication method	RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Routing protocols	VRRP
Data link protocols	HDLC
Supported protocols	IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD
Switching protocols	RFC 2338
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Supported network protocols	ACL, NAT, QoS, BFD, VRF Lite, IP SLA
Antenna type	External
Antennas quantity	2
Product color	Gray
LED indicators	Link, Status
Country of origin	Czech Republic
Flash memory	4000 MB
Certification	UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2
Internal memory type	DRAM
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	66 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	-4 - 149 °C
Operating temperature (T-T)	32 - 104 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Package type	Box
Package depth	508 mm
Package width	342.9 mm
Package height	162.052 mm
Package weight	3455.78 g
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	244 mm
Width	323 mm
Height	44 mm
Weight	1940 g
