Rear Panel
The following figure shows the rear panel of the ESA C195. See Rear Panel LEDs, on page 13 for a description
of the LEDs.

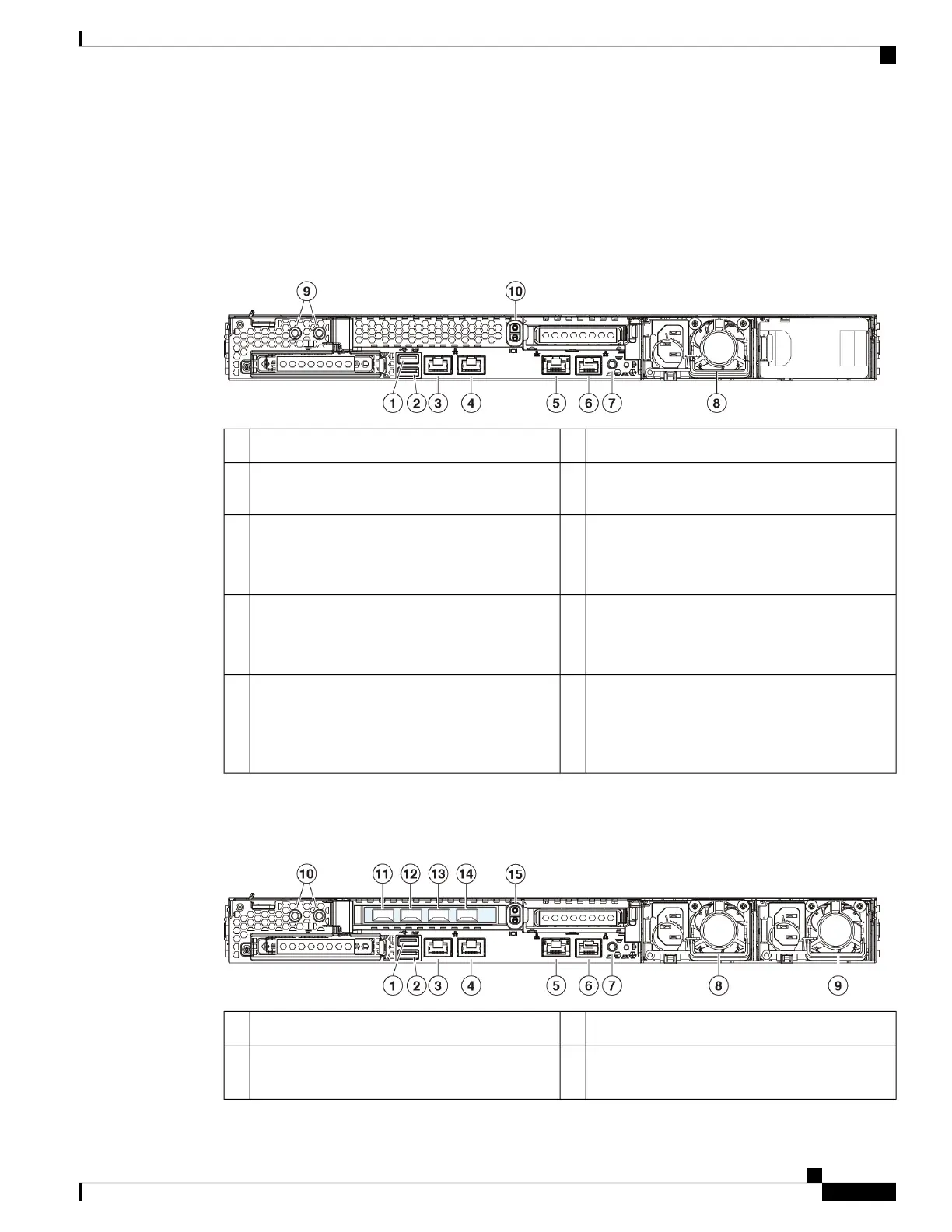

Figure 8: C195 Rear Panel
USB 3.0 Type A (USB 2)2USB 3.0 Type A (USB 1)1
Data Gigabit Ethernet interface (DATA 2)4Management Gigabit Ethernet interface (DATA
1)
3
Serial console port (Console)
RJ-45 connector that directly connects a computer
to the appliance.
6RPC port (RPC)5
One 770-W AC power supply (PSU 1)
You can order a second power supply to provide
redundancy as 1 + 1.
8Unit identification button7
Riser handle
Not supported
10Threaded holes for dual-hole grounding lug
Use is optional. The supported AC power supplies
have internal grounding, so no additional chassis
grounding is required.
9
The following figure shows the rear panel of the ESA C395 and C695. See Rear Panel LEDs, on page 13 for
a description of the LEDs.
Figure 9: C395 and C695 Rear Panel
USB 3.0 Type A (USB 2)2USB 3.0 Type A (USB 1)1
Gigabit Ethernet customer data interface (DATA
5)
4Management interface (MGMT)
Restricted to management use only
3
Cisco Email Security Appliance C195, C395, C695, and C695F Hardware Installation Guide
11
Overview
Rear Panel
