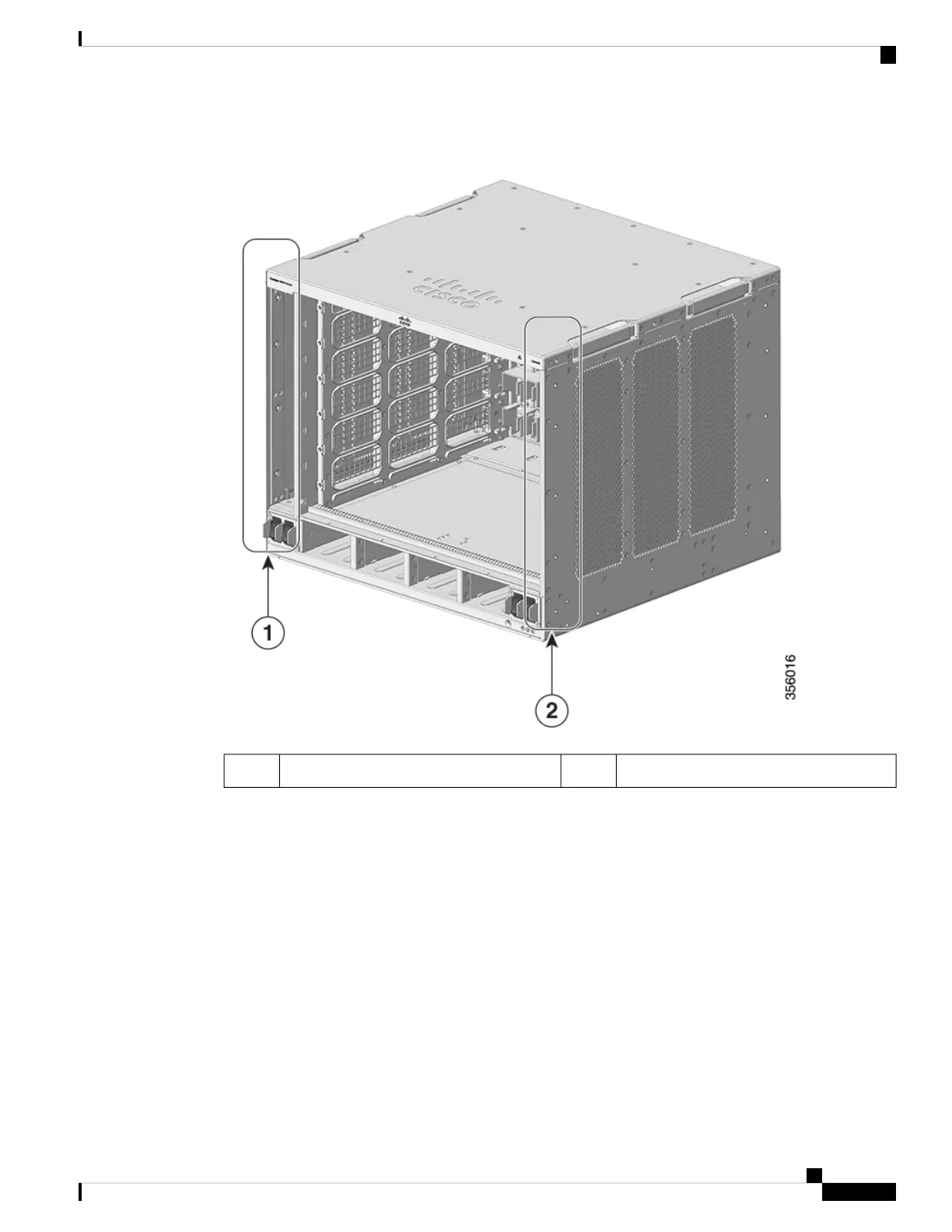

Figure 14: Chassis Without L-Brackets
Chassis without right L-bracket2Chassis without left L-bracket1
Step 2 Unpack the L-brackets from the shelf kit.
Step 3 Using the M4 x 8 mm Phillips flat head screws in the shelf kit, secure the L-brackets to the front-left and
front-right sides of the chassis (four on each side).
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
39
Installing the Switch
Installing the Shelf Kit L-Brackets
