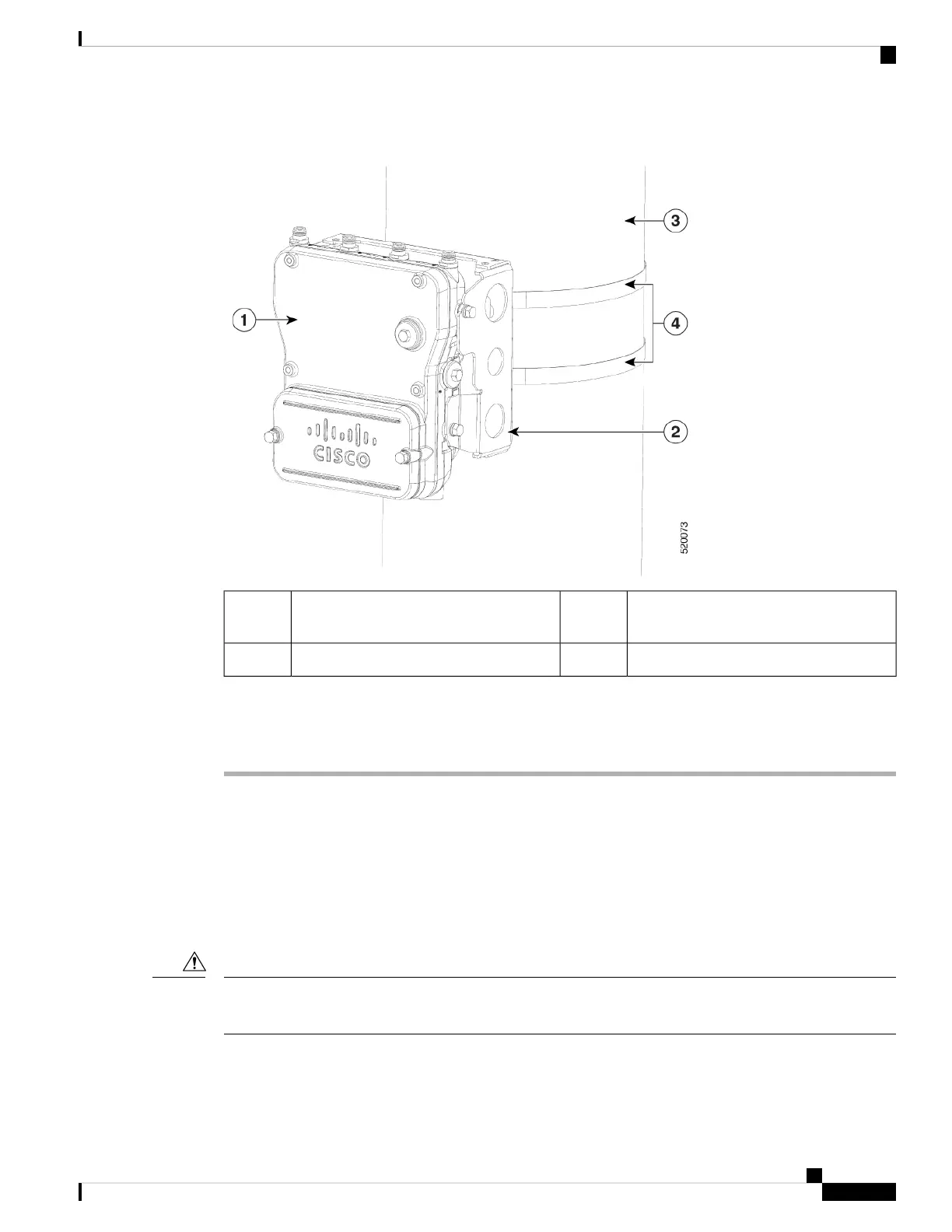

Figure 12: Assembled Access Point Hanging in Mounting Bracket

Pole (wood, metal, or fiberglass)2 to 16 in.

(5.1 to 40.6 cm) diameter

3Access point1

Stainless steel mounting straps4Mount bracket2

Step 14 When using the Cisco Aironet Dual-Band Omnidirectional Antennas, connect them to the access point.

Hand-tighten the antennas to the access point.

Step 15 Continue with Grounding the Access Point , on page 19 and Powering the Access Point, on page 20.

Working with the Access Cover

This section details opening and closing the access cover of the access point.

Opening the Access Cover

The access cover must not be opened unless the area is considered non-hazardous and the AP has been powered

off.

Caution

You need to open the access cover to access the AC or DC terminal block, the Ethernet ports, and when you

are installing the fiber-optic SFP module.

Installing the Access Point

Working with the Access Cover
