Non-Cisco Antennas

Cisco does not support any third-party antennas. RF connectivity and compliance of third party antennas is

the user’s responsibility. Cisco does not recommend any third-party antennas, and Cisco Technical Assistance

Center will not be able to provide any support for third-party antennas. Cisco’s FCC Part 15 compliance is

only guaranteed with Cisco antennas or antennas that are of the same design and gain as Cisco antennas.

Grounding the Access Point

The access point must be grounded before connecting power.

In all outdoor installations you must follow these instructions to properly ground the case:

Procedure

Step 1 If using insulated 6-AWG copper ground wire, strip the insulation as required for the grounding lug.

Step 2 Use the appropriate crimping tool to crimp the bare 6-AWG copper ground wire to the supplied grounding

lug.

The grounding lug and hardware used must comply with local and national electrical codes.

Note

Step 3 Open the anti-corrosion sealant (supplied), and apply a liberal amount over the metal surface, called the Ground

Pad, where the ground strap screw holes are located (see the following figure).

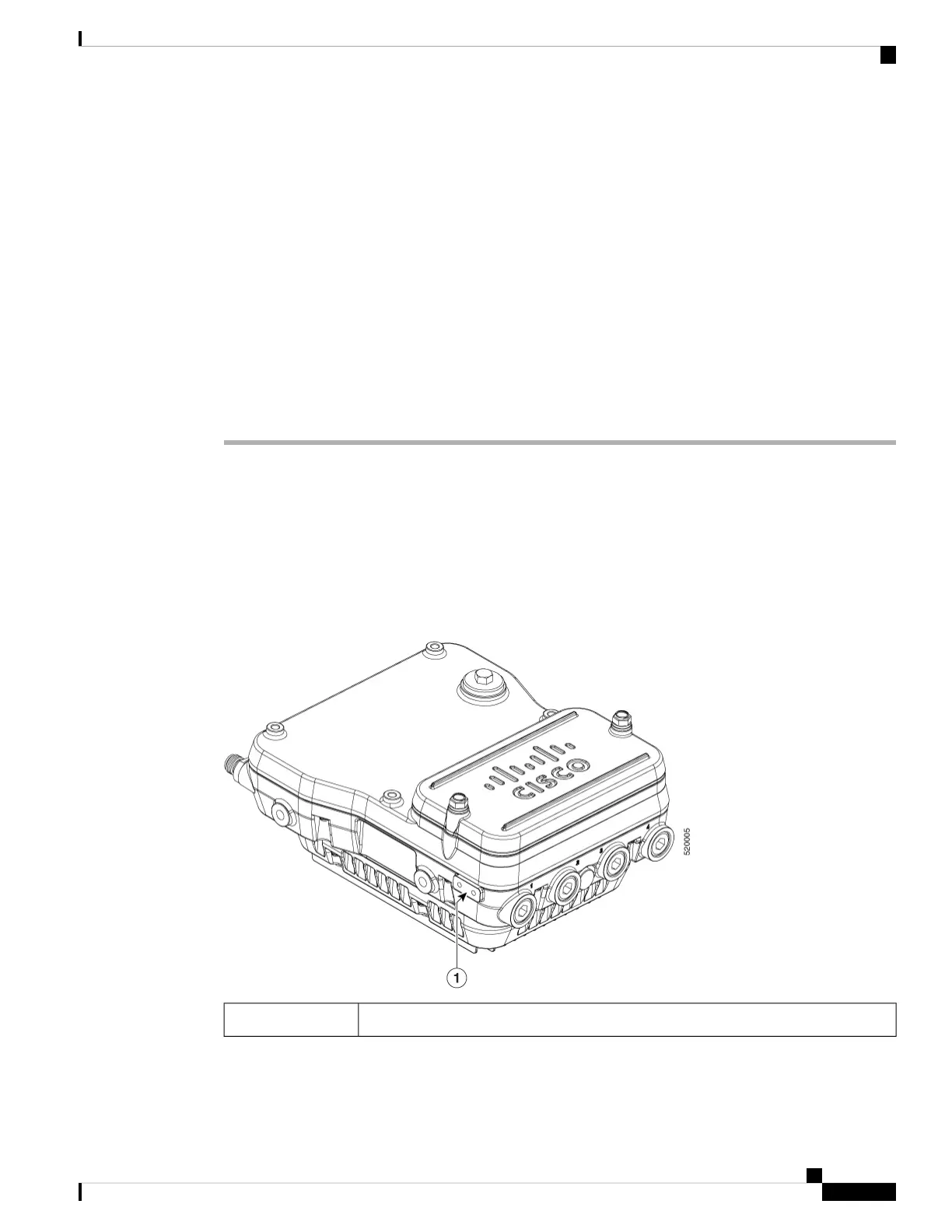

Figure 14: Position of the Ground Pad on the Right Side of the AP

Ground pad, where the ground strap screw holes are located.1

Step 4 Connect the grounding lug to the access point grounding screw holes using the supplied two Phillips head

screws (M4 x10 mm) with lock washers. Tighten the grounding screw to 22 to 24 lb-in (2.49 to 2.71 Nm).
