Network Module LEDs

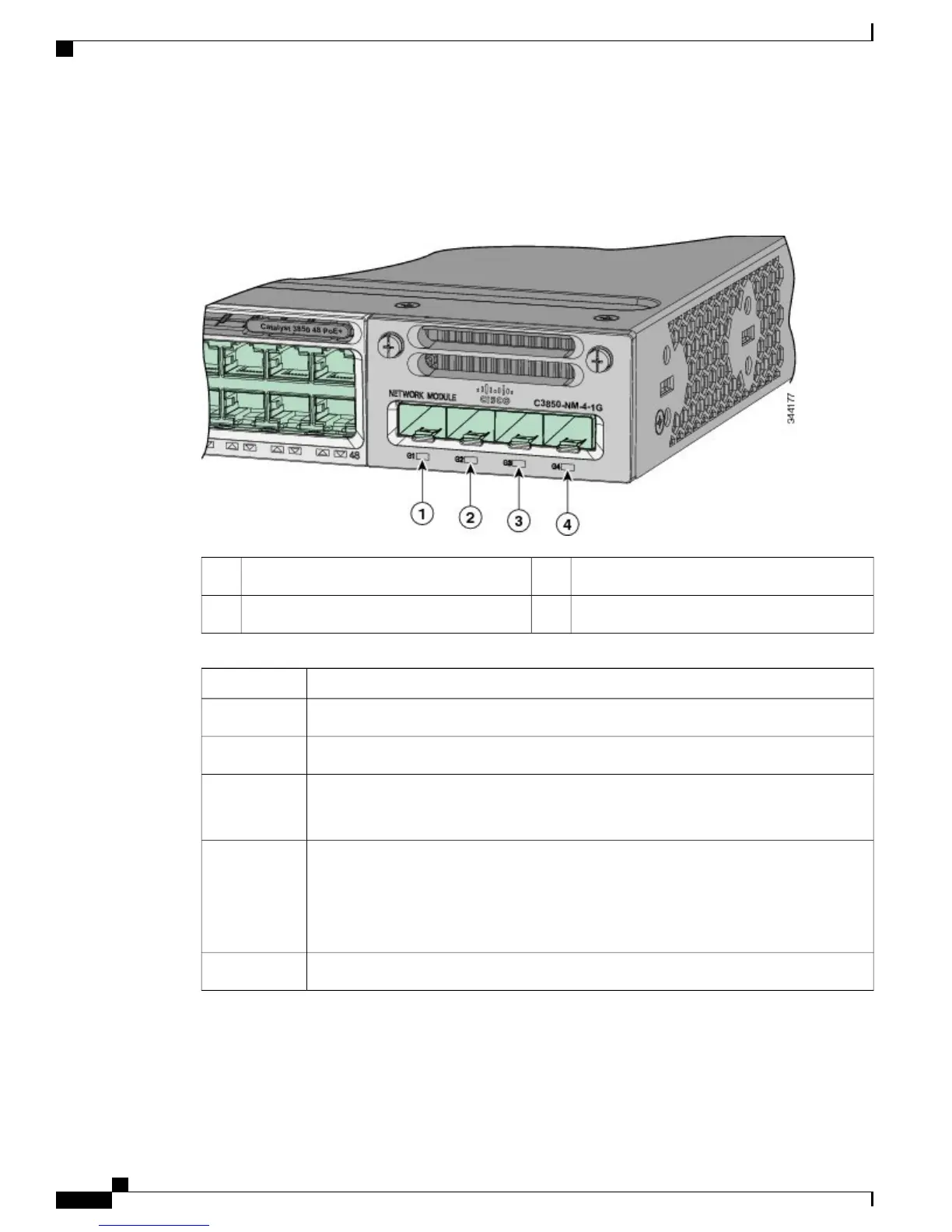

Figure 10: Network Module LEDs
G3 LED3G1 LED1
G4 LED4G2 LED2
Network Module Link StatusColor
Link is off.Off
Link is on; no activity.Green
Activity on a link; no faults.
The LED will blink green even when there is very little control traffic.Note
Blinking green
Link is off due to a fault or because it has exceeded a limit set in the switch software.
Link faults occur when noncompliant cabling is connected to an SFP or SFP+
port. Use only standard-compliant cabling to connect to Cisco SFP and SFP+
ports. You must remove from the network any cable or device that causes a
link fault.
Caution
Blinking amber
Link for the SFP or SFP+ has been disabled.Amber
Catalyst 3850 Switch Hardware Installation Guide
22 OL-26779-05
Product Overview
LEDs
